5. Technical Data
•
•
The RS485 address of the inverter is unique, and defined at the factory.
5

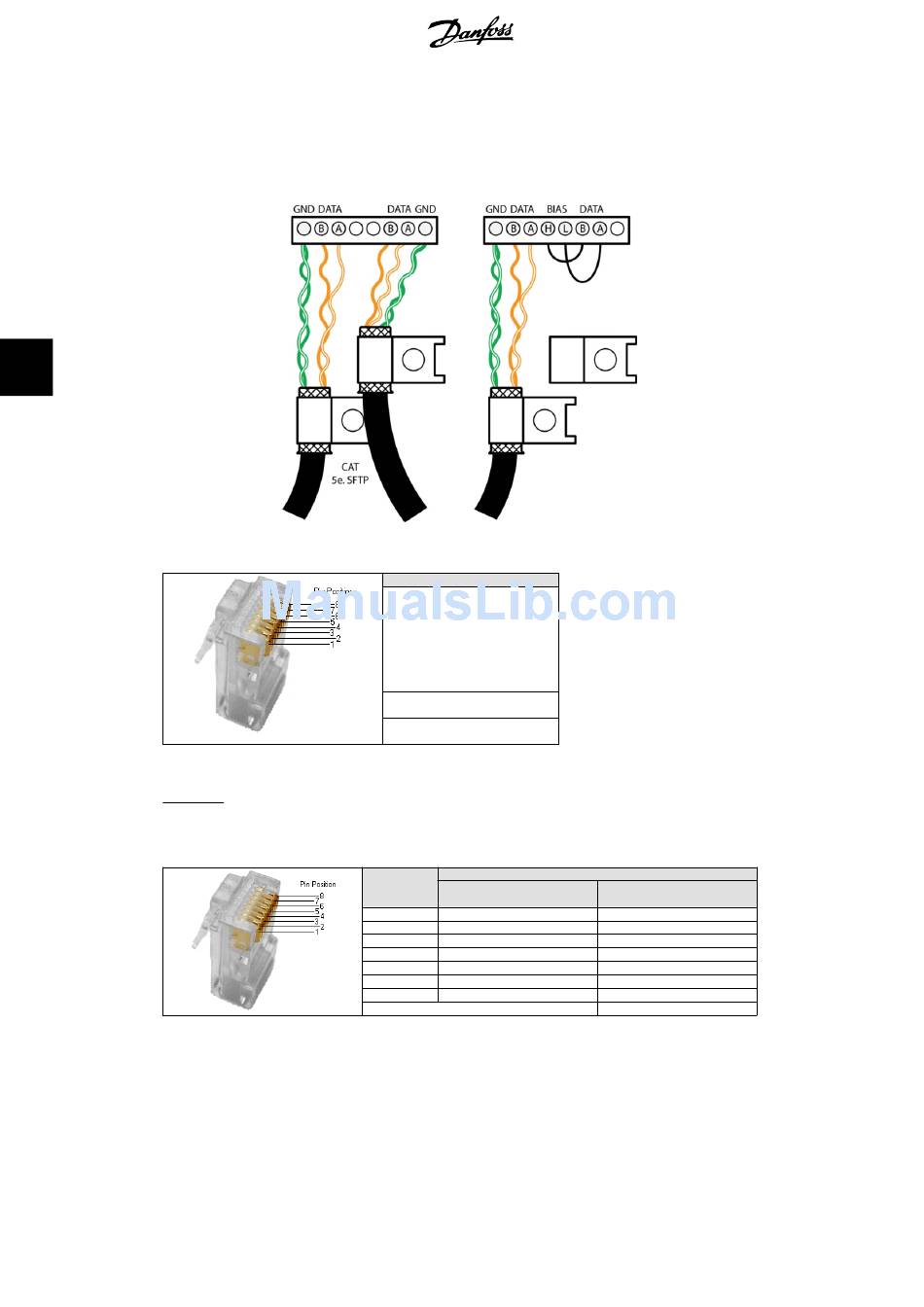

Illustration 5.8: RS485 Communication Detail - Cat 5 T-568A
Table 5.10: RJ45 Pinout Detail for RS485
Ethernet
Ethernet connection is available for TLX Pro and TLX Pro+ variants only.
Table 5.11: RJ45 Pinout Detail for Ethernet
32
Connect Bias L to RX/TX B
Connect Bias H to RX/TX A
Pinout RS485
1. GND
2. GND
3. RX/TX A (-)
4. BIAS L
5. BIAS H
6. RX/TX B (+)
7. Not connected
8. Not connected
Bold = Compulsory, Cat5 cable
contains all 8 wires
For Ethernet: 10Base-TX and
100Base-TX auto cross over
Pinout
Ethernet
1. RX+
2. RX
3. TX+
4.
5.
6. TX-
7.
8.
Colour Standard
Cat 5 Cat 5
T-568A T-568B
Green/white Orange/white
Green Orange
Orange/white Green/white
Blue Blue
Blue/white Blue/white
Orange Green
Brown/white Brown/white
Brown Brown
