Operation
for washers
LOGI CONTROL
GIRBAU, S.A.
Crta de Manlleu, km. 1
08500 VIC (Barcelona) • SPAIN
Tel. 34 93 8861100
Fax 34 93 8860785
girbau@girbau.es
www.girbau.com
For USA & CANADA:
CONTINENTAL GIRBAU Inc.
2500 State Road 44
WI 54904 Oshkosh • USA
Tel. 1(920) 231-8222
Fax 1(920) 231-4666
info@cont-girbau.com
www.cont-girbau.com
Instructions
LOGI
control
Serial #
Shipping date
Cod. 429266
Rev. 01/0206
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GIRBAU LOGI CONTROL
Summary of Contents for GIRBAU LOGI CONTROL
-
Page 1: Operation Instructions

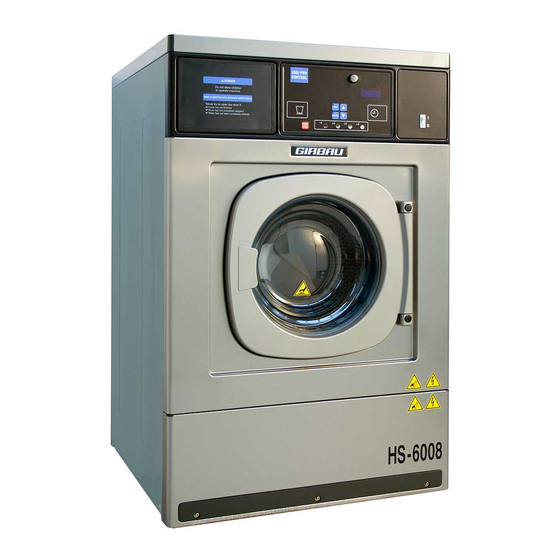

Serial # Shipping date Operation Instructions for washers LOGI CONTROL GIRBAU, S.A. Crta de Manlleu, km. 1 08500 VIC (Barcelona) • SPAIN Tel. 34 93 8861100 Fax 34 93 8860785 girbau@girbau.es LOGI www.girbau.com control For USA & CANADA: CONTINENTAL GIRBAU Inc. - Page 2 Model From serial # High Speed HS-6008 2.080.001 HS-6013 2.110.001 HS-6017 2.120.001 1.430.001 EH020 EH030 1.460.001 EH040 1.470.001 Medium Speed MS-610 2.020.001 MS-613 2.030.001 MS-617 2.040.001 MS-623 2.050.001 EM025 1.370.001 EM030 1.380.001 EM040 1.390.001 EM055 1.400.001 Cod. 429266 Rev. 01/0206...
-
Page 3: Safety Instructions
Safety Instructions WARNING! IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire, electric shock or injury to persons when using the washer, follow basic precautions, including the following: 1. READ all instructions before using the washer and KEEP them in a prominent location for customer use. 2. - Page 4 (1) Qualified Personnel refers to anyone who has read the Instructions Handbooks, has been trained and has a thorough understanding of the machine’s operation (2) An Authorised Service Technician (AST) is one that has successfully completed training on the product by Girbau S.A, or a Girbau, S.A. Distributor.
- Page 5 Safety Instructions HAZARD SYMBOLS USED ON WASHER LABELS: Electric risk High temperature risk. Protection guard for electric Operate with caution. components. Use appropriate protections. Mechanical risk Risk of harmful vapours inhalation. Protection guard for moving parts Keep dispenser box closed. Use appropriate protections.
- Page 6 5. If machine is left idle for long periods of time, it must be PROTECTED from humidity and temperature variations. 6. FOLLOW the fabric care instructions supplied by the manufacturer, GIRBAU S.A., REFUSES ANY RESPONSIBILITY IN CASE OF TEXTILE WEAR AND TEAR.
-
Page 7: Table Of Contents
5.8 General revision ........................23 6. SERVICE REMOVAL ......................24 6.1 Dismantling ........................... 24 NOTE The contents of chapter 3. ADVANCED USE MODE, can be consulted at the manufacturer’s website: www.girbau.com, (USA/CANADA: www.cont-girbau.com), see Advanced Operation Instructions for LOGI CONTROL.. Cod. 429266 Rev. 01/0206... -
Page 8: Characteristics
• Great versatility in individually modifying the content of each program. (More information about the Programming Mode in the manual of Advanced Operation Instruction for the LOGI CONTROL on the manufacturer website: www.girbau.com), (USA/CANADA www.cont-girbau.com). •... -
Page 9: Control Panel
Operation 2. OPERATION 2.1. Control panel fig. 1 START/STOP Program start and stop. Wash program selection ADVANCED USE mode. Begin program delay (option) ACCEL Modification of the program in progress ON/OFF Switch. LEDs indicating the phase of the program in progress. Display. -
Page 10: Loading The Washing Machine
Operation 2.2 Loading the washing machine Group the fabrics to be washed in homogeneous loads, trying to reach the nominal value of the load. Empty all pockets, fasten buttons, close zippers and remove accessories that are not machine-washable. It is not recommend mixing whites with other colours. -
Page 11: Starting A Program
Operation 2.4 Starting a program • Close the door. The door report on display changes to SEL. (if SEL does not appear on the display, repeat the door closing operation). • Select the desired program with the program selection keys. (For information on the characteristics of each program, refer to section 2.6. -
Page 12: Program Application And Contents
- - - - - - - - - - - - The parameters that appear on the chart can be modified: See the Advanced Operation Instructions LOGI www.girbau.com, CONTROL at the manufacturer’s website: www.cont-girbau.com (USA/CANADA Cod. 429266 Rev. 01/0206... - Page 13 - - - - - - - - - - - - The parameters that appear on the chart can be modified: See the Advanced Operation Instructions LOGI www.girbau.com CONTROL at the manufacturer’s website: www.cont-girbau.com (USA/CANADA Cod. 429266 Rev. 01/0206...
- Page 14 - - - - - - - - - - - - The parameters that appear on the chart can be modified: See the Advanced Operation Instructions LOGI www.girbau.com CONTROL at the manufacturer’s website: www.cont-girbau.com (USA/CANADA Cod. 429266 Rev. 01/0206...
-
Page 15: Interpretation Of The Program Tables
Operation 2.6.2. Interpretation of the program tables: symbols and values. SYMBOL OPTION DESCRIPTION Estimated program time Minimum program time based on a machine with hot water supply and without heating. Time in minutes. Phase number. The phase indicated with grey background belongs to the wash phase. Bath level Low level Medium level... -
Page 16: Stop Modes
Operation 2.7 Stop modes 2.7.1 End of cycle The buzzer and the LED indicating the end of the cycle inform that the program has finished and the door lock is released. 2.7.2 Interrupting a program A. Key START/STOP . Interrupting a washing program. STOP appears on the display. At the end of the safety delay, the buzzer and the LED indicating the end of cycle inform that the program has finished and the door lock is released. -
Page 17: Unbalance Control
(clock). If the machine did not come with this kit, you can install one easily. Contact your distributor. Before the first use, and each time there is a time change, verify and/or adjust the time on the clock. (See ADVANCED USE MODE, sect. 2.5 at www.girbau.com) (USA/CANADA: www.cont-girbau.com) 2.9.1 Delaying a program. •... -
Page 18: Troubleshooting
HOUR Adjustment of the system time Information on the menus, details and access mode: refer to the Advanced Operation Instructions for LOGI CONTROL, at the manufacturer’s website: www.girbau.com. (USA/CANADA www.cont-girbau.com). 4. TROUBLESHOOTING Some of the washing machine’s operating problems can be solved through the intervention of the user. -
Page 19: System Alarms
Troubleshooting 4.2 System alarms The safety of the washing machine use requires that the machine itself precisely monitor any possible anomalies. These anomalies are reported in the form of alarms. On the washing machine’s display, the ALM message will appear, alternating with the specific alarm report. Below are possible causes of alarms and the steps to follow. -
Page 20: Maintenance
Maintenance 5. MAINTENANCE Before performing any work on the washing machine, disconnect and mechanically lock the external switch, and close and mechanically lock the manual water inlet valves. Check the temperature of the parts to be handled, to avoid the risk of burns. The dispenser may contain residues of chemical products. -
Page 21: Cleaning The Dispenser
Maintenance 5.5. Cleaning the dispenser • Disconnect and mechanically lock the external switch. Close and mechanically lock the manual water inlet valves • Clean the dispenser by using a cloth or sponge dampened with water. Warm water makes cleaning easier. Never use abrasive products or tools that could scratch or damage the dispenser. Once the dispenser cleaning and assembly operations are finished: •... -
Page 22: Cleaning The Drain Pump
Maintenance VERY IMPORTANT The protection of dispenser seal is necessary to prevent humidity and corrosion inside the machine and the premature damage of the electrical and electronic circuits of machine control. 5.6. Cleaning the drain pump (Drain pump washers) Only by the Authorised Technical Service Required tools: Disassembly of the lower front panel: Torx. -
Page 23: Revising The Safety Mechanisms
Maintenance 5.7. Revising the safety mechanisms. MONTHLY check the safety mechanisms on the door lock and the emergency stop. CAUTION Use great prudence in checking the safety mechanisms. Carry out the verification described in following while the drum is turning at washing speed and never at a higher speed. -
Page 24: Service Removal
Service Removal 6. SERVICE REMOVAL • Removing the washer from service requires a specialised company. • Never release the washer unsecured. • To release the washer and subsequent transportation, refer to the same specifications and cautions indicated for Installation. When removing the machine from service: •...
