5.5. Cleaning the dispenser

•
Disconnect and mechanically lock the external switch. Close and mechanically lock the manual water
inlet valves
•
Clean the dispenser by using a cloth or sponge dampened with water. Warm water makes cleaning
easier. Never use abrasive products or tools that could scratch or damage the dispenser.
Once the dispenser cleaning and assembly operations are finished:
•
Connect the external switch and open the manual water inlet valves.
•
Start a washing program that uses a bleaching agent and softener and check that both compartments
drain properly.
WASHERS WITH FRONT DISPENSER.
Tools required:
Disassembly of the fastening tabs: Torx. T20 screwdriver.
Disassembly and assembly:
•

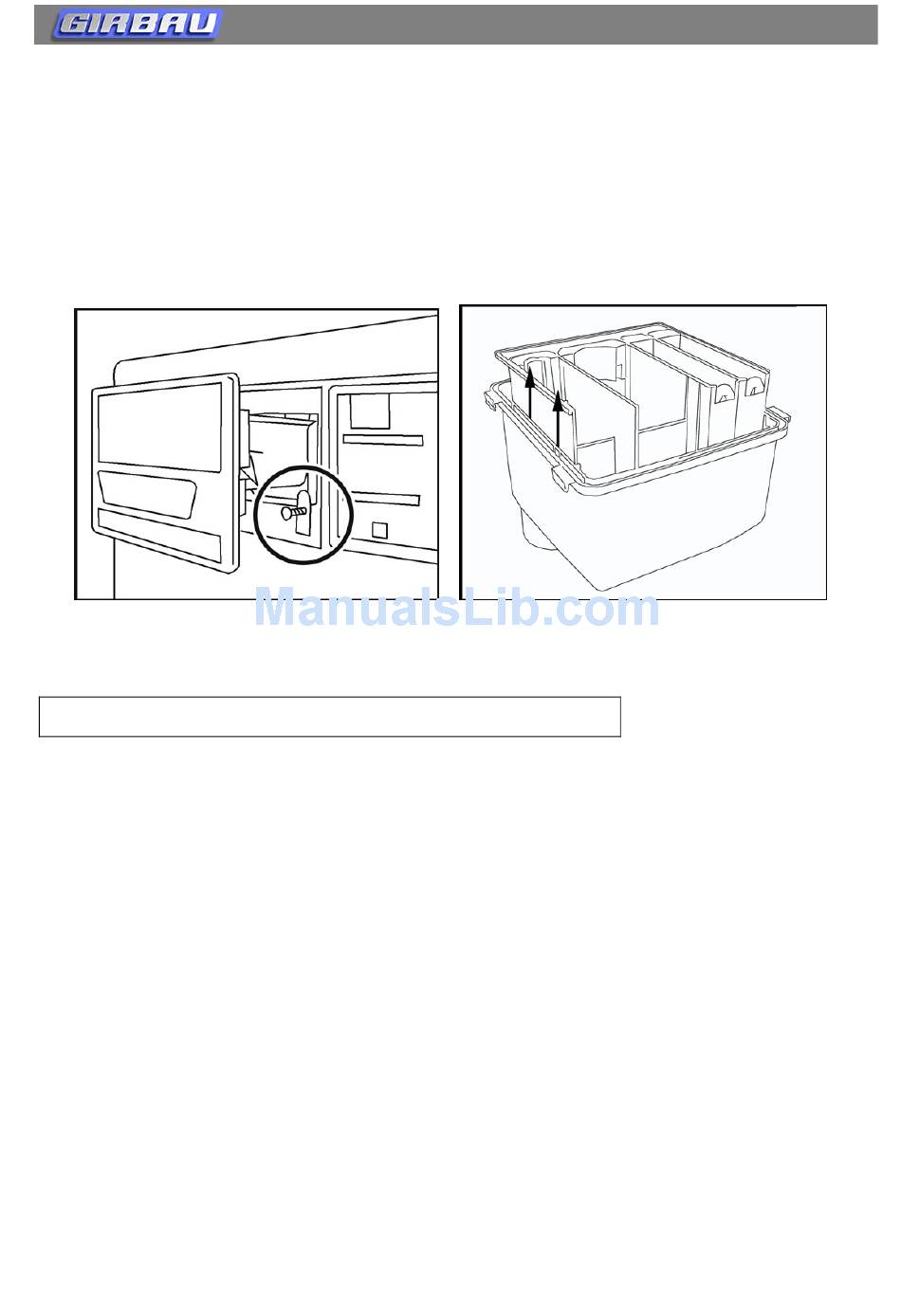

Open the dispenser drawer and loosen the screws on the retaining tabs visible along the bottom (fig. 4).
•
Completely remove the drawer and dismount the siphon tubes from the liquid compartment by pulling
them upwards.
Once the cleaning operations are over:
•
Replace the siphon tubes and place the drawer in its housing.
•
Remount the fastening tabs and check that the drawer can not be completely removed.
WASHERS WITH TOP DISPENSER.
Disassembly
•
Open the fastening clasps on the top cover. The dispenser is now accessible.
•
Dismount the siphon tubes from the liquid compartment by pulling them upwards.
•
To clean the lower basin, remove the leak seal and separate the two dispenser bodies by separating the
side lips (fig. 5).
Once the cleaning operations are over:
•
Remount the two dispenser bodies and check that the side lips fasten both pieces.
•
Replace the siphon tubes.
•
Check that the dispenser is set well in its bracket.
•
Check condition of top cover seal. If seal is damaged, deformed or has lost elasticity, call Service for
replacement.
•
Replace the seal. Assemble the top cover. Close the locks.
