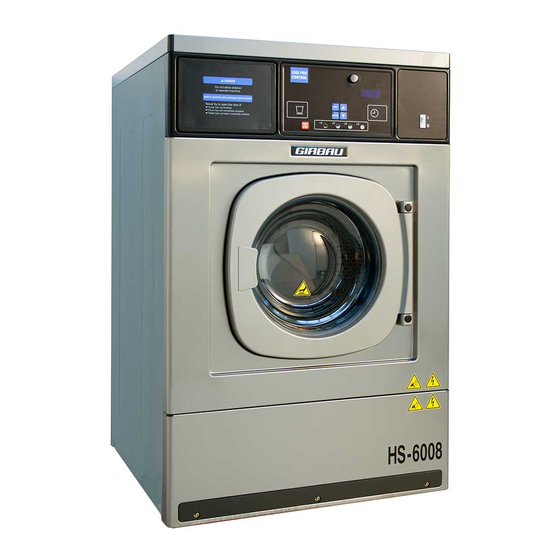

GIRBAU HS-6008 Advanced Operation Instructions
  1. Manuals
  2. Brands
  3. GIRBAU Manuals
  4. Washer
  5. HS-6008
  6. Advanced operation instructions

GIRBAU HS-6008 Advanced Operation Instructions

Coin control
Hide thumbs Also See for HS-6008:

Advertisement

Table of Contents

See also: Installation Manual
Advanced Operation
for washers
COIN CONTROL
GIRBAU, S.A.
Crta de Manlleu, km. 1
08500 VIC (Barcelona) • SPAIN
Tel. 34 93 8861100
Fax 34 93 8860785
girbau@girbau.es
www.girbau.com
For USA & CANADA:
CONTINENTAL GIRBAU Inc.
2500 State Road 44
WI 54904 Oshkosh • USA
Tel. 1(920) 231-8222
Fax 1(920) 231-4666
info@cont-girbau.com
www.cont-girbau.com
COIN
Advanced
Instructions
Cod. 429704
Rev. 02/0606

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-6008 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GIRBAU HS-6008

Summary of Contents for GIRBAU HS-6008

  • Page 1 08500 VIC (Barcelona) • SPAIN Tel. 34 93 8861100 Fax 34 93 8860785 girbau@girbau.es COIN www.girbau.com Advanced For USA & CANADA: CONTINENTAL GIRBAU Inc. 2500 State Road 44 WI 54904 Oshkosh • USA Tel. 1(920) 231-8222 Fax 1(920) 231-4666 info@cont-girbau.com www.cont-girbau.com Cod. 429704...
  • Page 2 Model From serial # High Speed HS-6008 2.080.884 HS-6013 2.110.200 HS-6017 2.120.320 1.430.001 EH020 EH030 1.460.021 EH040 1.470.060 Medium Speed MS-610 2.020.001 MS-613 2.030.001 MS-617 2.040.001 MS-623 2.050.001 EM025 1.370.001 EM030 1.380.001 EM040 1.390.001 EM055 1.400.001 Cod. 429704 Rev. 02/0606...

  • Page 3: Table Of Contents

    1. DESCRIPTION, 2. OPERATING INSTRUCTIONS, section of chapter 3. MODIFICATION MODE, 5. TROUBLESHOOTING, 6. MAINTENANCE and 7. SERVICE REMOVAL, see Operation Instructions for COIN CONTROL, supplied with the washer or request it to the manufacturer: girbau@girbau.es, (USA/CANADA: info@cont-girbau.com Cod. 429704 Rev. 02/0606...

  • Page 4: Cod. 429704 Rev

    Advanced Mode 3. MODIFICATION MODE. The MODIFICATION mode offers some menus, which allow the modification of programs contents, the price management of the programs, the modification of operating parameters … The MODIFICATION mode is made up of eight menus defined in the following chart: MENU PURPOSE SECTION...
  • Page 5 Advanced Mode 3.2.1. Master program ROTATION EXTRACT EXECUTION LEVEL TEMP. DOSING ROTATION EXTRACT TIME TIME PHASE C / F Y / N 1…3 n.p. 1...3 1...6 1...3 n.p. 2...3 0 ... 80 1…3 1...3 1...20 1 / 2 n.p. 2 32 ...

  • Page 6: Em025.

    Advanced Mode 3.2.2. Default program contents. CE Configuration HS & MS models Pr - 1. S 31 min. Pr - 2. C 31 min. UPER WASH OLOR FAST PRESS - - - - - - - - - - - - - - - - - - - - - - - -...
  • Page 7 Advanced Mode 3.2.4. Default program contents. USA Configuration Models EH020 & EM025. SP-I, SP-2, SP-3. Pr - 1. 32 min. Pr - 2. W 28 min. UPER WASH HITE - - - - - - - - - - - - - - - - - - - - - - - -...

  • Page 8: Phases Definition

    Advanced Mode 3.2.6. Phases definition. PHASES DEFINITION Pre-wash. Optional execution phase. Washing. Obligatory execution phase. The mixing of hot and cold water is permitted and/or water heating. First Rinse. Obligatory execution phase. Dosing of bleach included. Second Rinse. Optional execution phase. Third Rinse.

  • Page 9: Modification Of A Program

    Advanced Mode 3.2.8. Modification of a program Access the MODIFICATION mode (section 3.1) The display will indicate Pro. Press the 1 key to access the PROGRAMMING menu. The display will indicate Pr-1. Ready to modify program 1. The 2 / 4 keys are used to select another program. Press the 1 key to access the modification of the displayed program.
  • Page 10 Advanced Mode Dosing. Permits to activate or deactivate dosing that appear in the master table. OPTIONS MEANING Without dosing Dosing of pre-wash detergent Dosing of wash detergent Dosing of bleach Dosing of softener or neutraliser n.p. Not possible to program dosing in phase Dosings d-1 and d-2 cannot be modified.

  • Page 11: Ms-610 2

    Drain + positioning speed Drain + low extract speed Drain + medium extract speed Drain + medium/high extract speed Drain + high extract speed R.P.M. FOLLOWING MACHINE MODEL MS-610 MS-613 MS-617 MS-623 HS-6008 HS-6013 HS-6017 OPTIONS EM025 EM030 EM040 EM055 EH020 EH030...

  • Page 12: Execution Of A Program In Demo Mode

    Advanced Mode 3.4. DEMO menu. Operating mode with program accelerator It allows executing one of the four COIN programs with the possibility of reducing the program time. Program to facilitate maintenance interventions and preparation of programs. 3.4.1. Execution of a program in DEMO mode. Access the MODIFICATION mode.

  • Page 13: Parameters Modification

    Advanced Mode 3.6. MOD menu. Modification of operating parameters. The Mod menu allows the modification of the operation parameters of all the programs. The modifications carried out from Mod menu affect the four programs. Summary table of the changeable parameters: PARAMETER MODIFICATION OF OPTIONS...
  • Page 14 Advanced Mode External dosing Adapts the operation of the control panel leds to the washer operation. Option Ed-1 has to be programmed only if washer uses wash products form an external dosing installation. OPTIONS MEANING Ed-0 Units with external dosing unavailable Ed-1 Units with external dosing available The 2 / 4 keys allow the modification of the option displayed.
  • Page 15 Advanced Mode OPTIONS MEANING SP-0 Without suds prevention SP-1 First level of suds prevention SP-2 Second level of suds prevention SP-3 Third level of suds prevention The 2 / 4 keys allow the modification of the option displayed. The 1 key validates the selection on the display and permits the access to the following programmable function.

  • Page 16: Hour Menu

    Advanced Mode 3.7. Ncod menu. Modification of the access code to MODIFICATION mode. As it is described in section 3.1, the access to MODIFICATION mode is restricted with an access code. This code can be modified by the user if he wants to. It must always contain a combination of EIGHT keys.

  • Page 17: Setting Clock Time And Day Of The Week

    Advanced Mode 4.1.1. Setting clock time and day of the week. Access to the MODIFICATION menu. Section 3.1. Display shows Pro. Press key 2 seven times. In the display reports CASH, DEMO, INFO, Mod, Ncod, CALE, Hour are showed successively. Push the 1 key.

  • Page 18: Cash Menu

    Advanced Mode Example: Example of the weekly programming of the time band BAND 1 BAND 2 BAND 3 BAND 4 TIME RATE TIME RATE TIME RATE TIME RATE 1-Mo 00-12 h. 12-18 h. 18-22 h. HIGH 22-24 h. 2-tU 00-13 h. 13-24 h.
  • Page 19 Advanced Mode Programming of the remaining programs. Select by 2 and 4 keys the program that you want to modify. Repeat the procedure: programming the price of a program. Push the 1 key to program the prices of the program displayed. The STOP key allows the access to the superior programming level.
