Operation
for washers
COIN CONTROL
GIRBAU, S.A.
Crta de Manlleu, km. 1
08500 VIC (Barcelona) • SPAIN
Tel. 34 93 8861100
Fax 34 93 8860785
girbau@girbau.es
www.girbau.com
For USA & CANADA:
CONTINENTAL GIRBAU Inc.
2500 State Road 44
WI 54904 Oshkosh • USA
Tel. 1(920) 231-8222
Fax 1(920) 231-4666
info@cont-girbau.com
www.cont-girbau.com
Instructions
COIN
control
Serial #
Shipping date
Cod. 429373
Rev. 02/0606
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GIRBAU COIN control
Summary of Contents for GIRBAU COIN control
- Page 1 Serial # Shipping date Operation Instructions for washers COIN CONTROL GIRBAU, S.A. Crta de Manlleu, km. 1 08500 VIC (Barcelona) • SPAIN Tel. 34 93 8861100 Fax 34 93 8860785 girbau@girbau.es COIN www.girbau.com control For USA & CANADA: CONTINENTAL GIRBAU Inc.

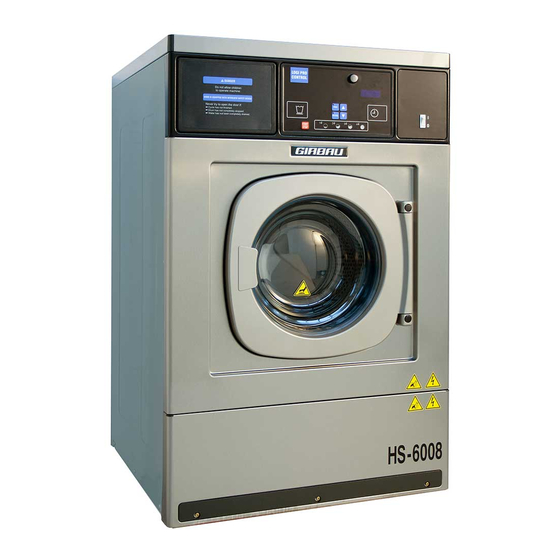

- Page 2 Model From serial # High Speed HS-6008 2.080.884 HS-6013 2.110.200 HS-6017 2.120.320 1.430.001 EH020 EH030 1.460.021 EH040 1.470.060 Medium Speed MS-610 2.020.001 MS-613 2.030.001 MS-617 2.040.001 MS-623 2.050.001 EM025 1.370.001 EM030 1.380.001 EM040 1.390.001 EM055 1.400.001 Cod. 429373 Rev. 02/0606...
-
Page 3: Safety Instructions
Safety Instructions WARNING! IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire, electric shock or injury to persons when using the washer, follow basic precautions, including the following: 1. READ all instructions before using the washer and KEEP them in a prominent location for customer use. 2. - Page 4 (1) Qualified Personnel refers to anyone who has read the Instructions Handbooks, has been trained and has a thorough understanding of the machine’s operation (2) An Authorised Service Technician (AST) is one that has successfully completed training on the product by Girbau S.A, or a Girbau, S.A. Distributor.
- Page 5 Safety Instructions HAZARD SYMBOLS USED ON WASHER LABELS: Electric risk High temperature risk. Protection guard for electric Operate with caution. components. Use appropriate protections. Mechanical risk Risk of harmful vapours inhalation. Protection guard for moving parts Keep dispenser box closed. Use appropriate protections.
- Page 6 5. If machine is left idle for long periods of time, it must be PROTECTED from humidity and temperature variations. 6. FOLLOW the fabric care instructions supplied by the manufacturer, GIRBAU S.A., REFUSES ANY RESPONSIBILITY IN CASE OF TEXTILE WEAR AND TEAR.
-
Page 7: Table Of Contents
6. SERVICE REMOVAL ......................23 6.1 Dismantling ........................... 23 NOTE The contents of chapter 3. ADVANCED USE MODE 4. PROGRAMS PRICE, can be consulted at the manufacturer’s website: www.girbau.com, (USA/CANADA: www.cont-girbau.com), see Advanced Operation Instructions COIN CONTROL. Cod. 429373 Rev. 02/0606... -
Page 8: Description
80ºC (176ºF) and four rinse phases with a final spin at high speed. • Great versatility in individually modifying the content of each program. (More information about the Programming Mode in the manual of Advanced Operation Instruction COIN CONTROL on the manufacturer website: www.girbau.com, (USA/CANADA: www.cont-girbau.com) -
Page 9: Operation Instructions
Operation 2. OPERATION 2.1. Control panel fig. 1 KEYS Washing program selection keys. Each key corresponds to a program. The selection of a program is registered by the key led STOP Program stop. LIGHT SIGNAL of a program start sequence: Washer loading and program selection Wash products loading Payment of the program value... -
Page 10: Using The Dispenser
Operation 2.3 Using the dispenser Fill the compartments with the corresponding products, according to these symbols: - Powdered detergent for pre-wash. - Powdered detergent for wash. ∆ - Liquid bleach (chlorine, bleach...) - Liquid softener / neutraliser. PRE-WASH CANCELLATION Some washing machines don’t carry out the pre-wash phase. To avoid the dispenser to get cogged up it is important to warn the operator about the correct use of the dispenser. -
Page 11: Starting A Program
Operation ALWAYS CLOSE THE DISPENSER DRAWER OR COVER BEFORE STARTING THE WASH CYCLE. NEVER OPEN THE DISPENSER DURING THE WASHING CYCLE. SUDS CONTROL. The mechanical action of front-loading washing machines improves the quality of the wash but encourages creation of suds. Remember that a suds bath always reduces the efficiency of your wash. -
Page 12: Program Application And Parameters
Operation 2.5. Program application and parameters In the default configuration, the program parameters are defined as indicated in the following charts: General application programs. HS & MS models. PROGRAM WASH RINSES FINAL SPIN estimated ∆ application rotation ºC type time VERY HOT heavy 31 min... - Page 13 Color-fast. perm press duty COLD 20 min normal 68 / 20 medium Delicate The parameters of each program can be modified: See the Advanced Operation Instructions COIN www.girbau.com www.cont-girbau.com CONTROL at the manufacturer’s website: , (USA/CANADA: Cod. 429373 Rev. 02/0606...
-
Page 14: Stop Modes
Operation 2.6 Stop modes 2.6.1 End of cycle The buzzer and the LED indicating the end of the cycle inform that the program has finished and the door lock is released. 2.6.2 Interrupting a program STOP A. Press the key for interrupting a washing program. The drum rotation stops and the bath drains. At the end of the safety delay, the buzzer informs that door lock is unlocked and display shows STOP –... -
Page 15: Modification Mode
The MODIFICATION mode is made up of the menus defined in the following chart. To program or modify the price of the programs, follow the instructions on this book. For a description in detail of the other menus, refer to the Advanced Operation Instructions COIN CONTROL, on the manufacturer’s website (www.girbau.com) (USA/CANADA: www.cont-girbau.com). -
Page 16: Program Price Programming / Modification
To leave the MODIFICATION mode push the key twice in display Pr-* For the price management in washing machines with the clock option set, see Advanced Operation Instructions COIN CONTROL, at the web of the manufacturer: www.girbau.com, (USA/CANADA: www.cont-girbau.com). Cod. 429373... -
Page 17: Troubleshooting
Troubleshooting 5. TROUBLESHOOTING Some of the washing machine’s operating problems can be solved through the intervention of the user. These problems are detailed below. Should you have any questions, remember to consult the Authorised Technical Service. 5.1 What to do when… ..the wash cycle ends with the report: END/BAL This report indicates that the final spin cycle is not possible because the load is unbalanced. -
Page 18: System Alarms
Troubleshooting 5.2. System alarms The safety of the washing machine use requires that the machine itself precisely monitor any possible anomalies. These anomalies are reported in the form of alarms. On the washing machine’s display, the ALM message will appear, alternating with the specific alarm report. Below are possible causes of alarms and the steps to follow. -
Page 19: Maintenance
Maintenance 6. MAINTENANCE Before performing any work on the washing machine, disconnect and mechanically lock the external switch, and close and mechanically lock the manual water inlet valves. Check the temperature of the parts to be handled, to avoid the risk of burns. The dispenser may contain residues of chemical products. -
Page 20: Cleaning The Dispenser
Maintenance 6.5. Cleaning the dispenser • Disconnect and mechanically lock the external switch. Close and mechanically lock the manual water inlet valves • Clean the dispenser by using a cloth or sponge dampened with water. Warm water makes cleaning easier. Never use abrasive products or tools that could scratch or damage the dispenser. Once the dispenser cleaning and assembly operations are finished: •... -
Page 21: Cleaning The Drain Pump
Maintenance VERY IMPORTANT The protection of dispenser seal is necessary to prevent humidity and corrosion inside the machine and the premature damage of the electrical and electronic circuits of machine control. 6.6. Cleaning the drain pump (Drain pump washers) Only by the Authorised Technical Service Required tools: Disassembly of the lower front panel: Torx. -
Page 22: Revising The Safety Mechanisms
Maintenance 6.7. Revising the safety mechanisms. Door lock verification MONTHLY check the door lock. CAUTION Use great prudence in checking the door lock. Carry out the verification described in following while the drum is turning at washing speed and never at a higher speed. -
Page 23: Service Removal
Service Removal 7. SERVICE REMOVAL • Removing the washer from service requires a specialised company. • Never release the washer unsecured. • To release the washer and subsequent transportation, refer to the same specifications and cautions indicated for Installation. When removing the machine from service: •...
