SHB210 Socket M Half-Size SBC User's Manual
2.4.12 Front Panel Connector

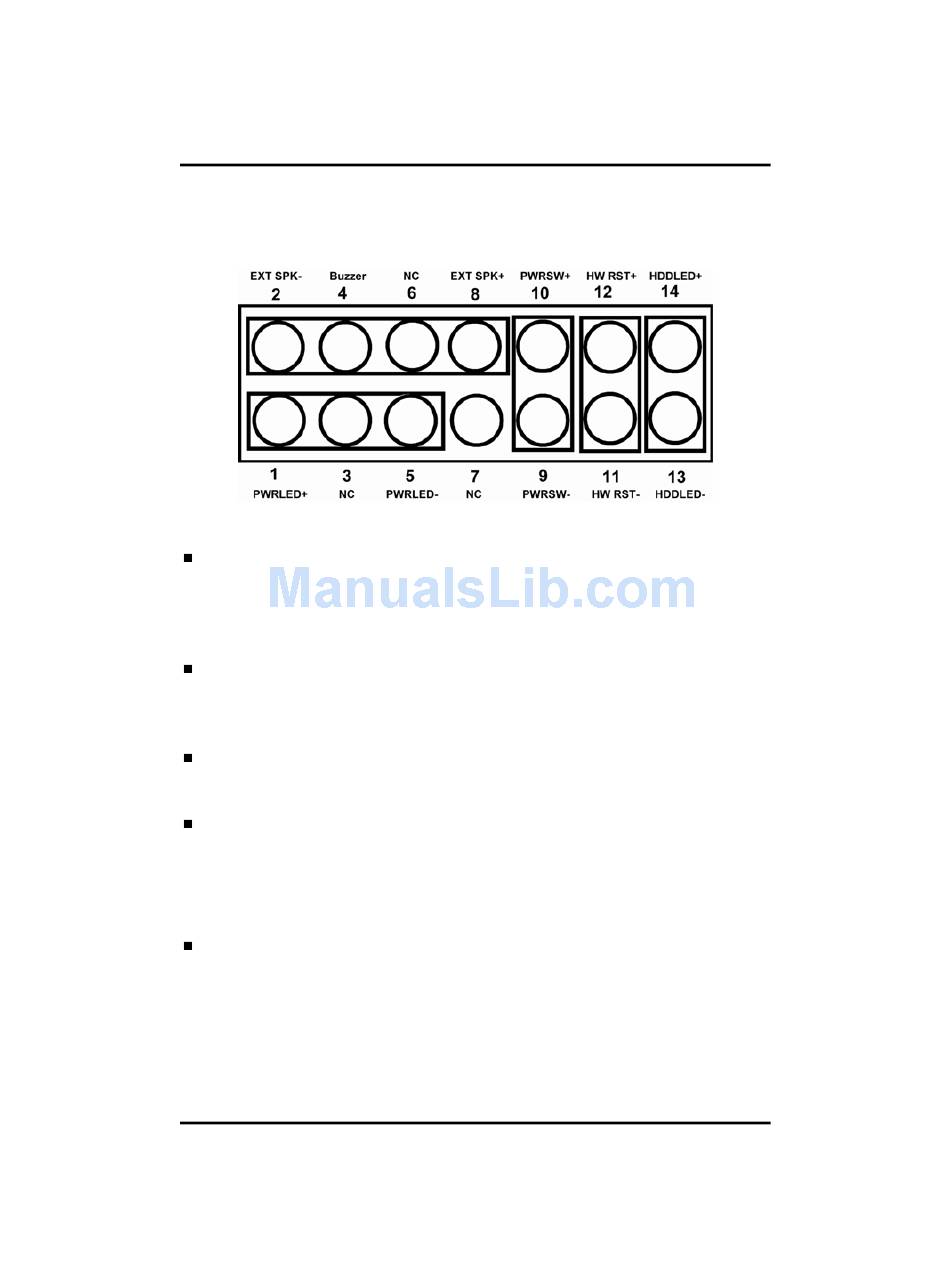

Power LED
Pins 1, 3, 5 connect the system power LED indicator to its
respective switch on the case. Pin 1 is +, and pin 5 assigned to -.
Pin 3 is defined as NC.
External Speaker and Internal Buzzer Connector
Pins 2, 4, 6, 8 can be connected to the case-mounted speaker unit
or internal buzzer.
Hareware Reset
Pins 11 and 12 are designed for Hardware Reset.
HDD Activity LED
This connector extends to the hard drive activity LED on the control
panel. This LED will flash when the HDD is being accessed. Pins
13 and 14 can be connected to the hard disk drive and front panel
HDD LED.
Power Button
Pins 9 and 10 connect the front panel's ATX power button to the
card, which allows users to control ATX power supply on or off.
