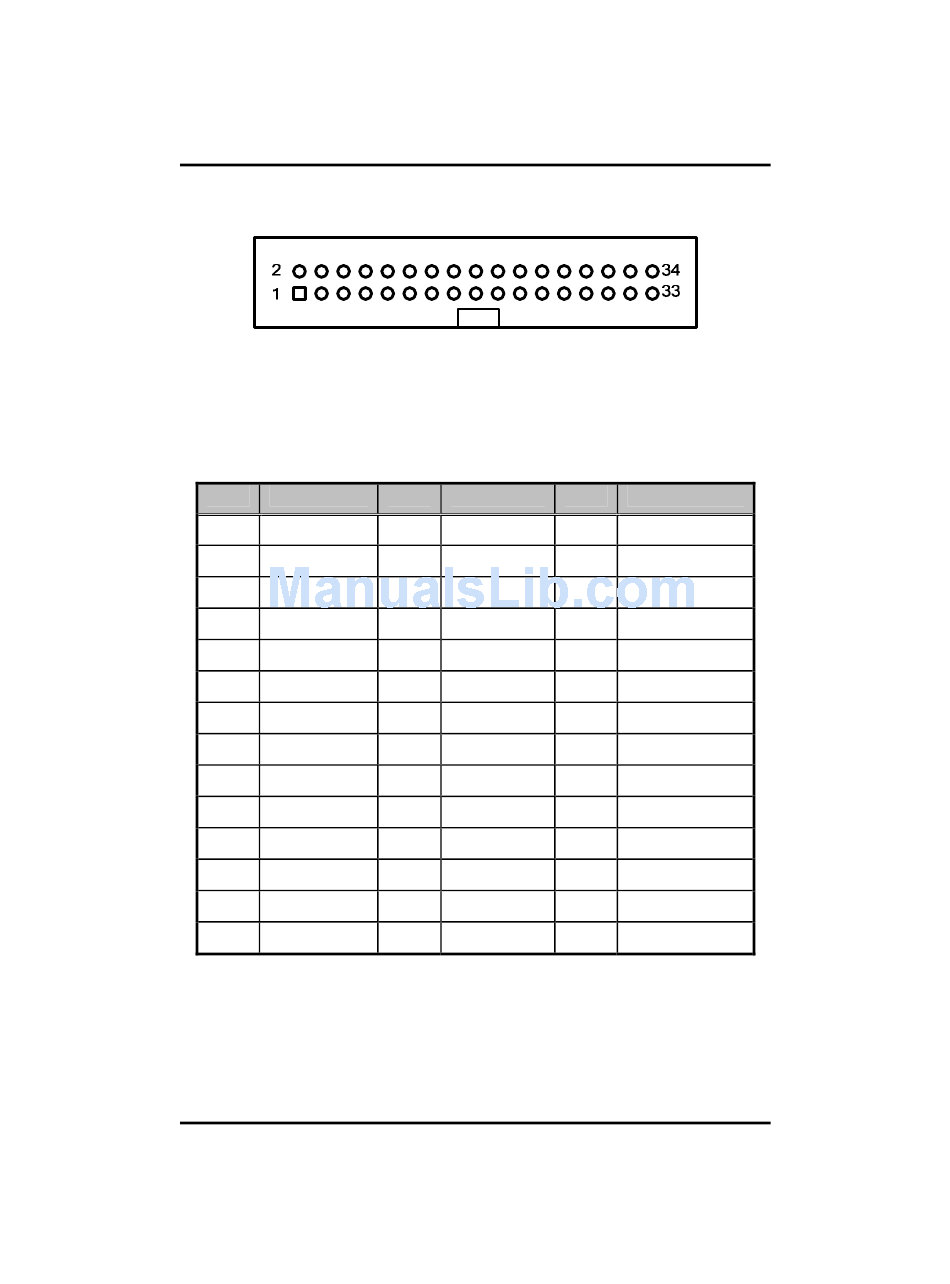

2.4.7 IDE Interface Connector: CN3

The board provided one IDE Port to support maximum up to two IDE
devices.
Pin Description
1 Reset #
4 Data 8
7 Data 5
10 Data 11
13 Data 2
16 Data 14
19 GND
22 GND
25 IOR #
28 N/C
31 Interrupt
34 N/C
37 HDC CS0 #
40 GND
Jumpers and Connectors
SHB210 Socket M Half-Size SBC User's Manual
Pin Description
2 GND
5 Data 6
8 Data 10
11 Data 3
14 Data 13
17 Data 0
20 N/C
23 IOW #
26 GND
29 N/C
32 N/C
35 SA0
38 HDC CSI #
Pin Description
3 Data 7
6 Data 9
9 Data 4
12 Data 12
15 Data 1
18 Data 16
21 N/C
24 GND
27 IOCHRDY
30 GND-Default
33 SA1
36 SA2
39 HDD Active #
