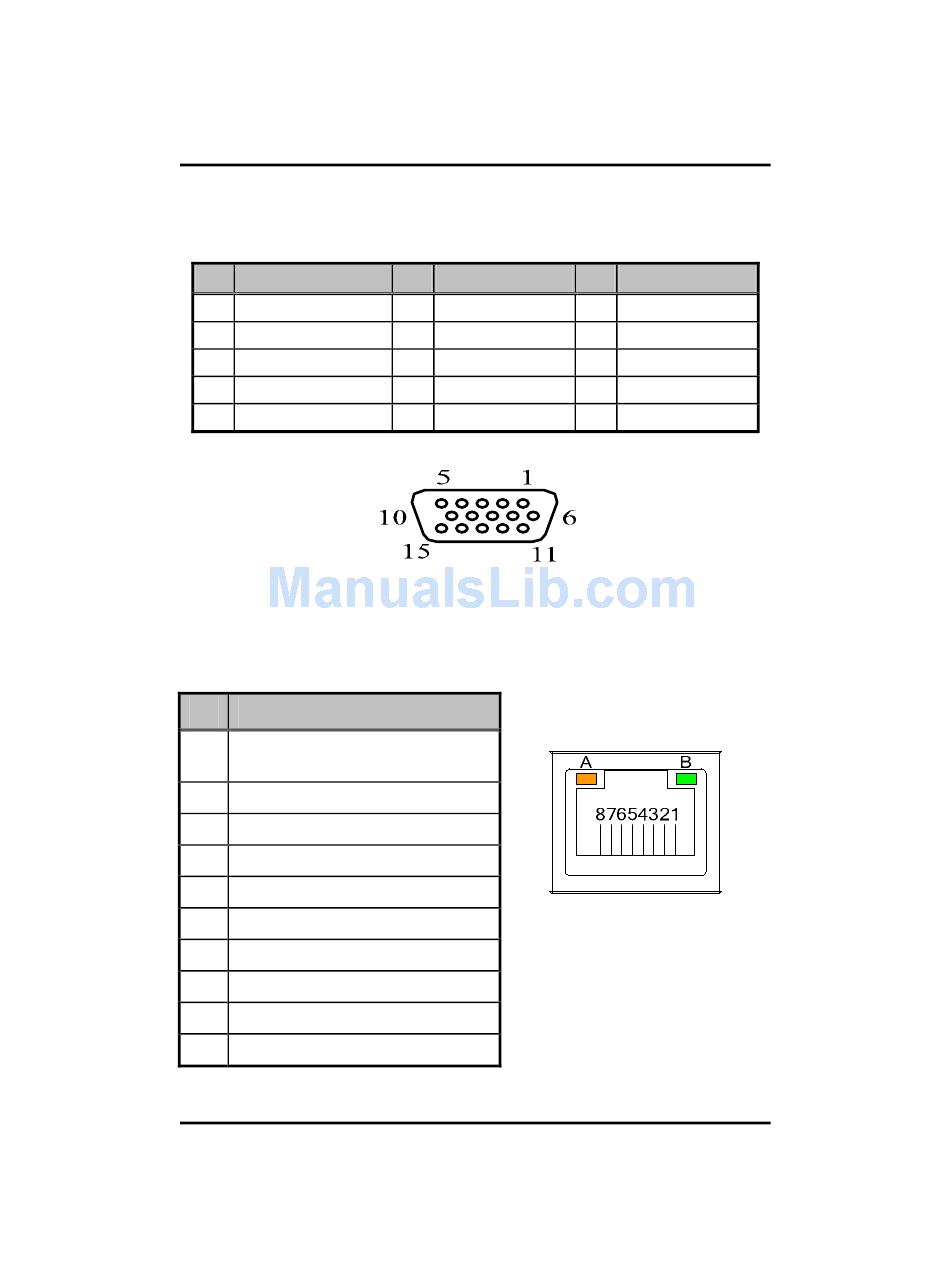

CRT Connector: CN14
CN14 is a standard 15-pin pin DB15 connector commonly used for the
CRT VGA display.
Pin Signal
1 Red
4 N/A
7 AGND
10 GND
13 Horizontal Sync
CN14

2.4.9 Ethernet Connectors: CN5, CN7

The RJ-45 connectors CN5 and CN7 are for Ethernet.
Pin Signal
Tx+ (Data transmission
1
positive)
Tx- (Data transmission negative)
2
Rx+(Data reception positive)
3
4 RJ-1(For 100 base T-Only)
5 RJ-1(For 100 base T-Only)
Rx- (Data reception negative)
6
RJ-1(For 100 base T-Only)
7
RJ-1(For 100 base T-Only)
8
Active LED
A
B 100/1000 LAN LED
16
Pin Signal
2 Green
5 GND
8 AGND
11 N/A
14 Vertical Sync
Jumpers and Connectors
Pin Signal
3 Blue
6 AGND
9 N/A
12 DDC DAT
15 DDC CLK
CN5, CN7
