CN2: Pin Assignment Table
Pin Signal
1 Strobe#
3 Data 0
5 Data 1
7 Data 2
9 Data 3
11 Data 4
13 Data 5
15 Data 6
17 Data 7
19 Acknowledge #
21 Busy
23 Paper Empty #
25 Print Select

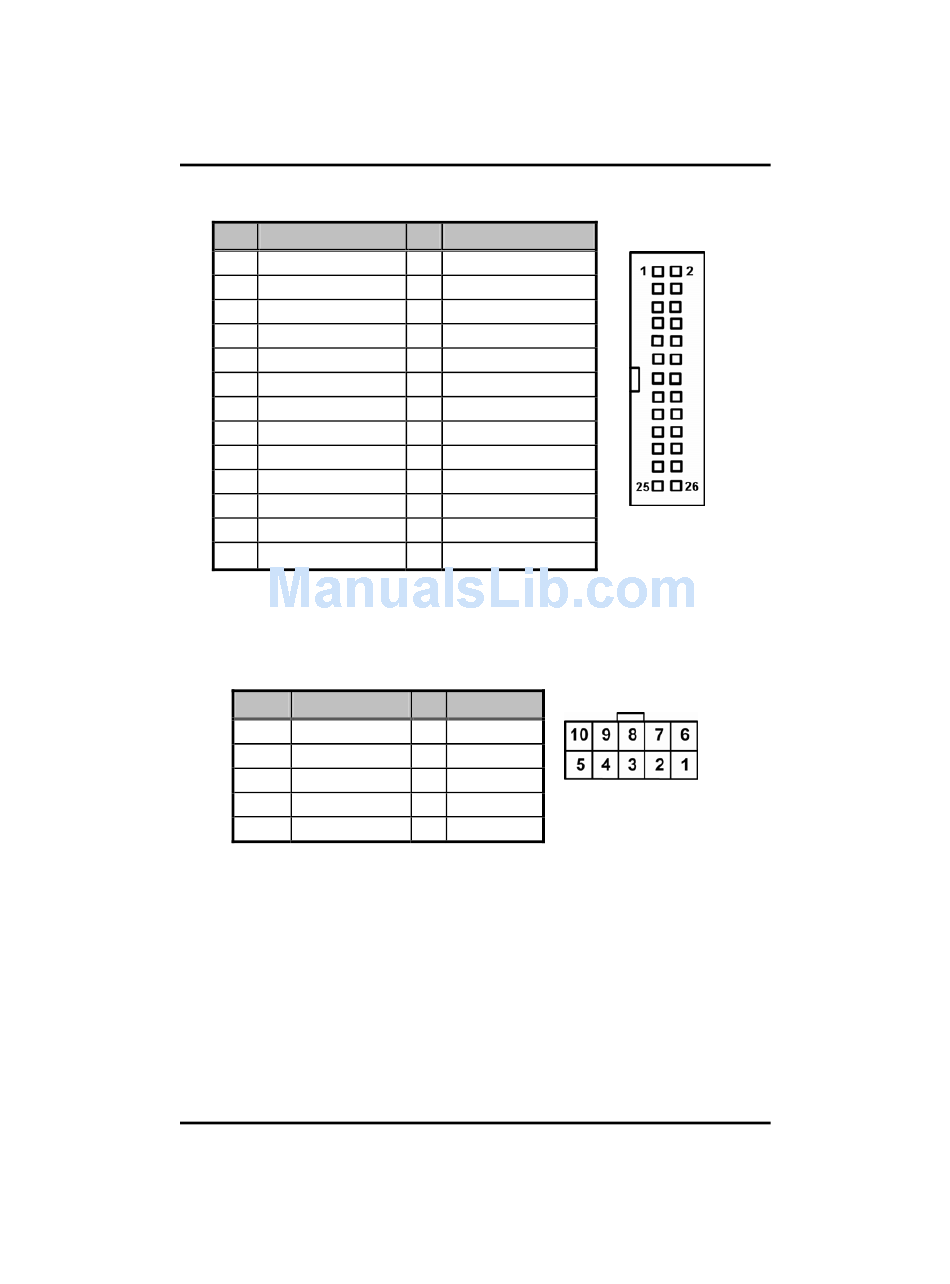

2.4.3 EPIC Power Connector: CN4

Pin Signal
1 PSON#
3 GND
5 +3.3V
7 +5V
9 -12V
Jumpers and Connectors
SHB210 Socket M Half-Size SBC User's Manual
Pin Signal
2 Auto Form Feed#
4 Error #
6 Initialize #
8 Printer Select In #
10 GND
12 GND
14 GND
16 GND
18 GND
20 GND
22 GND
24 GND
26 GND
Pin Signal
2 GND
4 +12V
6 5V SB
8 +5V
10 GND
CN2
CN4
