SHB210 Socket M Half-Size SBC User's Manual
CN3
2.4.8

LVDS/LCD Connectors: CN14, CN16, CN21

There are several connectors to support CRT VGA and flat panel
displays. CN14 is a standard 15-pin connector commonly used for the
CRT VGA display, CN16 a Hirose DF20-40pin connector for the LVDS
flat panel connection, and CN21 a Hirose DF13-7pin connector for
inverter.

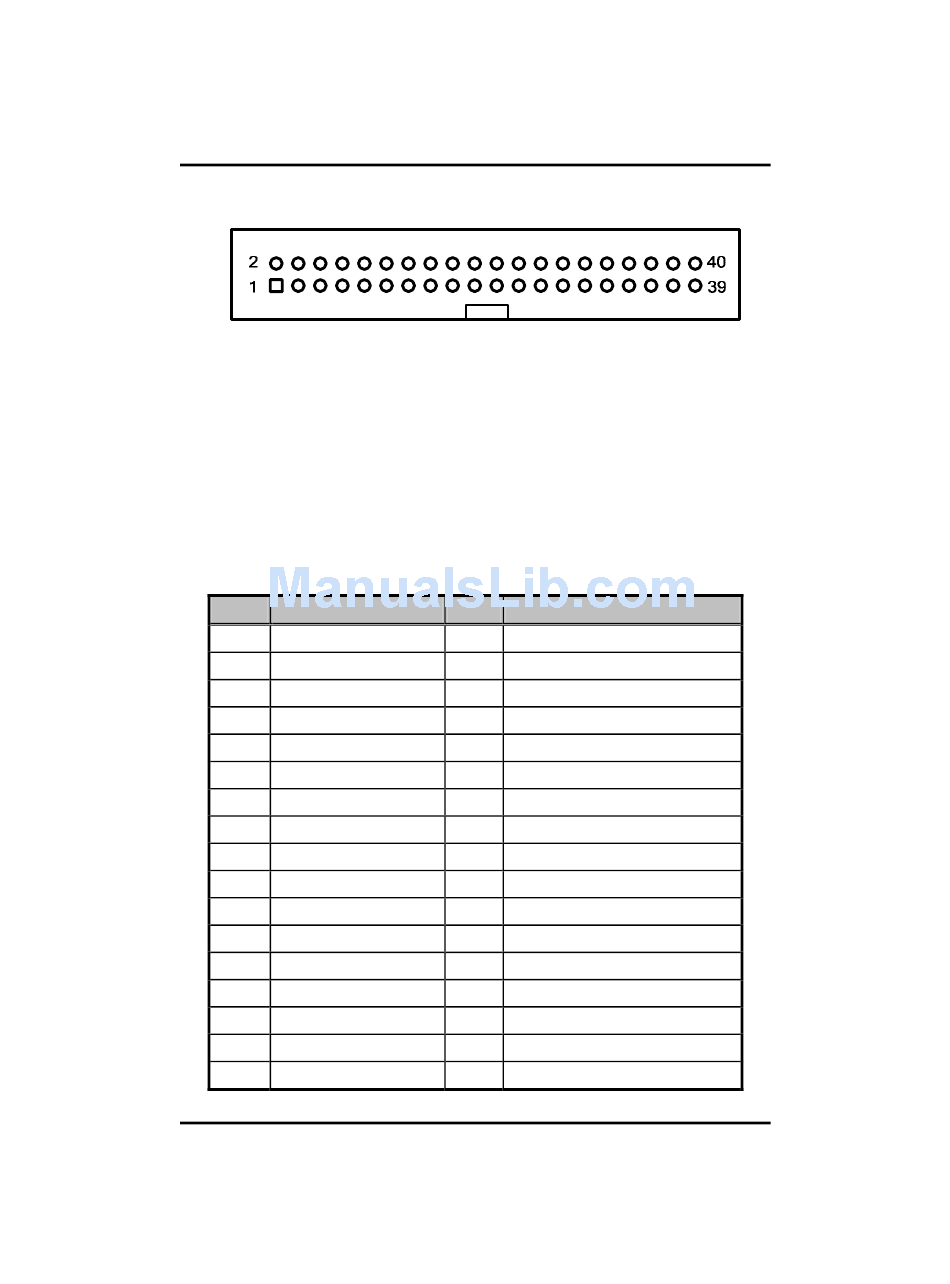

Hirose DF20-40pin connector for the LVDS Flat Panel: CN16
Pin Signal
1 VCCM
3 VCCM
5 VCCM
7 NC
9 GND
11 NC
13 NC
15 GND
17 LVDSB_CLK-
19 LVDSB_CLK+
21 GND
23 LVDSA_D0-
25 LVDSA_D0+
27 GND
29 LVDSA_D1-
31 LVDSA_D1+
33 GND
14
Pin Signal
2 VCCM
4 VCCM
6 VCCM
8 NC
10 GND
12 LVDSB_D0-
14 LVDSB_D0+
16 GND
18 LVDSB_D1-
20 LVDSB_D1+
22 GND
24 LVDSB_D2-
26 LVDSB_D2+
28 GND
30 NC
32 NC
34 GND
Jumpers and Connectors
