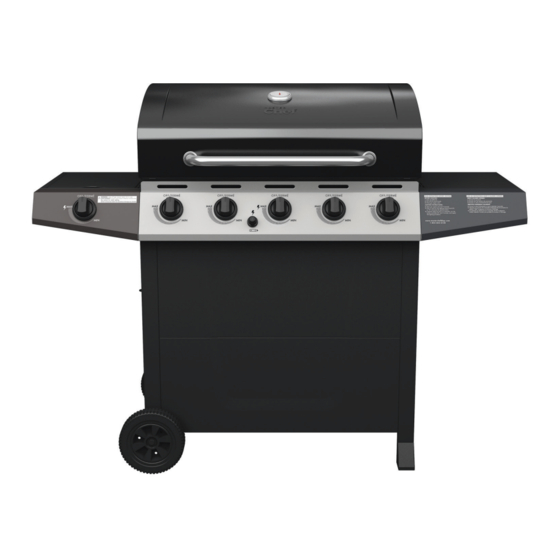

SELECT 5-BURNER
PROPANE BARBECUE
Assembly Manual
85-3129-6 (G55105) Propane
1 YeAr liMited WArrAntY
reAd And sAve MAnuAl for future reference.
Assemble your grill immediately.
Missing or damaged parts claims must be submitted within 30 days of purchase date.
for product inquiries, parts, warranty and troubleshooting support,
please call 1-855-453-2150.
ANSI Z21.58-2015 / CSA 1.6-2015
ANSI Z21.58-2015 / CSA 1.6-2015
ANSI Z21.58-2015 / CSA 1.6-2015
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Master Chef 85-3129-6 Propane
Summary of Contents for Master Chef 85-3129-6 Propane
- Page 1 SELECT 5-BURNER PROPANE BARBECUE Assembly Manual 85-3129-6 (G55105) Propane 1 YeAr liMited WArrAntY reAd And sAve MAnuAl for future reference. Assemble your grill immediately. Missing or damaged parts claims must be submitted within 30 days of purchase date. for product inquiries, parts, warranty and troubleshooting support, please call 1-855-453-2150.
- Page 2 H e A v Y A r t i c l e n e e d s 2 t o l i f t THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES To ORDER non-warranty replacement parts or accessories, or to register your warranty, please visit us on the web at www.masterchefbbqs.com cAution...
-
Page 3: Tools Needed For Assembly
HARDWARE PACK tools needed for AsseMBlY KeY # descriPtion PArt nuMBer QuAntitY 1/4”-20UNC X13 Screw 20120-13013-036 • #2 Star-head screwdriver (long and short) 1/4”-20UNC Nut 31220-13000-036 ST4.2X8 Tapping Screw 24200-42008-136 • ¼” Slotted screwdriver (long and short) Aluminum Washer G466-0042-9000 •... - Page 4 PARts List (PRoPAnE) foR 85-3129-6 (G55105) KeY # QuAntitY descriPtion PArt no. Top Lid Assembly G551-6700-01 Thermometer and Bezel G312-B201-01 Lid Handle Brackets G352-0015-01 Top Lid Handle G551-0001-01 Lid Bumpers, Back G303-0038-01 Lid Bumpers, Front G430-00B8-01 Screws for Lid G430-0024-02 Burner Box Assembly G551-0300-01 Burner...
- Page 5 EXPLoDED DiAGRAM (PRoPAnE) foR 85-3129-6 (G55105) SAFETy ASSEMBLy AND CARE MANUAL MANUAL HARDWARE PACK...
-
Page 6: Assembly Instructions
AssEMBLY instRUCtions note: two people required for all assembly steps. Assemble the Upper Front Panel (DD) and Lower Front Panel (DE) to the the Left and Right Cart Side Panels (DB and DA) as shown. yOU WILL NEED: Assemble the two Back Braces (DC) to the Left and Right Cart Side Panels (DB and DA) as shown. - Page 7 AssEMBLY instRUCtions note: turn Cart assembly upside down. a. Place Wheel (DG) and Wheel Spacer (#5) onto the Wheel Axle (DH). “Cone” side of wheel should be against cart side panel. Figure B. b. Insert Wheel Axle Assembly (DH) through wheel axle hole in the front and rear of the Left Cart Side Panel (DB), as shown.
- Page 8 AssEMBLY instRUCtions ProPAne Model onlY. Assemble the Gas Tank Support (DK) to Left Cart Side Panel (DB). Back View Close up note: tWo PEoPLE required for this step. Ensure that the regulator hose (CE) (Propane models only) is hanging outside of cart. a.
- Page 9 AssEMBLY instRUCtions riGHt side sHelf AsseMBlY a. Insert the Right Side Shelf Assembly (EA and EB) into the support brackets located on the right side of the Burner Box Assembly (BA). Front, right side view b. Affix the Right Side Shelf Table (EA) to the Burner Box Assembly (BA) as shown in figures B and C.
- Page 10 AssEMBLY instRUCtions left side sHelf AsseMBlY a. Insert the Left Side Shelf Assembly (EC and ED) into the support brackets located on the right side of the Burner Box Assembly (BA). Front, left side view b. Affix the Left Side Shelf Table (EC) to the Burner Box Assembly (BA) as shown in figures B and C.
- Page 11 AssEMBLY instRUCtions a. Assemble the Control Knob Bezel (#9) to the Left Side Shelf Fascia (ED) and the Side Burner Valve (CD) as shown in figures A and B. yOU WILL NEED: Left side view Front view b. Position the Side Burner (EF) through the opening in the Left Side Burner Drip Pan (EE).
- Page 12 AssEMBLY instRUCtions d. Assemble the Side Burner (EF) to the Side Burner Drip Pan (EE) as shown in figure E. yOU WILL NEED: View, under left side shelf e. Use the Side Burner Venturi Clip (#12) to connect the Side Burner (EF) to the Side Burner Valve (CD) as shown in figure F.
- Page 13 AssEMBLY instRUCtions a. Position the Side Burner Cooking Grate (EH) onto the Side Burner Drip Pan (EE). b. Assemble the Side Burner Control Knob (#8) to the Side Burner Valve (CD). yOU WILL NEED: Place the Flame Tamer (BE) into the Burner Box Assembly (BA).
- Page 14 AssEMBLY instRUCtions Place the Cooking Grates (BF) into the Burner Box Assembly (BA). To assemble the Warming Rack (BG), insert the stationary wire into the holes on the sides of the lid. Insert warming rack pivot legs into the holes on the inside of the burner box assembly, as Stationary Wire shown.
- Page 15 AssEMBLY instRUCtions Hang the Grease Cup Hook (CI) from the bottom of the Burner Box (BA), and place Grease Cup (CJ) into position. cAution failure to assemble grease cup hook and grease cup will cause hot grease to drip from the bottom of the BBQ burner box, with the risk of fire, property damage, or personal injury.
- Page 16 AssEMBLY instRUCtions Position the 20 lb propane tank into the notches located on the bottom of the Left Cart Side Panel (DB). Position the Gas Tank Support (DK) onto the tank collar. Attach the regulator coupling nut (CE) to the propane tank valve. Attention LP Cylinder is sold separately.
- Page 17 WArninG Hot surfAces: • cAution! • Avoid Burns! • do not toucH WHen BBQ is in use! • eXtreMelY Hot surfAce! * sHADED AREAs BECoME EXtREMELY Hot WHEn in UsE.
- Page 18 Visit www.masterchefbbqs.com to complete product registration. Master Chef® Customer Service 1-855-453-2150 Trileaf Distributions Trifeuil Toronto, Ontario M4S 2B8...
