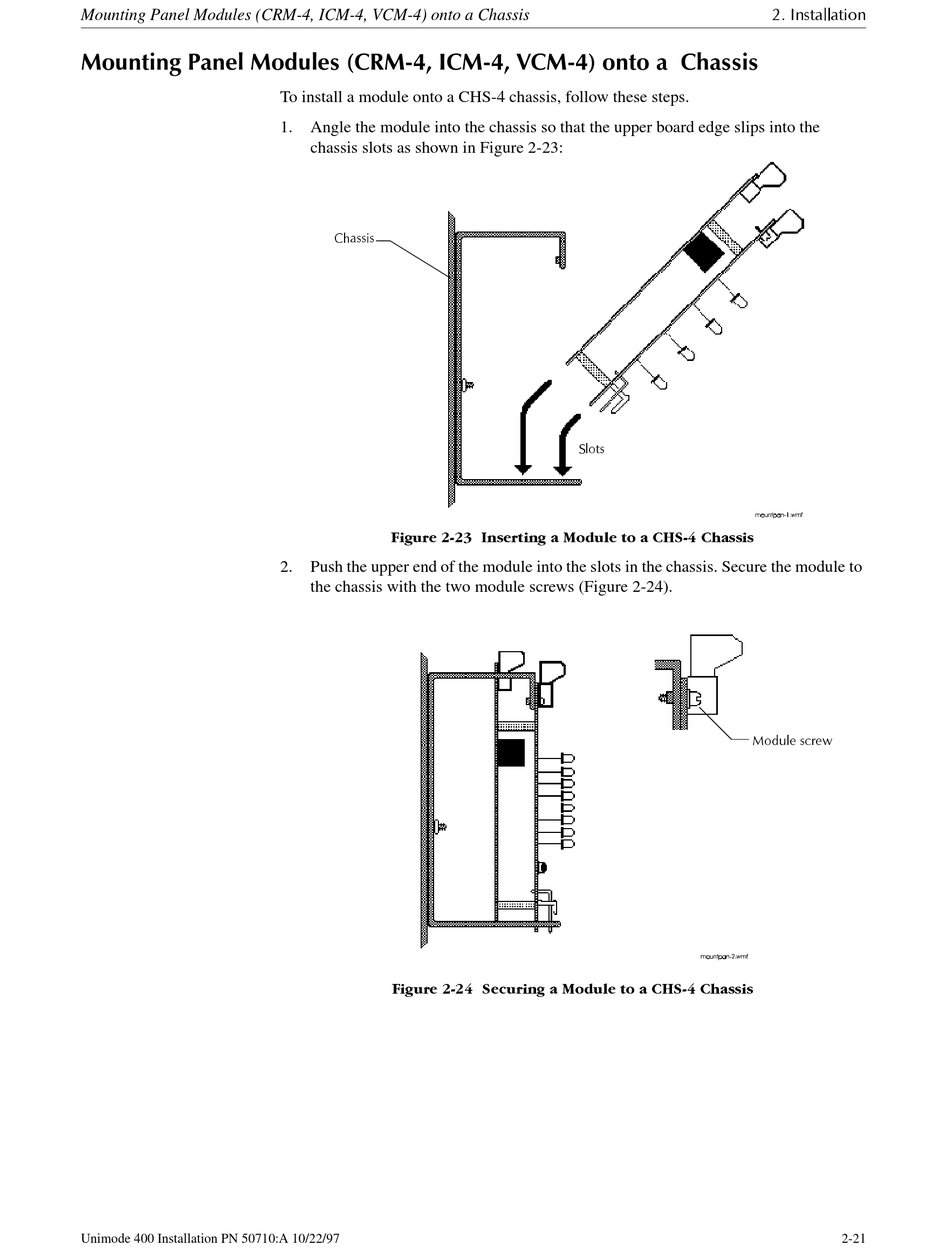

Mounting Panel Modules (CRM-4, ICM-4, VCM-4) onto a Chassis
Unimode 400 Installation PN 50710:A 10/22/97
To install a module onto a CHS-4 chassis, follow these steps.
1. Angle the module into the chassis so that the upper board edge slips into the
chassis slots as shown in Figure 2-23:
&KDVVLV
)LJXUH  ,QVHUWLQJ D 0RGXOH WR D &+6 &KDVVLV
2. Push the upper end of the module into the slots in the chassis. Secure the module to
the chassis with the two module screws (Figure 2-24).
)LJXUH  6HFXULQJ D 0RGXOH WR D &+6 &KDVVLV
6ORWV
0RGXOH VFUHZ
 ,QVWDOODWLRQ
2-21
