9RLFH $ODUP 6\VWHP
:LULQJ 1RWHV
:LULQJ 'LDJUDP
4-34
When wiring circuits in a dual-channel configuration using 120 watts of power with
two AA-120s, note the following:
1.
AA-120 audio power is drawn from plug P6 or terminals 5 and 6 of terminal block
P8. This audio power run cannot be supervised in this configuration.
2.
Each circuit can handle a maximum of 30 watts.
3.
In this configuration, cut VCE-4 jumpers JP1 and JP2.

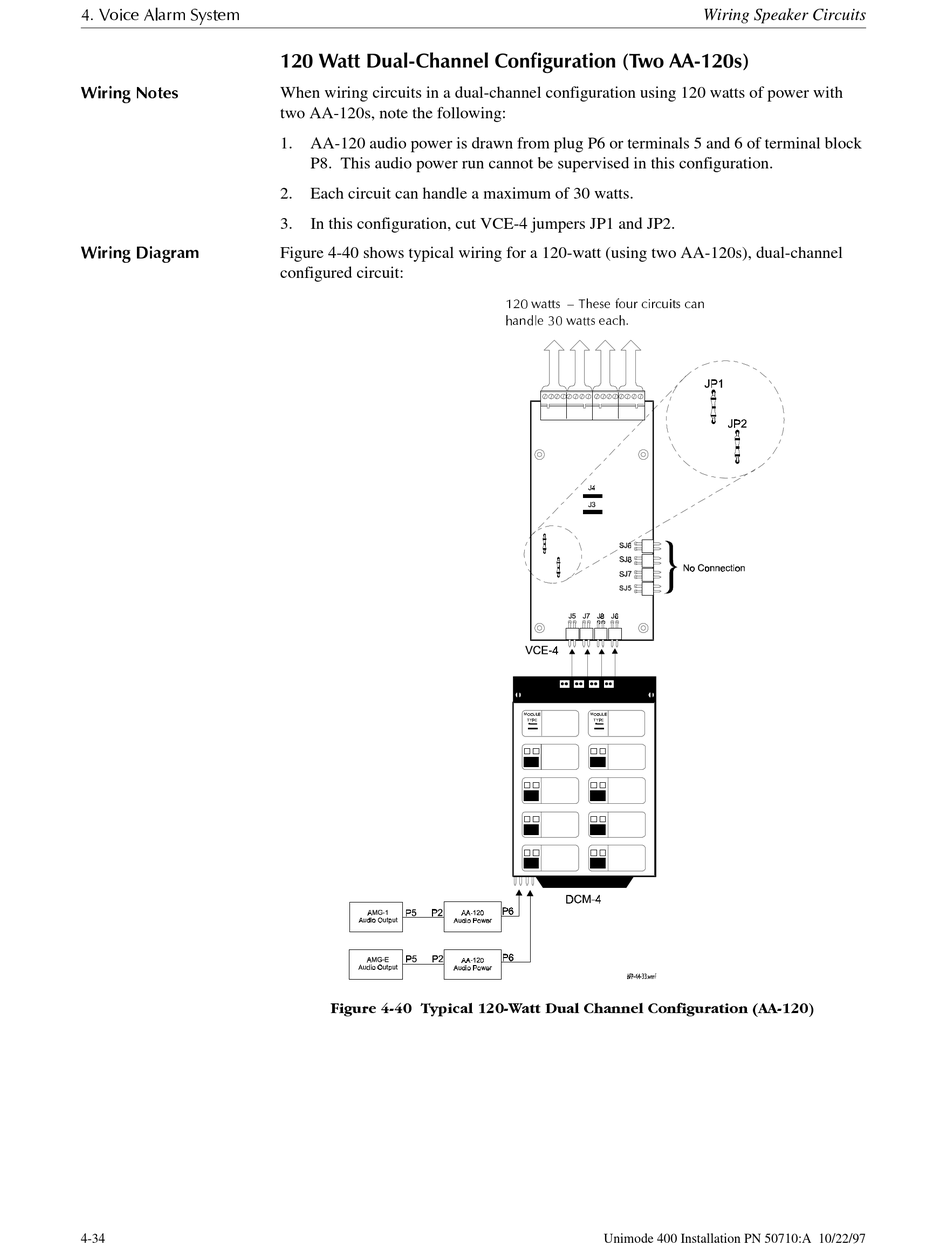

Figure 4-40 shows typical wiring for a 120-watt (using two AA-120s), dual-channel
configured circuit:
)LJXUH 7\SLFDO :DWW 'XDO &KDQQHO &RQILJXUDWLRQ $$
ZDWWV ² 7KHVH IRXU FLUFXLWV FDQ
KDQGOH ZDWWV HDFK
Unimode 400 Installation PN 50710:A 10/22/97
Wiring Speaker Circuits
