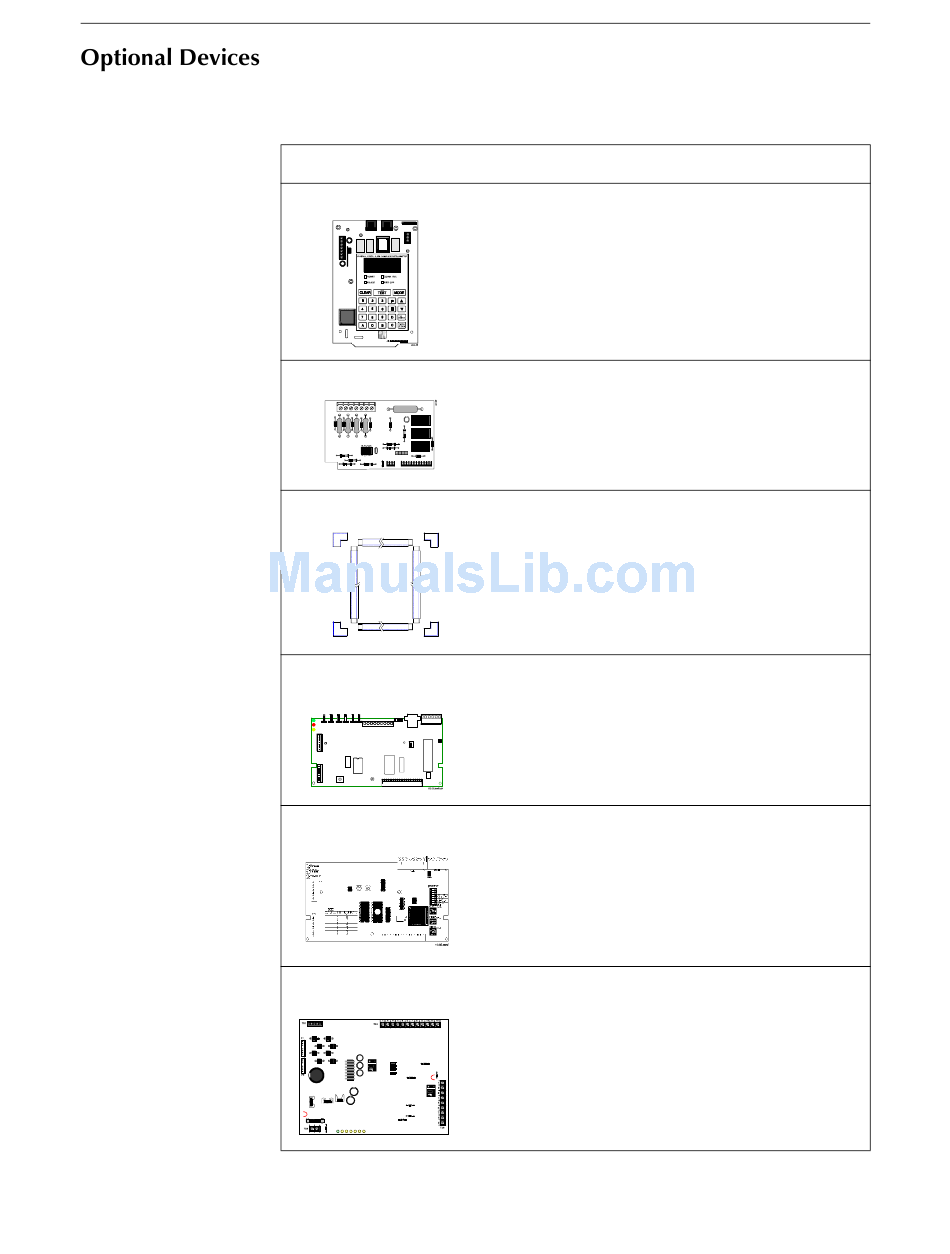

Table 1-7 contains a list of optional components that can be installed in a Unimode 400
system:
Option
UDACT
4XTM Transmitter Module
Trim Ring
ADT-UZC-256 Universal
Zone Coder
ADT-NIB-96 Network
Interface Board
FCPS-24 Field Charger
Power Supply
Table 1-7 Optional Devices for the Unimode 400
Description
A Universal Digital Alarm Communicator/Transmitter
(UDACT) transmits system status to UL-listed Central
Station Receivers over a public switched telephone network.
The UDACT mounts in a cabinet or mounts remotely in the
ADT-ABS-8R. The UDACT connects to the EIA-485
annunciator port and 24 VDC (nominal) power.
A 4XTM module provides municipal box and remote station
transmitters meeting NFPA 72-1993 Auxiliary and Remote
Station requirements. The 4XTM also includes a Disable
switch and an LED indicator.
A gray trim ring is available for semi-flush mounting of the
ADT-CAB-X3 Series cabinet.
An ADT-UZC-256 module is a circuit board—used for NAC
coding applications—that provides three output circuits and
up to 256 zone codes.
An ADT Network Interface Board (ADT-NIB-96) is a
microprocessor-controlled module that connects slave control
panels to a master control panel. The ADT-NIB-96 module
can be installed in each slave FACP. Each slave FACP can
contain as many as 96 input/output points, or as few as eight
points.
The FCPS-24 is a compact, cost-effective remote power
supply and battery charger. This remote power supply
consists of a filtered, regulated 24 VDC output that can drive
up to four Notification Appliance Circuits (NACs).
