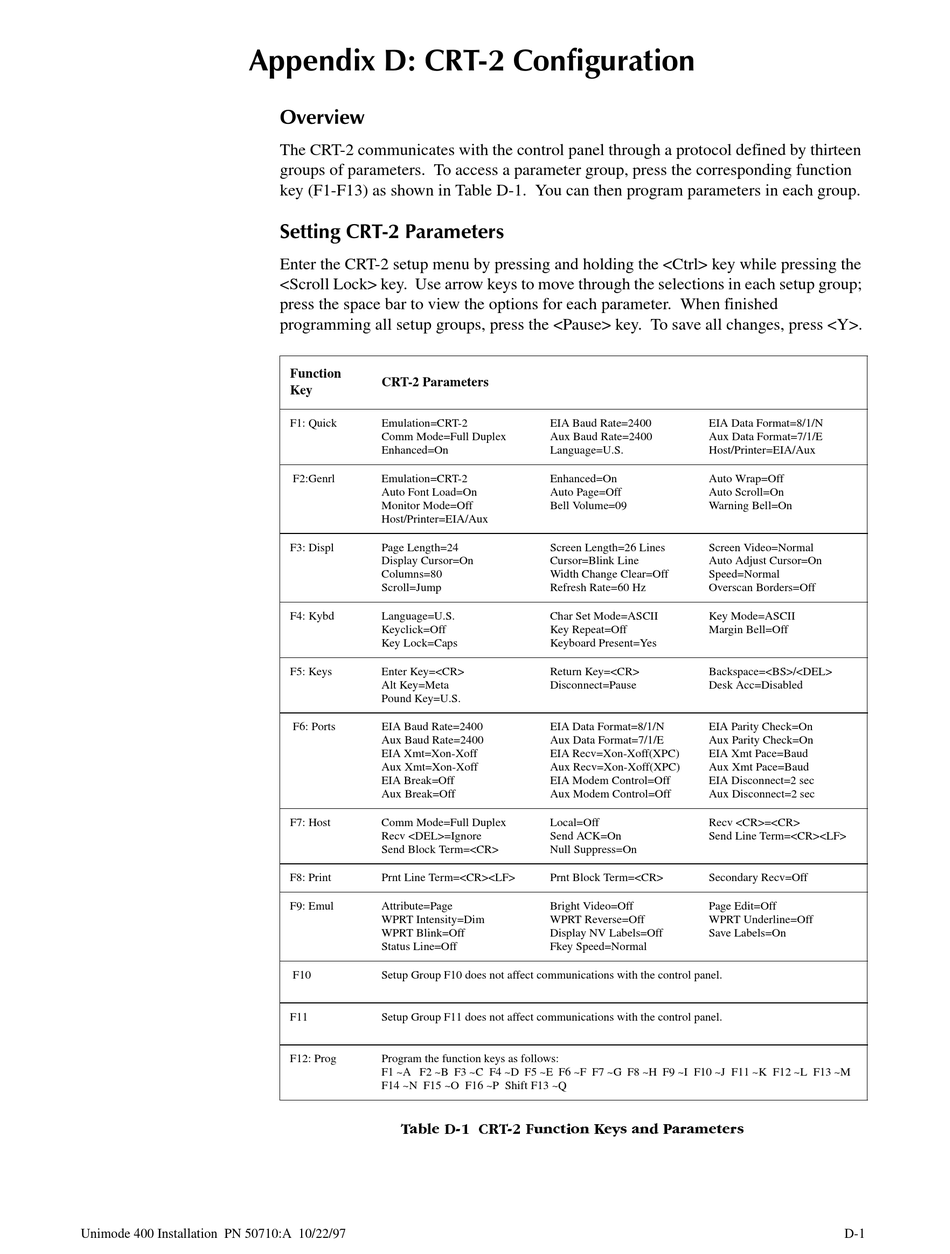

The CRT-2 communicates with the control panel through a protocol defined by thirteen
groups of parameters. To access a parameter group, press the corresponding function
key (F1-F13) as shown in Table D-1. You can then program parameters in each group.
Enter the CRT-2 setup menu by pressing and holding the <Ctrl> key while pressing the
<Scroll Lock> key. Use arrow keys to move through the selections in each setup group;
press the space bar to view the options for each parameter. When finished
programming all setup groups, press the <Pause> key. To save all changes, press <Y>.
Function
CRT-2 Parameters
Key
F1: Quick Emulation=CRT-2
Comm Mode=Full Duplex
Enhanced=On
F2:Genrl Emulation=CRT-2
Auto Font Load=On
Monitor Mode=Off
Host/Printer=EIA/Aux
F3: Displ Page Length=24
Display Cursor=On
Columns=80
Scroll=Jump
F4: Kybd Language=U.S.
Keyclick=Off
Key Lock=Caps
F5: Keys Enter Key=<CR>
Alt Key=Meta
Pound Key=U.S.
F6: Ports EIA Baud Rate=2400
Aux Baud Rate=2400
EIA Xmt=Xon-Xoff
Aux Xmt=Xon-Xoff
EIA Break=Off
Aux Break=Off
F7: Host Comm Mode=Full Duplex
Recv <DEL>=Ignore
Send Block Term=<CR>
F8: Print Prnt Line Term=<CR><LF>
F9: Emul Attribute=Page
WPRT Intensity=Dim
WPRT Blink=Off
Status Line=Off
F10 Setup Group F10 does not affect communications with the control panel.
F11 Setup Group F11 does not affect communications with the control panel.
F12: Prog Program the function keys as follows:
F1 ~A F2 ~B F3 ~C F4 ~D F5 ~E F6 ~F F7 ~G F8 ~H F9 ~I F10 ~J F11 ~K F12 ~L F13 ~M
F14 ~N F15 ~O F16 ~P Shift F13 ~Q
7DEOH ' &57 )XQFWLRQ .H\V DQG 3DUDPHWHUV
EIA Baud Rate=2400 EIA Data Format=8/1/N
Aux Baud Rate=2400 Aux Data Format=7/1/E
Language=U.S. Host/Printer=EIA/Aux
Enhanced=On Auto Wrap=Off
Auto Page=Off Auto Scroll=On
Bell Volume=09 Warning Bell=On
Screen Length=26 Lines Screen Video=Normal
Cursor=Blink Line Auto Adjust Cursor=On
Width Change Clear=Off Speed=Normal
Refresh Rate=60 Hz Overscan Borders=Off
Char Set Mode=ASCII Key Mode=ASCII
Key Repeat=Off Margin Bell=Off
Keyboard Present=Yes
Return Key=<CR> Backspace=<BS>/<DEL>
Disconnect=Pause Desk Acc=Disabled
EIA Data Format=8/1/N EIA Parity Check=On
Aux Data Format=7/1/E Aux Parity Check=On
EIA Recv=Xon-Xoff(XPC) EIA Xmt Pace=Baud
Aux Recv=Xon-Xoff(XPC) Aux Xmt Pace=Baud
EIA Modem Control=Off EIA Disconnect=2 sec
Aux Disconnect=2 sec
Aux Modem Control=Off
Local=Off Recv <CR>=<CR>
Send ACK=On Send Line Term=<CR><LF>
Null Suppress=On
Prnt Block Term=<CR> Secondary Recv=Off
Bright Video=Off Page Edit=Off
WPRT Reverse=Off WPRT Underline=Off
Display NV Labels=Off Save Labels=On
Fkey Speed=Normal
