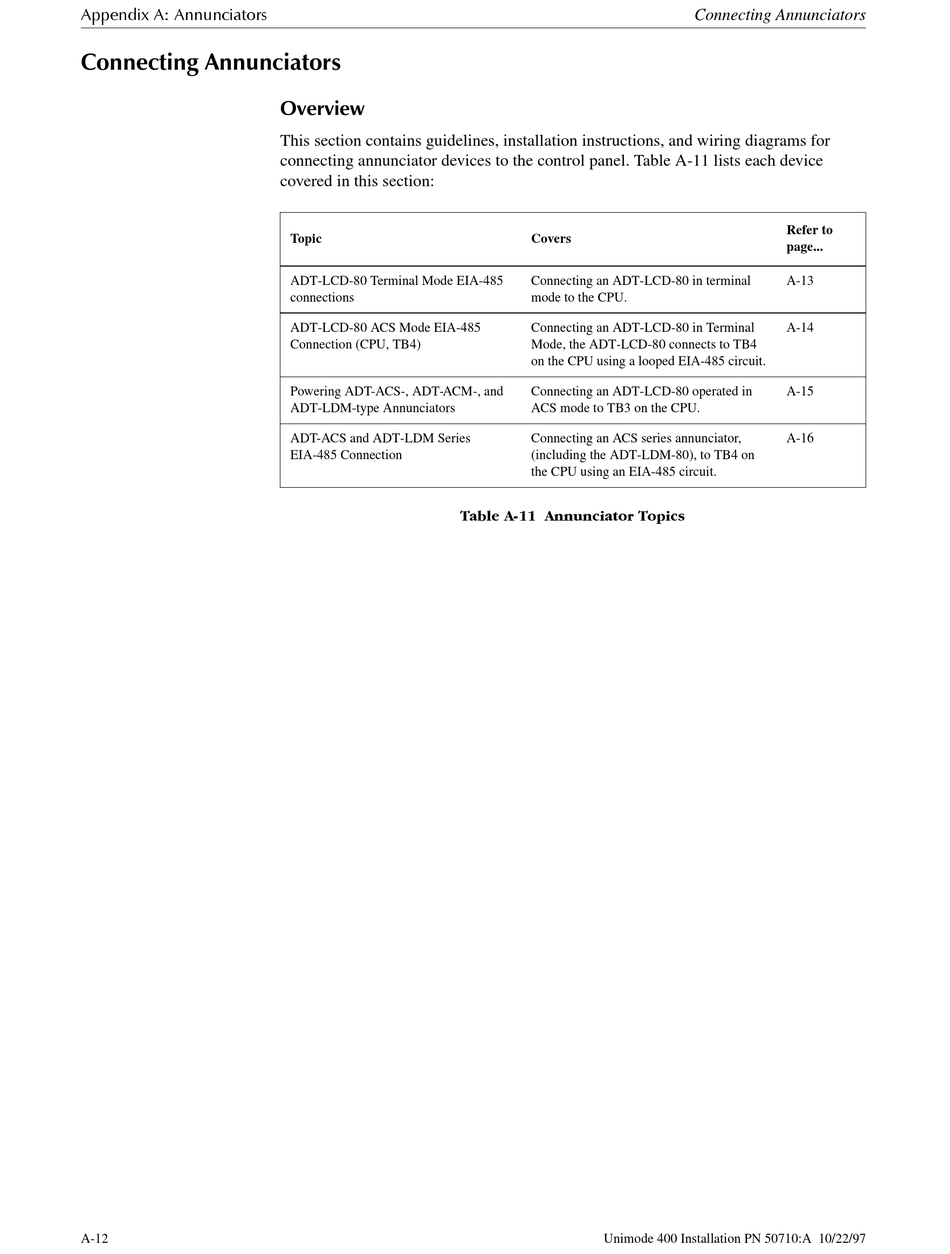

$SSHQGL[ $ $QQXQFLDWRUV
A-12
This section contains guidelines, installation instructions, and wiring diagrams for
connecting annunciator devices to the control panel. Table A-11 lists each device
covered in this section:
Topic
ADT-LCD-80 Terminal Mode EIA-485
connections
ADT-LCD-80 ACS Mode EIA-485
Connection (CPU, TB4)
Powering ADT-ACS-, ADT-ACM-, and
ADT-LDM-type Annunciators
ADT-ACS and ADT-LDM Series
EIA-485 Connection
Covers
Connecting an ADT-LCD-80 in terminal
mode to the CPU.
Connecting an ADT-LCD-80 in Terminal
Mode, the ADT-LCD-80 connects to TB4
on the CPU using a looped EIA-485 circuit.
Connecting an ADT-LCD-80 operated in
ACS mode to TB3 on the CPU.
Connecting an ACS series annunciator,
(including the ADT-LDM-80), to TB4 on
the CPU using an EIA-485 circuit.
7DEOH $ $QQXQFLDWRU 7RSLFV
Unimode 400 Installation PN 50710:A 10/22/97
Connecting Annunciators
Refer to
page...
A-13
A-14
A-15
A-16
