1RWH
7KURXJKRXW WKLV PDQXDO
´FRQWURO SDQHOµ UHIHUV WR D
8QLPRGH  0XOWL1HW FRQWURO
SDQHO DQG &38 UHIHUV WR DQ
$'7&38
Unimode 400 Installation PN 50710:A 10/22/97

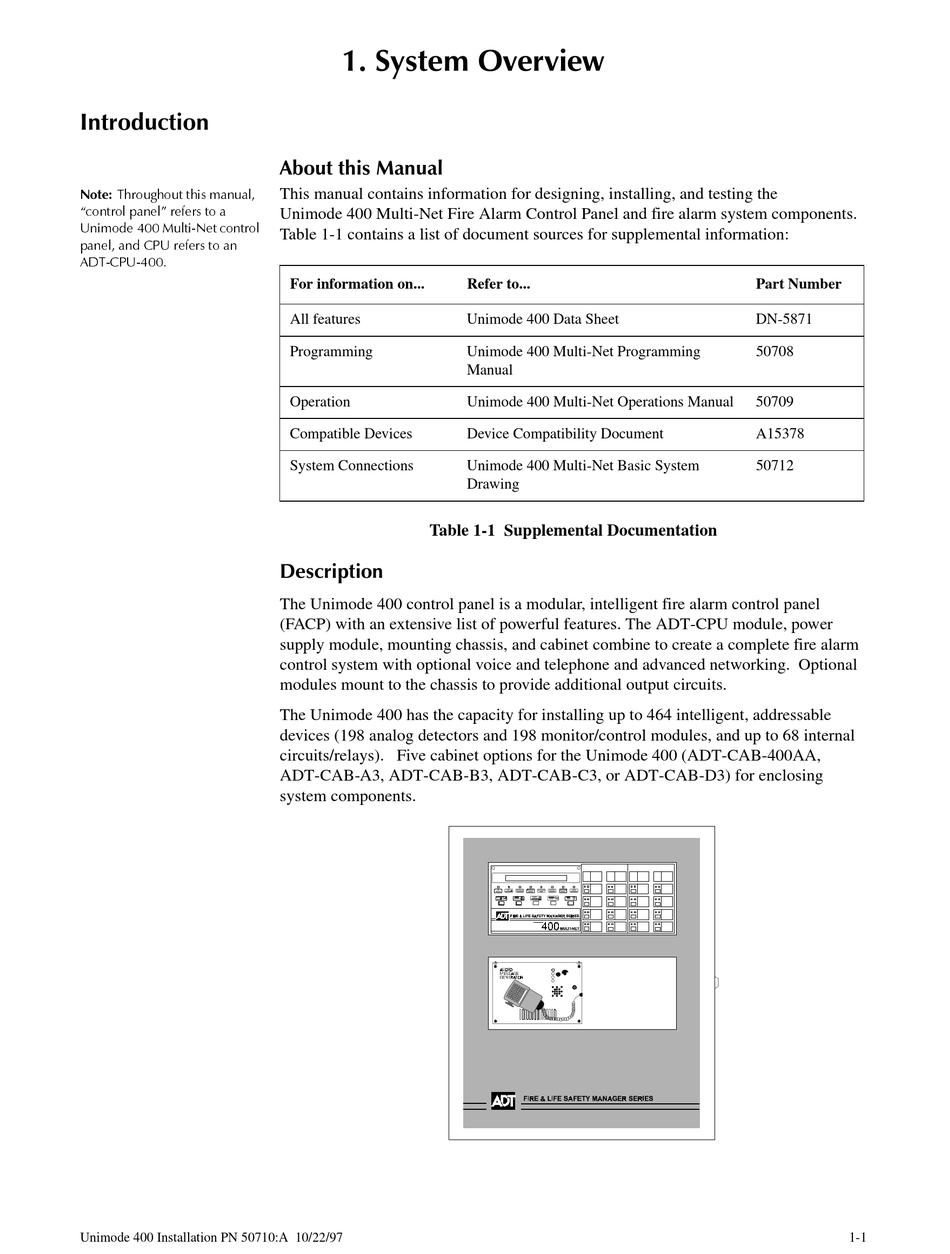

This manual contains information for designing, installing, and testing the
Unimode 400 Multi-Net Fire Alarm Control Panel and fire alarm system components.
Table 1-1 contains a list of document sources for supplemental information:
For information on...
All features
Programming
Operation
Compatible Devices
System Connections
Table 1-1 Supplemental Documentation
The Unimode 400 control panel is a modular, intelligent fire alarm control panel
(FACP) with an extensive list of powerful features. The ADT-CPU module, power
supply module, mounting chassis, and cabinet combine to create a complete fire alarm
control system with optional voice and telephone and advanced networking. Optional
modules mount to the chassis to provide additional output circuits.
The Unimode 400 has the capacity for installing up to 464 intelligent, addressable
devices (198 analog detectors and 198 monitor/control modules, and up to 68 internal
circuits/relays). Five cabinet options for the Unimode 400 (ADT-CAB-400AA,
ADT-CAB-A3, ADT-CAB-B3, ADT-CAB-C3, or ADT-CAB-D3) for enclosing
system components.
Refer to...
Unimode 400 Data Sheet
Unimode 400 Multi-Net Programming
Manual
Unimode 400 Multi-Net Operations Manual
Device Compatibility Document
Unimode 400 Multi-Net Basic System
Drawing
Part Number
DN-5871
50708
50709
A15378
50712
1-1
