5-8

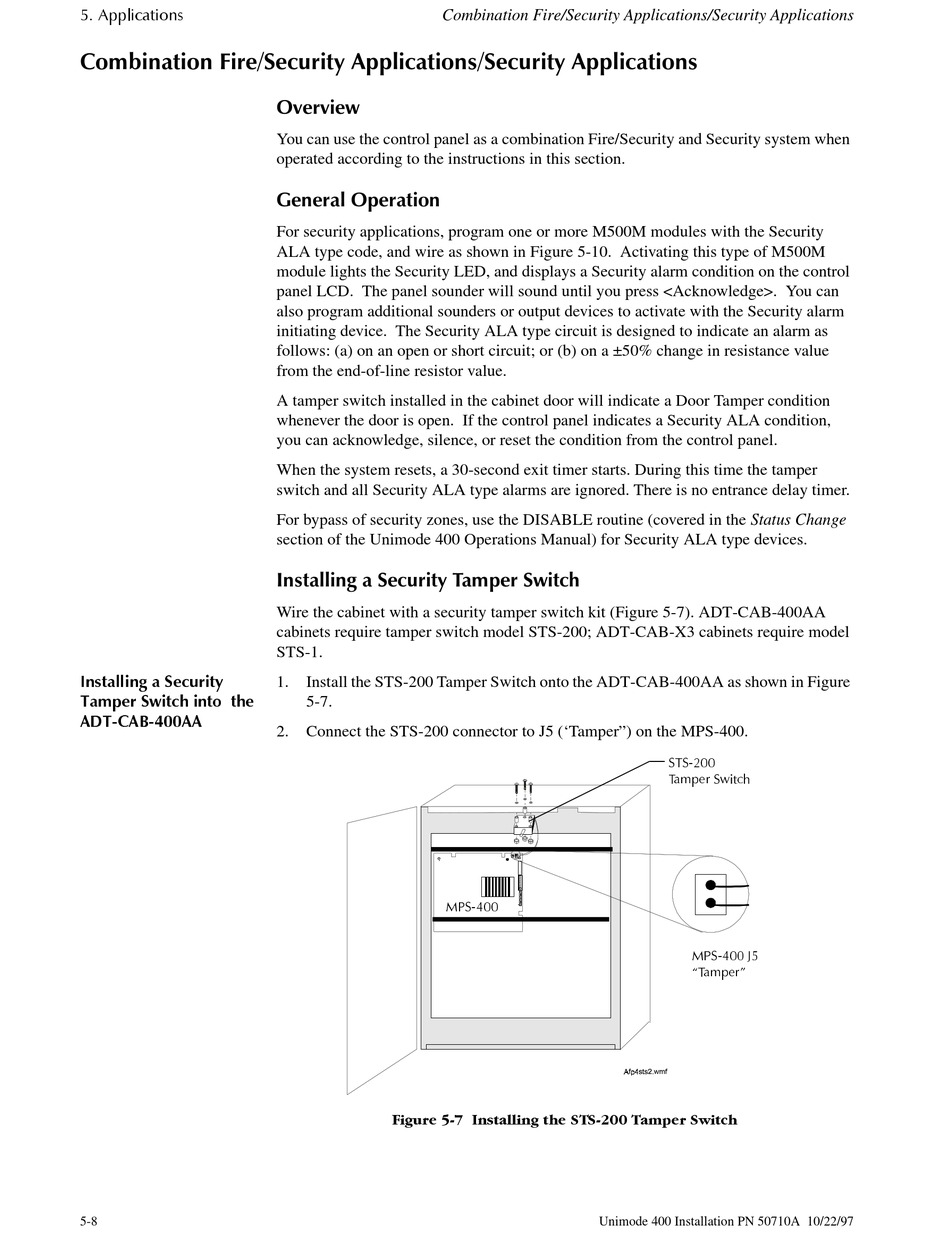

Combination Fire/Security Applications/Security Applications
You can use the control panel as a combination Fire/Security and Security system when
operated according to the instructions in this section.
For security applications, program one or more M500M modules with the Security
ALA type code, and wire as shown in Figure 5-10. Activating this type of M500M
module lights the Security LED, and displays a Security alarm condition on the control
panel LCD. The panel sounder will sound until you press <Acknowledge>. You can
also program additional sounders or output devices to activate with the Security alarm
initiating device. The Security ALA type circuit is designed to indicate an alarm as
follows: (a) on an open or short circuit; or (b) on a ±50% change in resistance value
from the end-of-line resistor value.
A tamper switch installed in the cabinet door will indicate a Door Tamper condition
whenever the door is open. If the control panel indicates a Security ALA condition,
you can acknowledge, silence, or reset the condition from the control panel.
When the system resets, a 30-second exit timer starts. During this time the tamper
switch and all Security ALA type alarms are ignored. There is no entrance delay timer.
For bypass of security zones, use the DISABLE routine (covered in the Status Change
section of the Unimode 400 Operations Manual) for Security ALA type devices.
Wire the cabinet with a security tamper switch kit (Figure 5-7). ADT-CAB-400AA
cabinets require tamper switch model STS-200; ADT-CAB-X3 cabinets require model
STS-1.
1. Install the STS-200 Tamper Switch onto the ADT-CAB-400AA as shown in Figure
5-7.
2. Connect the STS-200 connector to J5 ('Tamper") on the MPS-400.
036
)LJXUH  ,QVWDOOLQJ WKH 676 7DPSHU 6ZLWFK
676
7DPSHU 6ZLWFK
036 -
´7DPSHUµ
Unimode 400 Installation PN 50710A 10/22/97
