Summary of Contents for Bodyworx A630U

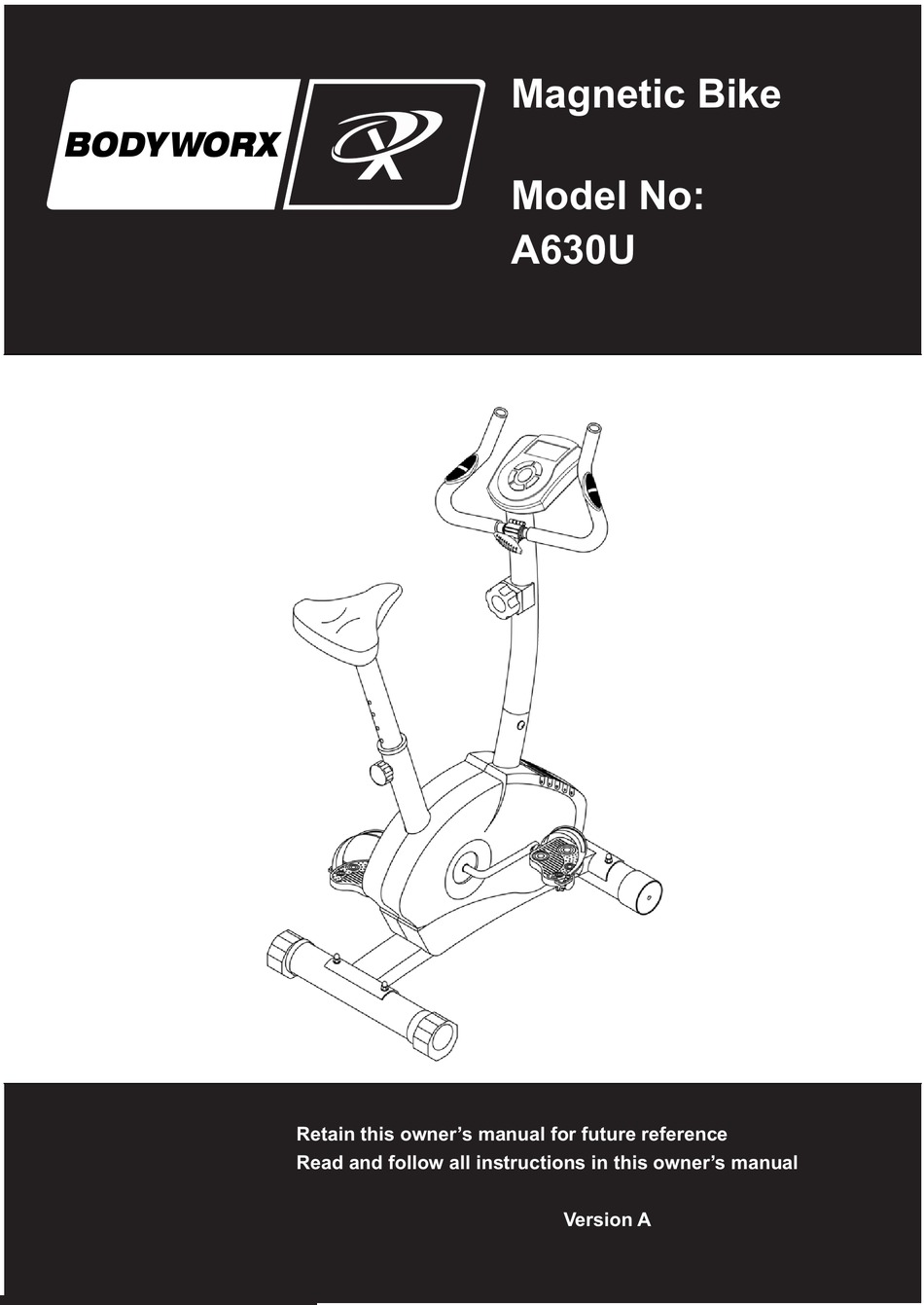

- Page 1 Magnetic Bike BODYWORX BODY WORX Model No: A630U Retain this owner’s manual for future reference Read and follow all instructions in this owner’s manual Version A...
-
Page 2: Table Of Contents
These quality products are designed, manufactured, tested and certified for enhanced Fitness Training. Dear Customer, We want to thank you for having chosen a and wish you a lot of fun and success during MAGNETIC BIKE training. Please note and follow the enclosed safety and assembly instructions carefully. If you have questions please do not hesitate to contact us. -
Page 3: Hardware Package
Hardware Package - 3 -... -
Page 4: Assembly Instructions
Assembly Instructions Step 1 Step 3 1. Fasten front stabilizer (3) and rear stabilizers (2) to 1. Release 2 bolts at back of computer. main frame (1)，secure with 4 sets of carriage 2. Connect upper computer cable (13) with cable at bolt (20), washer (22) &... - Page 5 Step 5 Step 7 1. Release T-knob (36) and sleeve (39) from fastener 1. Release saddle post knob (44). Insert saddle post (5) at handlebar post (4). Open fastener and place the to main frame (1), choose desired position and handlebar (33) onto fastener.
-
Page 6: Computer Instructions
Computer Instructions The things you should know before exercise SLEEP MODE: The monitor will entry SLEEP mode (LCD off) when there is no signal input and no key be pressed after 4 minutes. Functions and Features: 1. SCAN: At the exercise mode, press the MODE key until appears the SCAN on the LCD. Monitor will display the following function and each function will keep 6 seconds on the main screen. -
Page 7: Training Instructions
Training Instructions To achieve a considerable improvement of your With increasing improvement of fitness the training physical resistance and your health, some aspects of intensity should be increased to 70% - 85% of your how to find the most efficient amount of training should maximum pulse rate. -
Page 8: Training Pulse Rate
Training Pulse Rate The HEART RATE CHART is only for the customer reference. - 8 -... -
Page 9: Parts List
Parts List Description Q’ty Description Q’ty Main frame 32 crank arm set Rear stabilizer 33 Handlebar Front stabilizer 34 Foam grips (pair) Handlebar post 35 End caps Saddle post 36 T-knob Saddle 37 Fastener (for saddle post) Idle wheel fixture 38 Bolt ( for computer) Ring (for front post &... -
Page 10: Exploded Drawing
Exploded Drawing The owner’s manual is only for the customer reference. - 10 -... - Page 11 BODYWORX BODYWORX...
