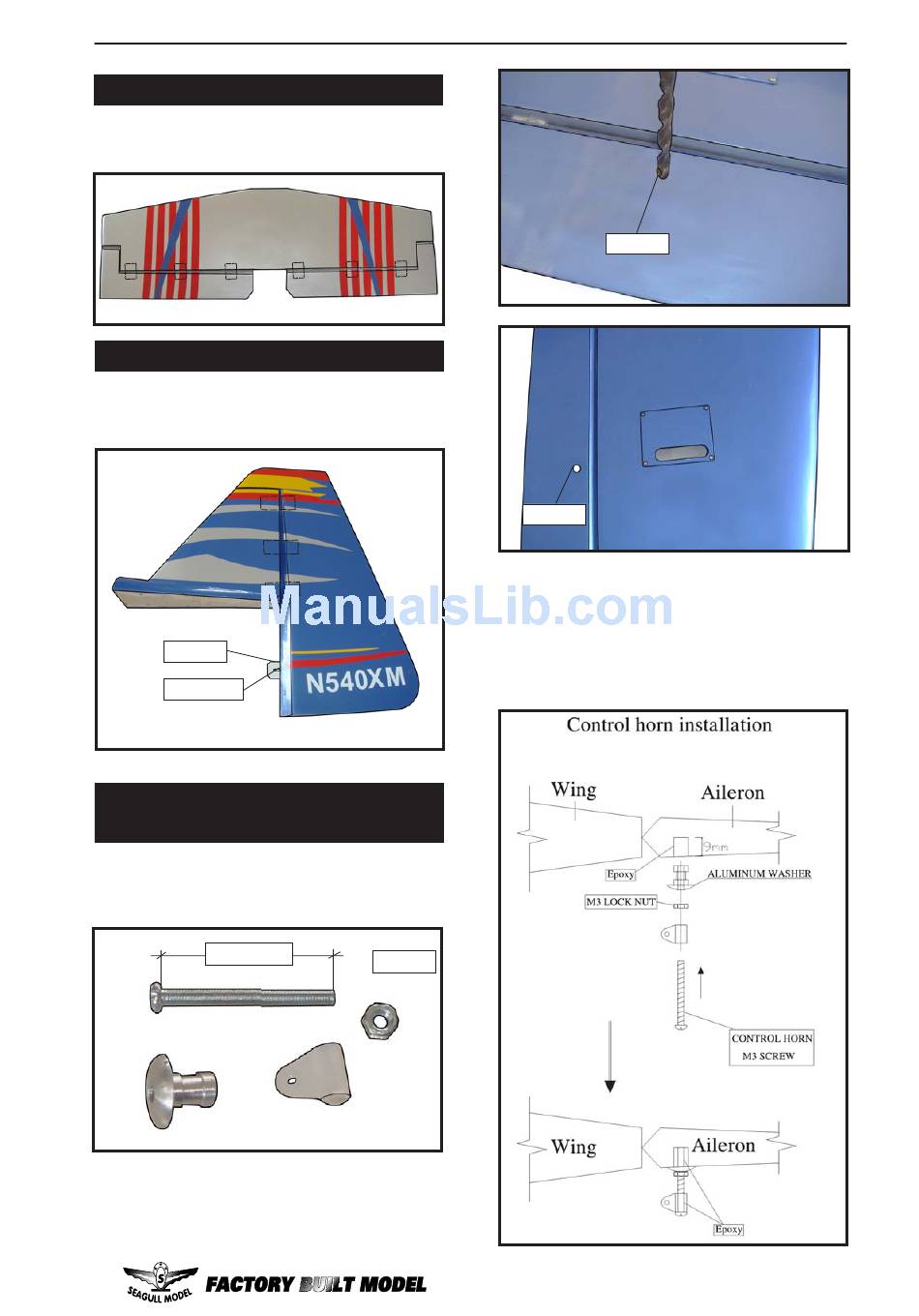

HINGING THE ELEVATOR.

Glue the elevator hinges in place using the
same techniques used to hinge the ailerons.

HINGING THE RUDDER.

Glue the rudder hinges in place using the
same techniques used to hinge the ailerons.
Hinge.
C/A glue.
INSTALL THE AILERONS CONTROL
HORN.
1) Locate the hardware necessary to install
the control horns for the ailerons.
3x35mm.
2) Position the control horn on the bottom of
the aileron. You will see pre-drill hole 6mm for
the horn mounting screw on the aileron.
www.seagullmodels.com
2 sets.
6mm.
6mm.
3) Place epoxy into hole. This will harden the
threads and prevent the crews from pulling
loose.
4) Thread a control horn end with aluminum
washer, lock nut until the top edge of the end is
9mm from the vase of the horn as shown.
