Media Converter/Signal Repeater
SNMP User Manual
Access Configuration

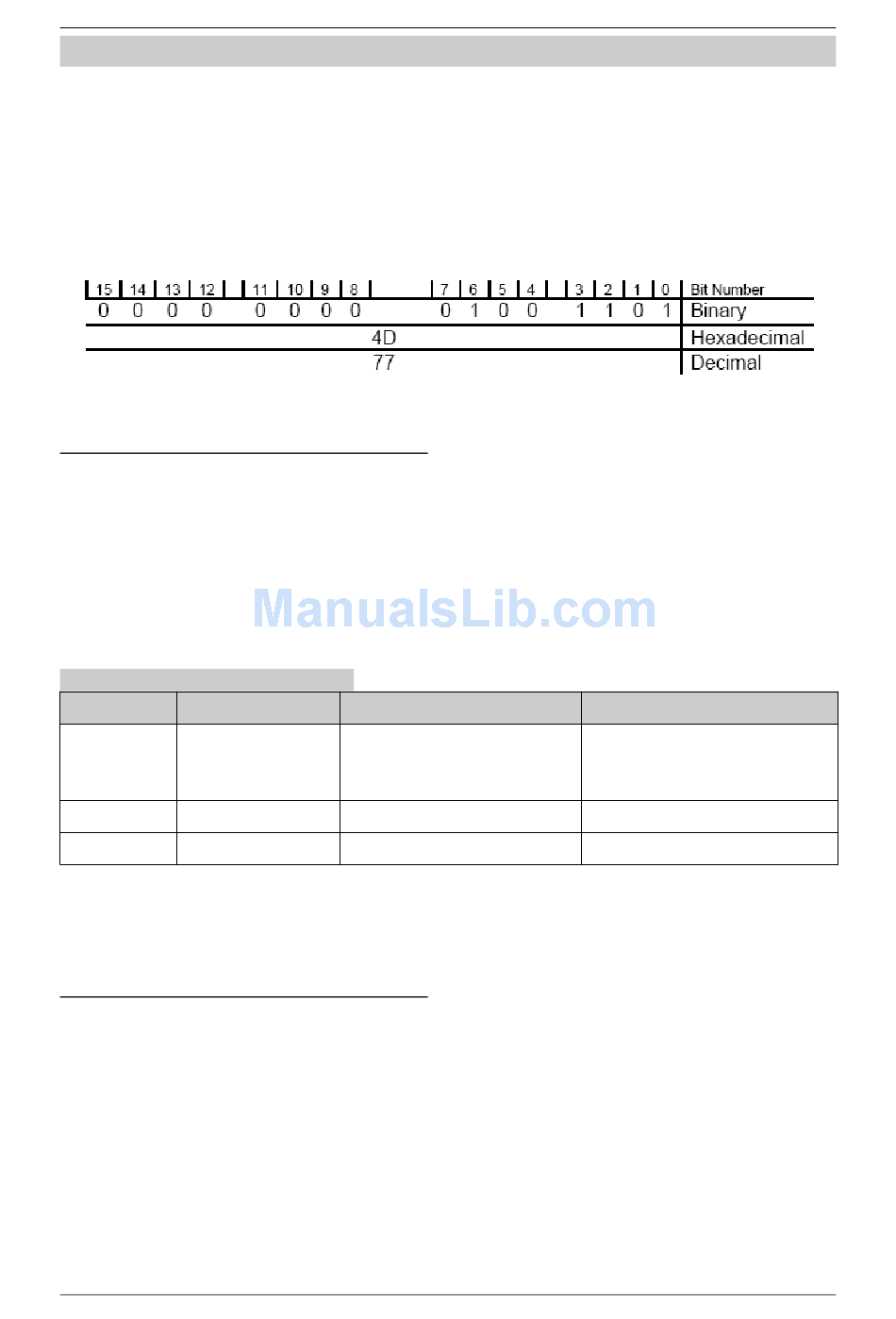

Certain aspects of the Line 1 and Line 2 are user modifiable. In the following
procedures the modifications are indicated at bit level. Take note of your SNMP
manager's requirements. For example setting the bits 6, 3, 2 and 0 to 1 will yield the
following values:
Line 1 optical interface Configuration
One object is dedicated to the Line 1 optical interface configuration:
•
ms430580mCfgportaTrscvCtrl
This allows the configuring of the initialisation of the Line 1 SFP laser state.
Location: \microsens\modulems430580m\ms430580mConfig\ms430580mCfgStartup\
ms430580mtableclientStartup\
The following table details the meaning of each bit as well as the default values:
ms430580mCfgportaTrscvCtrl
Bit Default value
Bit 0 0
Bit 7-1 0000000
Bit 15-8 00000000
Line 2 optical interface Configuration
One object is dedicated to the Line 2 optical interface configuration:
•
ms430580mCfgportbTrscvCtrl
This allows the configuring of the initialisation of the Line 2 SFP laser state.
Location: \microsens\modulems430580m\ms430580mConfig\ms430580mCfgStartup\
ms430580mtablelineStartup\
MICROSENS GmbH & Co. KG - Küferstraße 16 - 59067 Hamm - Tel. +49 2381/9452 0 - Fax 9452 100 - www.microsens.com
Bit Name
Line 1 SFP Laser Off
Reserved
Reserved
page 5/29
Description
Line 1 SFP Laser state:
0: SFP Laser ON
1: SFP Laser OFF
Set to Default value
Set to Default value
