Microsens MS656059 Quick Installation Manual

Q I
uick nstallation

Introduction

-
MS656059 is a cost effective solution for the conversion between 10/100Base-TX
100
and Base-FX interface, it allows you to extend communication distance by optical
fiber. MS656059 supports MDI/MDIX auto detection, so you don t need to use cross-
over wires. MS656059 supports wide operating temperature range from -40..70
and accepts a wide voltage range from dual 12..48 VDC power inputs, so it is suitable
for harsh operating environments.
-
MS656059 also supports the LFP (Link Fault Pass through)
side of the link fails, the other side continues transmitting packets, and waits for a
response that never arrives from the disconnected side. Use the DIP-Switch to
,
enable the LFP function then MS656059 will force the link to shutdown as soon as
,
noticed that the other link has failed giving the application software a chance to react
a
to the situation. Therefore, the MS656059 is reliable media converter and can
satisfy most demands of operating environment.

Features

Supports 1 port 10/100Base-TX auto-negotiation and auto-MDI/MDI-X
Supports Ethernet to fiber or Ethernet to SFP port
Supports LFP (Link Fault Pass-through) function
Supports full/half duplex operation mode
Supports store and forward transmission
Provided DIP-Switch to setting function
High reliable and rigid IP-30 housing
DIN-Rail and wall-mount enabled

Connections of Media Converter

Power

Supply
230 VAC
12..48 VDC
Industrial
100Base-FX
Ethernet to Fiber
fiber link
media converter
Fiber Switch
10/100Base-TX
copper link
PC
MS656059
G
uide

Specifications

'
o C
MICROSENS P/N
.
feature When one
Physical Ports Physical Ports
10/100Base-TX Ports in
RJ-45 Auto MDI/MDIX
100Base-FX SFP port

Technology

IEEE 802.3 for 10Base-T,
Ethernet standards
IEEE 802.3u for 100Base-TX and 100Base-FX,
IEEE 802.3x for Flow control
Processing
Store-and-Forward
DIP-Switch 1 for LFP mode selection :
DIP-Switch 2 for Ethernet speed selection : (ON)10Mbps / (OFF) 10/100Mbps Auto-negotiate
DIP-Switch setting
DIP-Switch 3 for Ethernet full/half duplex selection : (ON)
DIP-Switch 4 for fiber full/half duplex selection : (ON) Half-Duplex /

LED Indicators

Green : Power LED x 2
Power indicator
Green for port Link/Act -(ON) Link up / (Blinking) Acting / (OFF) Link down
10/100Base-TX RJ-45 port indicator Amber for 100Mbps/10Mbps indicator- (ON) Working at 100Mbps / (OFF) Working at 10Mbps
Green for port duplex indicator- (ON) Full-Duplex / (OFF) Half-Duplex
Green for fiber port Link/Act - (ON) Link up / (Flash) Acting / (OFF) Link down
100Base-FX fiber port indicator
Green for fiber port duplex indicator- (ON) Full-Duplex/ (OFF) Half-Duplex
LFP status indicator Amber LED - (ON) LFP indication / (OFF) LFP function disable
Power
Input power
Dual 12..48 VDC power inputs on 4-pin terminal block
Power consumption(Typ.)
2.2 Watts
Overload current protection
Present
Reverse polarity protection Present on terminal block
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 26.1 (W) x 70 (D) x 95 (H)mm (1.03 x 2.76 x 3.74 inch)
Weight (g) 213 g
Environmental
Storage Temperature
-40..85 C (-40 to 185 F)
Operating Temperature -40..70 C (-40 to 158 F)
Operating Humidity
5%..95% Non-condensing
Regulatory approvals
EMI
CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EMS
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock
IEC60068-2-27
Free Fall
IEC60068-2-32
Vibration IEC60068-2-6
Safety
EN60950-1
Warranty 5 years
MS656059
1 1
1
(ON) enable / (OFF) disable
Half-Duplex /
(OFF) Full/Half-Duplex Auto-negotiate
(OFF) Full Duplex
o o
o o
Industrial Media Converter

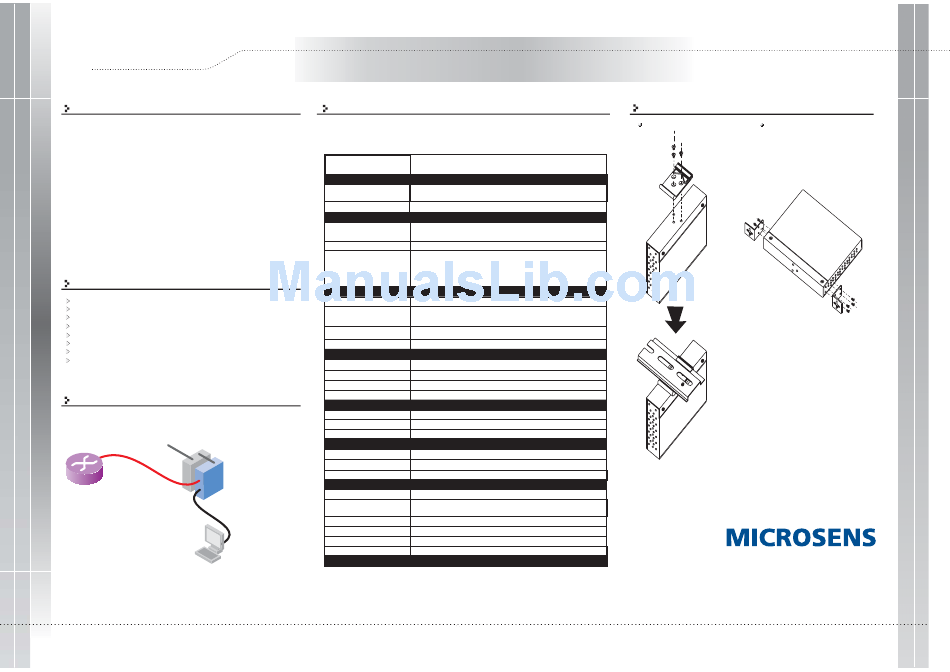

Installation

Din-Rail Install Step

Wall-mounted Install Step

TEL: +49-2381-9452-0
FAX: +49-2381-9452-100
Quick Installation Guide
Version 1.0
Website: www.microsens.com
E-mail: info@microsens.com
