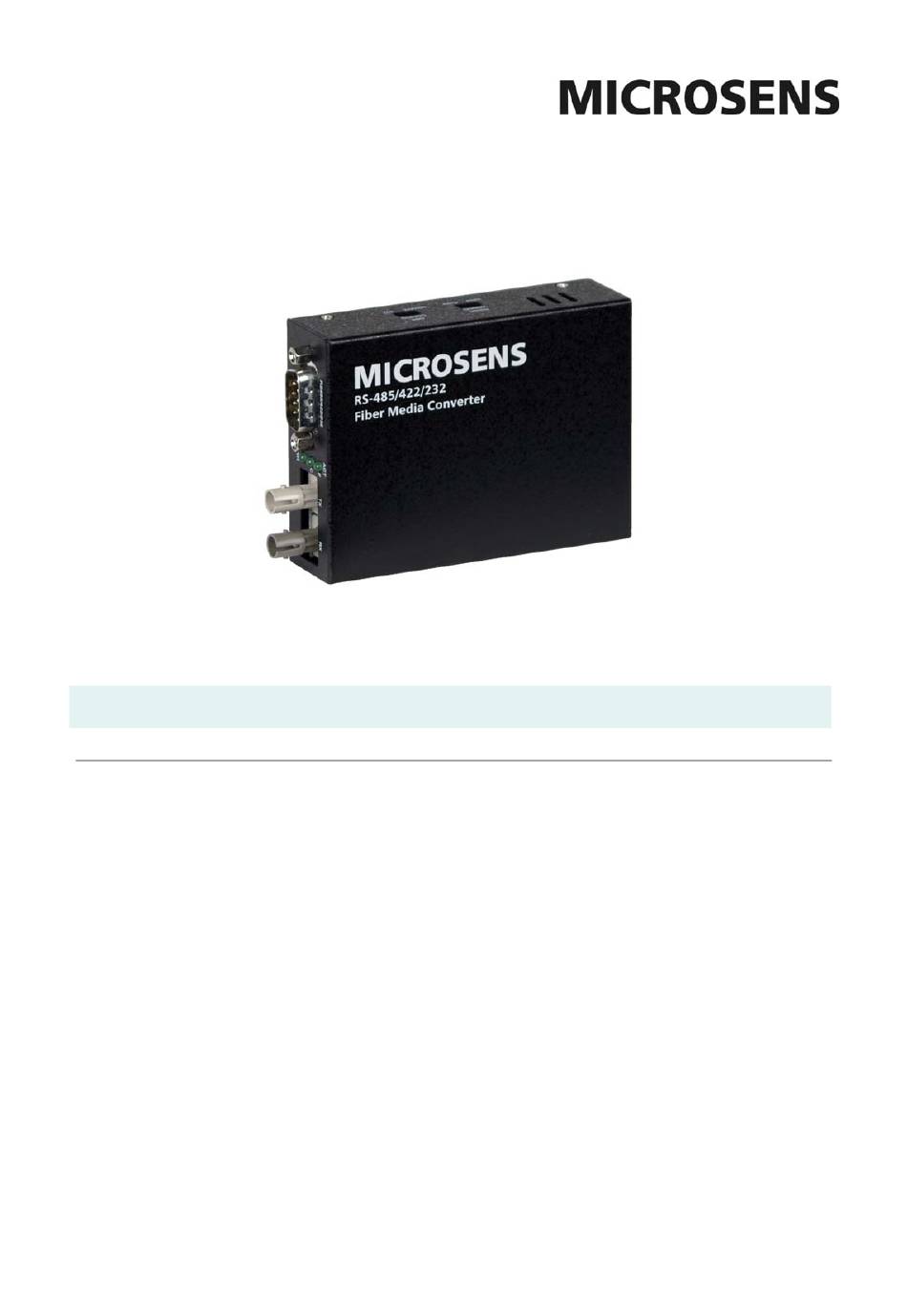

Datasheet
Fiber-Converter
RS-232/422/485
General Information
The optical fiber converter RS-232/422/485 allows a quick and cost-effective media
conversion from fiber to RS-232/422/485.
Distances of up to 2 km can be covered over multimode fiber, regardless of the data rate.
A special version for single-mode fibers allows distances of up to 20 km.
©2011_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Microsens MS400131-V2
Summary of Contents for Microsens MS400131-V2
-
Page 1: General Information
RS-232/422/485. Distances of up to 2 km can be covered over multimode fiber, regardless of the data rate. A special version for single-mode fibers allows distances of up to 20 km. ©2011_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com... -
Page 2: Technical Data
RS-422/485 max. 1220m Standards Standards EN 55022: 1998+A1:2000+A2:2003, Class EN 61000-3-2: 2000 EN 61000-3-3: 1995+A1:2001 55024/1998+A1:2001+A2:2003, Class A IEC 61000-4-2:2001 IEC 61000-4-3:2002+A1:2002 IEC 61000-4- 4:1995+A1:2000+A2:2001 IEC 61000-4-5:2001 IEC 61000-4-6:2003 IEC 61000-4-8:2001 IEC 61000-4-11:2001 ©2011_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com... -
Page 3: Optical Features
20 km (fullduplex) Transmission Power: -15 dBm Receive Sensitivity: -34 dBm Wave-Length: 1310 nm Connector: Construction D A TA PW R R S-485/422/232 M edia C onverter Picture 1: front view Picture 2: side view ©2011_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com... - Page 4 Connector 2 (RS-422/RS-485 Certificate) Description Certificate inactive (Standard) activated 120 Ω-load resistance for RS-485 activated 100 Ω- load resistance for RS-422 Don’t use Note: Don’t start the SW2.1 and the SW2.2 in the same time ©2011_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com...
-
Page 5: Connecting Diagram
2 RS232 RXD or RS422/485-4D RX+ or RS485-2D TX/RX+- 1 idle idle 6 Picture 5:DB9 Connector Optical Fiber Connector RS-232 RS-422 Optical Fiber RS-485 (DB9 or Fiber-Converter connectio RS-232/422/485 n block) Picture 6: Optical Fiber Network Connector ©2011_MICROSENS GmbH & Co. KG_Küferstr. 16_59067 Hamm/Germany_www.microsens.com... -
Page 6: Led Display
This document in whole or in part may not be duplicated, reproduced, stored or retransmitted without prior written permission of MICROSENS GmbH & Co. KG. All information in this document is provided ‘as is’ and subject to change without notice. MICROSENS GmbH & Co. KG disclaims any liability for the correctness, completeness or quality of the information provided, fitness for a particular purpose or consecutive damage.
