Matrix 6/816 User Manual

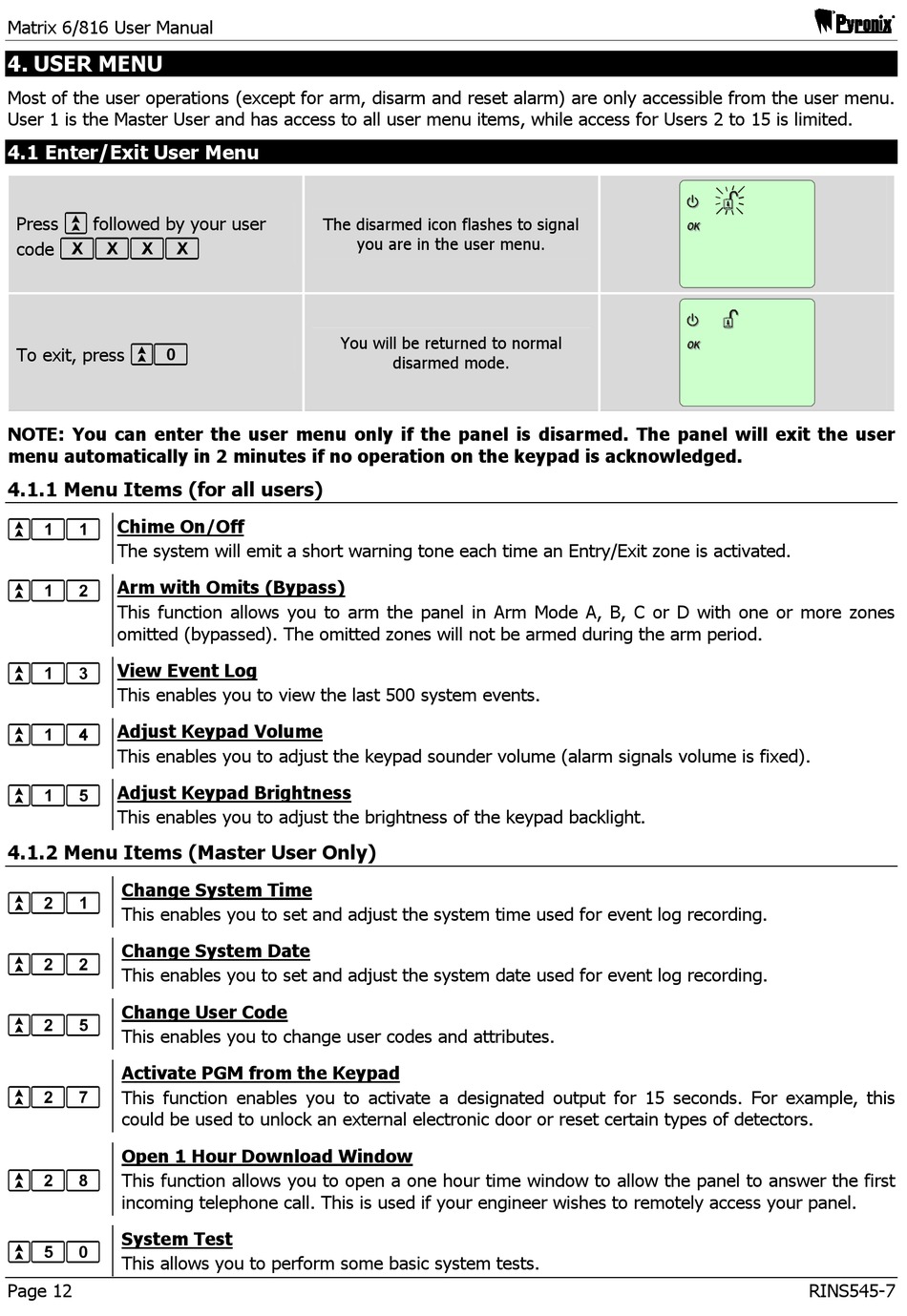

4. USER MENU

Most of the user operations (except for arm, disarm and reset alarm) are only accessible from the user menu.
User 1 is the Master User and has access to all user menu items, while access for Users 2 to 15 is limited.

4.1 Enter/Exit User Menu

Press ` followed by your user
code ffff
To exit, press `0
NOTE: You can enter the user menu only if the panel is disarmed. The panel will exit the user
menu automatically in 2 minutes if no operation on the keypad is acknowledged.
4.1.1 Menu Items (for all users)
`11 Chime On/Off
The system will emit a short warning tone each time an Entry/Exit zone is activated.
`12 Arm with Omits (Bypass)
This function allows you to arm the panel in Arm Mode A, B, C or D with one or more zones
omitted (bypassed). The omitted zones will not be armed during the arm period.
`13 View Event Log
This enables you to view the last 500 system events.
`14 Adjust Keypad Volume
This enables you to adjust the keypad sounder volume (alarm signals volume is fixed).
`15 Adjust Keypad Brightness
This enables you to adjust the brightness of the keypad backlight.
4.1.2 Menu Items (Master User Only)
Change System Time
`21
This enables you to set and adjust the system time used for event log recording.
Change System Date
`22
This enables you to set and adjust the system date used for event log recording.
Change User Code
`25
This enables you to change user codes and attributes.
Activate PGM from the Keypad
`27
This function enables you to activate a designated output for 15 seconds. For example, this
could be used to unlock an external electronic door or reset certain types of detectors.
Open 1 Hour Download Window
`28
This function allows you to open a one hour time window to allow the panel to answer the first
incoming telephone call. This is used if your engineer wishes to remotely access your panel.
System Test
`50
This allows you to perform some basic system tests.
Page 12
The disarmed icon flashes to signal
you are in the user menu.
You will be returned to normal
disarmed mode.
RINS545-7
