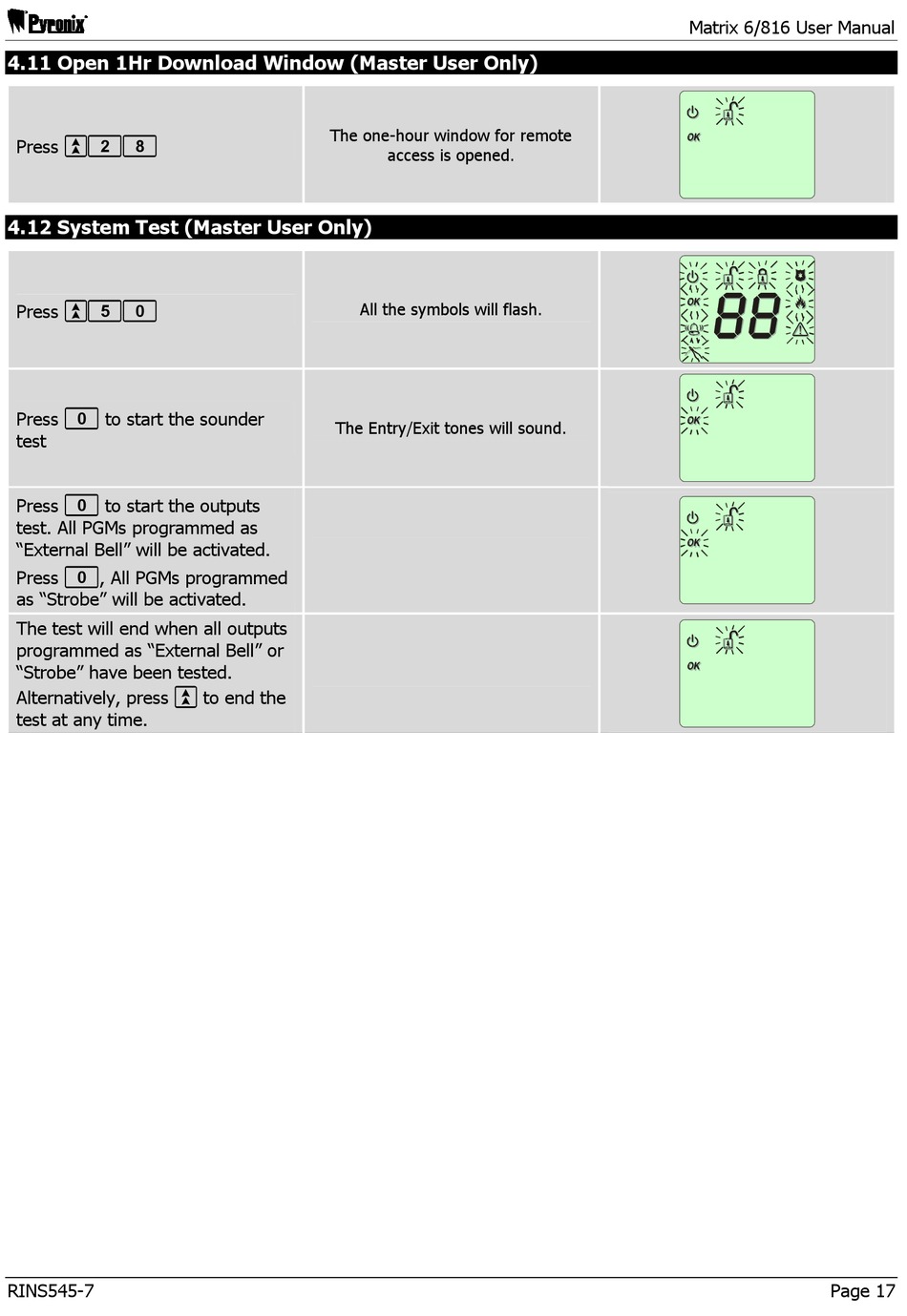

Open 1Hr Download Window (Master User Only); System Test (Master User Only) - Pyronix MATRIX 6 User Manual

4.11 Open 1Hr Download Window (Master User Only)

Press `28

4.12 System Test (Master User Only)

Press `50
Press 0 to start the sounder
test
Press 0 to start the outputs
test. All PGMs programmed as
"External Bell" will be activated.
Press 0, All PGMs programmed
as "Strobe" will be activated.
The test will end when all outputs
programmed as "External Bell" or
"Strobe" have been tested.
Alternatively, press ` to end the
test at any time.
RINS545-7
The one-hour window for remote
access is opened.
All the symbols will flash.
The Entry/Exit tones will sound.
Matrix 6/816 User Manual
Page 17
