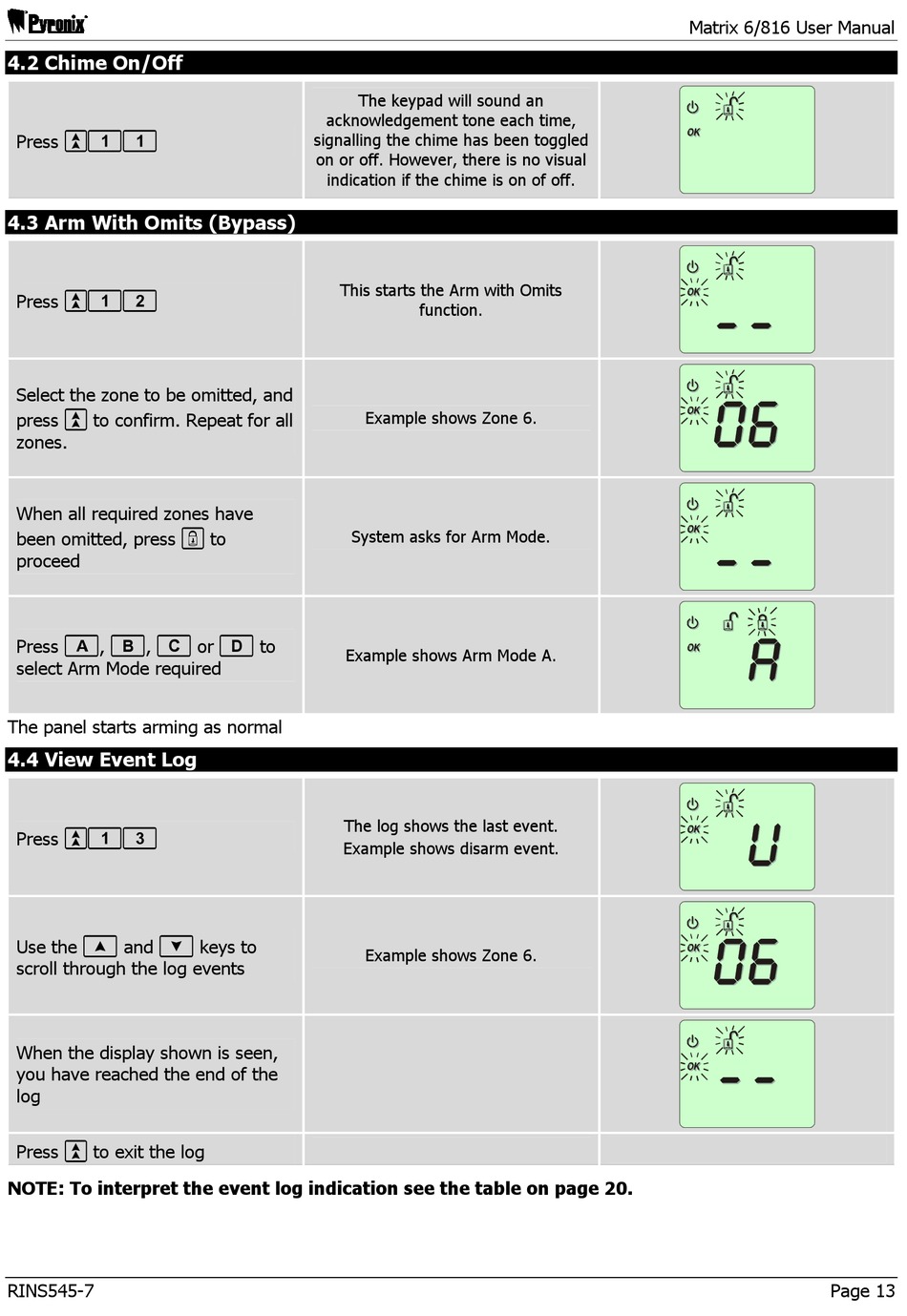

Chime On/Off; Arm With Omits (Bypass); View Event Log - Pyronix MATRIX 6 User Manual

4.2 Chime On/Off

Press `11

4.3 Arm With Omits (Bypass)

Press `12
Select the zone to be omitted, and
press ` to confirm. Repeat for all
zones.
When all required zones have
been omitted, press - to
proceed
Press a, b, c or d to
select Arm Mode required
The panel starts arming as normal

4.4 View Event Log

Press `13
Use the [ and ] keys to
scroll through the log events
When the display shown is seen,
you have reached the end of the
log
Press ` to exit the log
NOTE: To interpret the event log indication see the table on page 20.
RINS545-7
The keypad will sound an
acknowledgement tone each time,
signalling the chime has been toggled
on or off. However, there is no visual
indication if the chime is on of off.
This starts the Arm with Omits
function.
Example shows Zone 6.
System asks for Arm Mode.
Example shows Arm Mode A.
The log shows the last event.
Example shows disarm event.
Example shows Zone 6.
Matrix 6/816 User Manual
Page 13
