Placing a Single Original on
the Exposure Glass
Place originals that cannot be placed
in the optional Document Feeder
(ADF), such as a book, on the expo-
sure glass one page at a time.
A A A A

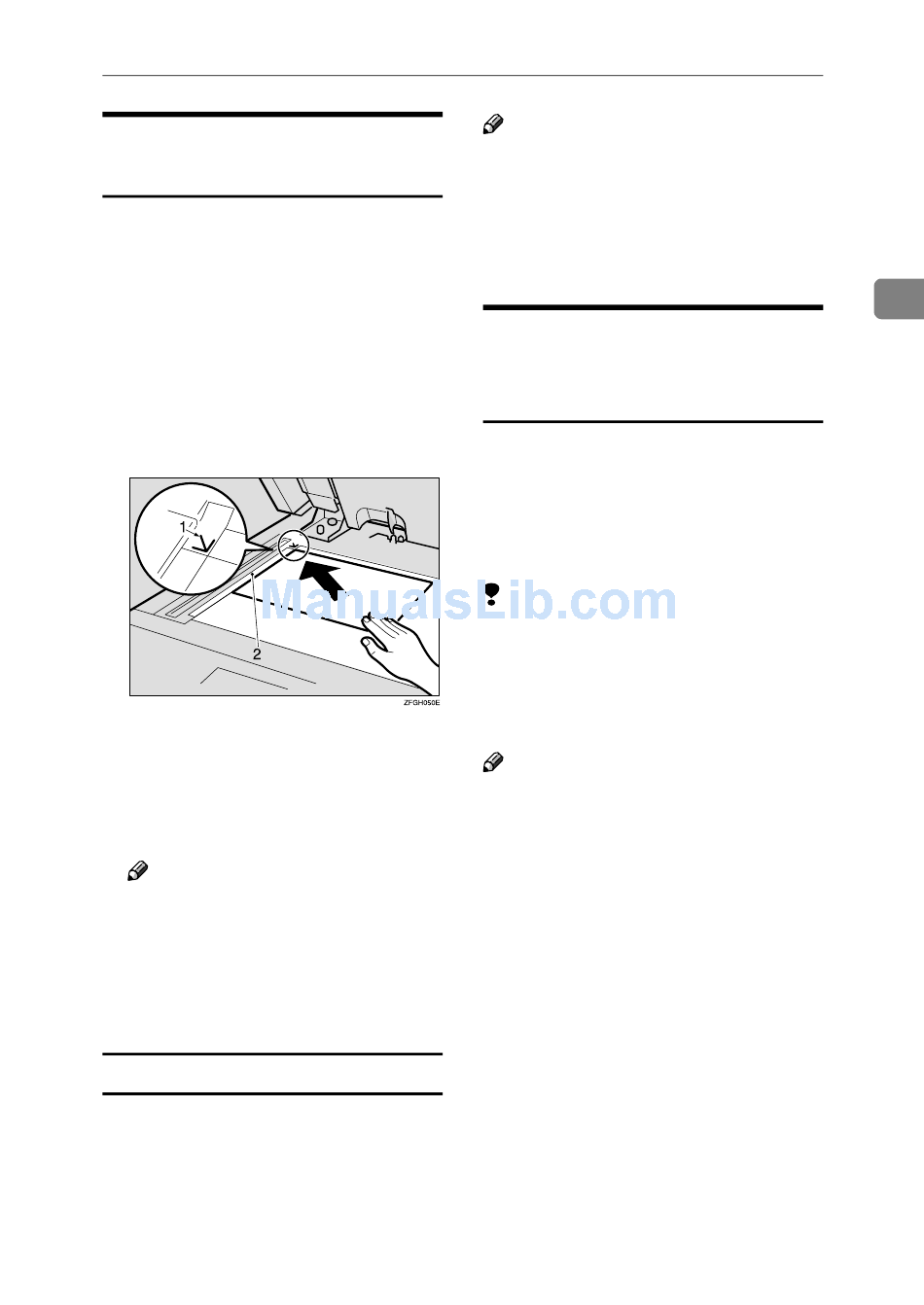

Lift the exposure glass cover or
the optional Document Feeder
(ADF) by at least 30 degrees. Place
the original face down on the ex-
posure glass. The original should
be aligned to the left scale.
1.
Reference mark
2.
Scale
B B B B
Close the optional Document
Feeder (ADF).
Note
❒ When setting a bound original,
the received image may contain
some black areas. To reduce this
effect, hold down the original to
prevent its bound part from ris-
ing.

Bound original page order

When setting bound originals (books,
magazines, etc.), you can choose to
have either the left page or right page
sent first. See p.45 "Book Fax", Fac-
simile Reference (option) <Advanced
Features> .
Note
❒ You can choose whether the left
page or right page is sent first. See
p.113 "Changing the User Parame-
ters", Facsimile Reference (option)
<Advanced Features> (Swich14,
Bit1).
Placing Originals in the
Optional Document Feeder
(ADF)
Use the optional Document Feeder
(ADF) to scan in a stack of originals in
one operation. The optional Docu-
ment Feeder (ADF) can handle both
single-sided and double-sided origi-
nals.
Limitation
❒ Place all the originals to be sent in
a single stack.
❒ You cannot place originals in the
optional Document Feeder (ADF)
one page at a time or in sheaves.
Note
❒ The maximum document length is
1200 mm (47").
❒ If you send documents longer than
420 mm (17"), select Long Docu-
ment mode with the User Parame-
ters. If a jam occurs, the document
might be damaged because scan-
ning will not stop. See p.18 "Set-
tin g a Sc an Area" . See p .11 3
"Changing the User Parameters",
Facsimile Reference (option) <Ad-
vanced Features> (Swich14, Bit1).
❒ Documents longer than 432 mm
(17") must be sent by memory
transmission (immediate transmis-
sion is not possible).
❒ If an original jams, press the
{ { { { Clear/Stop} } } } key then remove the
original carefully.
