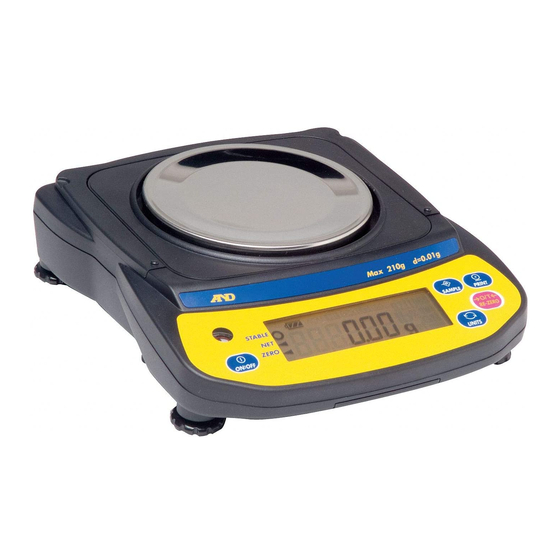

Ej series compact balance

Advertisement

1WMPD4001917D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EJ-120 and is the answer not in the manual?

Questions and answers

Summary of Contents for AND EJ-120

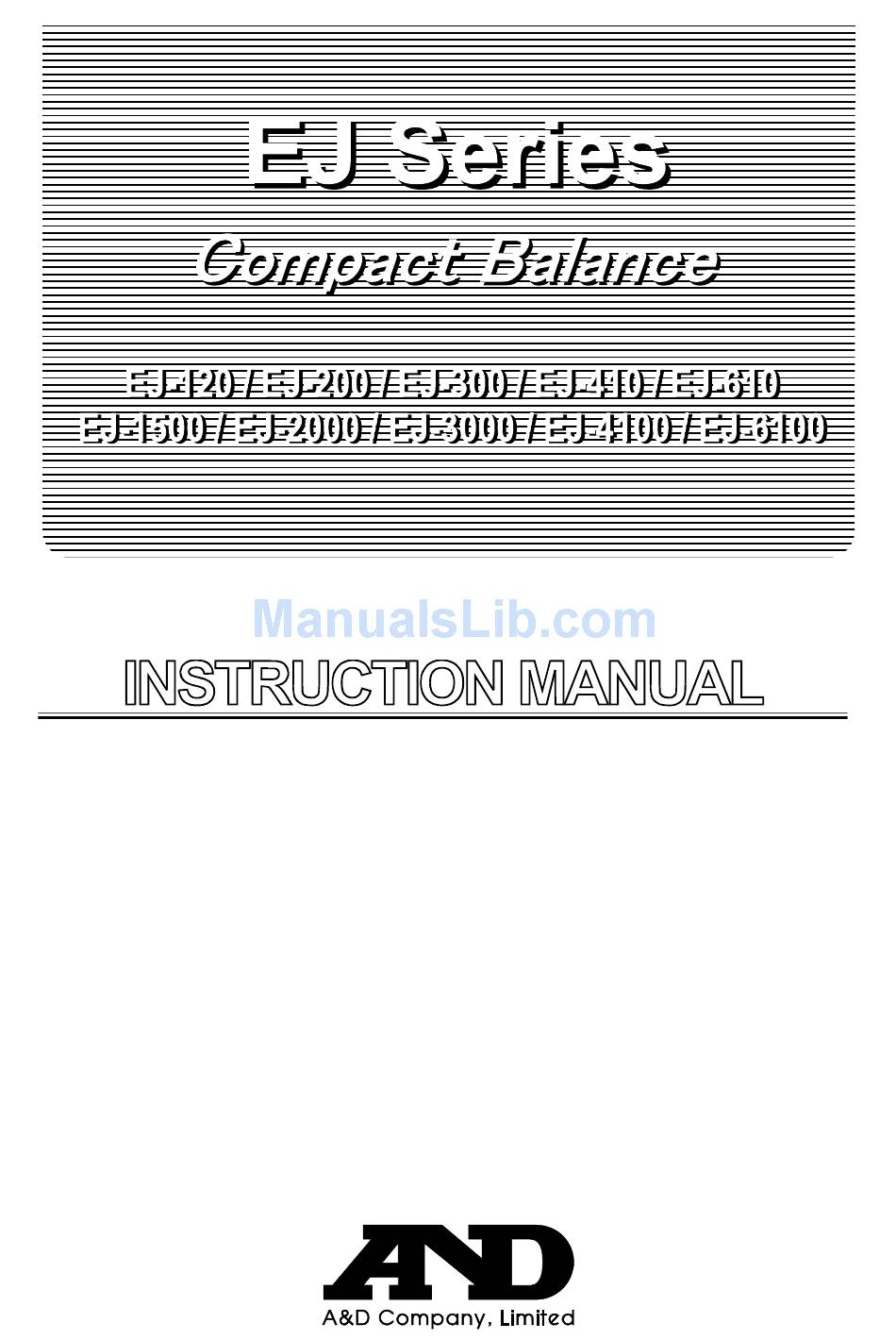

  • Page 1 1WMPD4001917D...
  • Page 2: Compliance With Fcc Rules

    Please note that this equipment generates, uses and can radiate radio frequency energy. This equipment has been tested and has been found to comply with the limits of a Class A computing device pursuant to Subpart J of Part 15 of FCC rules. These rules are designed to provide reasonable protection against interference when the equipment is operated in a commercial environment.
  • Page 3: Table Of Contents

    4-1. Setting up your balance .........................5 4-2. Power source..........................5 4-3. Breeze break ..........................6 4-4. Storage ............................6 5. OPERATION........................7 5-1. Turn the power ON and OFF ......................7 5-2. LCD backlight ..........................7 5-3. Units ..............................8 5-4. Selecting a weighing unit .......................9 5-5. Basic operation ..........................9 5-6.
  • Page 4 11. MAINTENANCE ......................34 11-1. Notes on maintenance .......................34 11-2. Error codes ..........................34 12. SPECIFICATIONS .......................36 12-1. EJ series balances........................36 12-2. Other weighing units ........................37 12-3. Options ............................38 12-4. Dimensions ..........................38 GRAVITY ACCELERATION MAP ..................39...
  • Page 5: Introduction

    1. INTRODUCTION This manual describes how this balance works and how to get the most out of it in terms of performance. The EJ series balances have the following features: The EJ series are high-resolution type electronic balances having a display resolution of 1/12,000 ~ 1/60,000.
  • Page 6: Part Names And Functions

    STABLE NET indicator Weighing units ZERO indicator ZERO Weighing pan ON:OFF key Round pan for EJ-120 / EJ-200 / EJ-300 / EJ-410 / EJ-610. Spirit level Leveling foot SAMPLE key Calibration switch cover PRINT key AC adapter jack (bottom) UNITS key...
  • Page 7: Setting Up

    Replace used batteries with four new ones when “lb0” is displayed. Do not mix used and new batteries. Do not mix battery types. It may cause damage to the batteries or the balance. The battery life depends on the ambient temperature, how used and so on.
  • Page 8: Breeze Break

    Damage due to battery leakage is not covered by the warranty. Installing batteries 1. Turn off the balance and disconnect the AC adapter if used. 2. Slide the battery cover off. 3. Push the battery box up to unhook and pull it out.
  • Page 9: Operation

    (About units: Only the available units will be displayed.) The display turns off except for a weighing unit and the decimal point. The balance waits for the weight value to become stable, and then, zero will be displayed with the ZERO indicator (power-on zero).
  • Page 10: Units

    “Newton” is the value calculated by “(weight in grams) x (9.80665 m/s ) / 1000”. The unit “t (tola)” and three kinds of “tl (tael)” are for special versions only. One of them can be selected and installed at the factory.
  • Page 11: Selecting A Weighing Unit

    In this case the ZERO and NET indicators turn on. Precautions during operation Make sure that the STABLE indicator is on whenever reading or storing a value.
  • Page 12: Counting Mode (Pcs)

    5-6. Counting mode (pcs) The balance weighs the sample pieces and calculates the unit weight. Using the sample unit weight, the scale counts the number of items in the sample. As for the minimum unit weight acceptable, see the function setting “Umin”.
  • Page 13: Percent Mode (%)

    9. The balance re-calculates the unit weight while the ACAI indicator is blinking. Do not touch the balance or samples on the pan until the ACAI indicator turns off. 10. Counting accuracy is improved when the ACAI indicator turns off. Each time the above operation is performed, a more accurate unit weight will be obtained.
  • Page 14: Comparator

    +4d or less than -4d). d = the smallest display division. e.g.: 4d = four display divisions The upper limit and lower limit numerical values are common to each of the weighing, counting and percent mode. The example for EJ-120/200/300/410/610 is as follows.
  • Page 15 Entering the upper and lower limit values 6. With Cp Hi displayed, press the PRINT key. Cp Hi Enter the upper limit value using the following keys. SAMPLE key To select the digit blinking to be changed. RE-ZERO key To set the value of the digit 000000 selected.
  • Page 16: Calibration

    1. Warm up the balance for at least half an hour with the CAL switch nothing on the pan. 2. Press and hold the calibration (CAL) switch until appears, and release the switch. Release the CAL switch 3. The balance displays Cal 0 .
  • Page 17 If the balance is to be moved to other places, set the gravity acceleration value of the area where the calibration using a weight is to be done, and calibrate the balance according to the procedure above. See the next section to set the value.
  • Page 18: Gravity Acceleration Correction

    Press and hold 1. Press and hold the calibration (CAL) switch until the CAL switch appears, and release the switch. 2. The balance displays Cal 0 .
  • Page 19: Functions

    Cancels the operation and turns the balance off. Item key Selects a class and an item. In the weighing mode, press and hold the key to enter the function setting mode. Enter key Proceeds to the selected class. Stores the setting per class and goes to the next class.
  • Page 20: Setting Example

    8-3. Setting example To set auto power-off function to “Enabled”, and the ACAI function to “Disabled”. 1. Press and hold the SAMPLE key to display Press and hold func func 2. Press the PRINT key. The balance displays poff 0 .
  • Page 21: Storing Weighing Units

    At this stage, the weighing unit is not stored in memory. To select 6. Repeat steps 4. and 5. to store all weighing units to be To store used. 7. Press the PRINT key to store the selected weighing units in memory.
  • Page 22: Function List

    Command and stream modes Auto-print A: + data Data output Command and PRINT key mode Auto-print B: Command, PRINT key and auto-print A +/- data Command, PRINT key and auto-print B Command mode only pUse No pause (general equipment) Interval between...
  • Page 23 ID number for GLP output Sets the ID number See “10. ID NUMBER AND GLP” Factory setting Even if the weight display is “5d”, the sample weight may not be accepted. This is because the weight display data is rounded off internally.
  • Page 24: Options

    EJ-12 Carrying case EJ-13 Density determination kit for EJ-120 / EJ-200 / EJ-300 / EJ-410 / EJ-610 Note The EJ series balances have only one option slot for a communications interface. Either the EJ-02 USB interface or the EJ-03 RS-232C serial interface can be installed at one time.
  • Page 25: Interface Specifications

    Connector inside the option slot. EJ-03 Interface specifications Transmission system EIA RS-232C Transmission form Asynchronous, bi-directional, half-duplex Data format Baud rate: 1200, 2400, 4800, 9600 bps Data: 7 bits + parity 1bit (even or odd) or 8 bits (non-parity) Start bit: 1 bit Stop bit: 1 bit...
  • Page 26: Data Format

    US : Unstable weighing data (including counting and % data) OL : Out of weighing range (Over) The data is normally 9 digits including a decimal point and a sign. There are 14 types of units: g : Weighing data “gram”...
  • Page 27: Command Mode

    The balance transmits the weight data when the display is stable (the STABLE indicator is on) and the data is greater than +4d or less than -4d. The next output can be obtained after the display returns between -4d and +4d.
  • Page 28: Ej-08 Underhook

    By attaching the underhook to the bottom of the balance, large objects that are difficult to load on the weighing pan can be weighed, and the density (specific gravity) of objects may be measured. Refer to “9-6. EJ-13 Density determination kit” for information about density measurement.
  • Page 29: Density Determination Kit

    9-6. EJ-13 Density determination kit Using this option and calculation program, the balance can determine the density (specific gravity) of a sample. EJ-13 is for use with the EJ-120 / EJ-200 / EJ-300 / EJ-410 / EJ-610. EJ-13 Installation Fixing frame...
  • Page 30 (factory setting: 25 °C). 3. Using the RE-ZERO (to increment the value) and SAMPLE keys (to shift the selected digit), set the value and press the PRINT key to store. To cancel the setting procedure and return to the density measuring mode, press the UNITS key.
  • Page 31 10 mm below the water surface. 6. Wait for the STABLE indicator to be displayed and press the SAMPLE key. Then the balance reads the weight in water and shows the density (specific gravity) of the sample. 88. 0 1 The display shows the density.
  • Page 32: Id Number And Glp

    The GLP output format includes the balance manufacturer name, model number, serial number, ID number and space for a signature. When used with the AD-8121B, the date and time can be printed (GLP output format info = 1). 10-1. Setting the ID number Press and hold 1.
  • Page 33: Output Example

    10-2. Output example To print the GLP report, set the function to “info 1” and set the AD-8121B printer to MODE 3. To output the GLP report to a personal computer, set the function to “info 2”. Data format for “calibration report”...
  • Page 34: Calibration Test Using A Weight

    “Title block” and “End block” When weight values are recorded as GLP data, a “Title block” and an “End block” are added to the weight values for the GLP report. To output the GLP report to the AD-8121B printer, set the printer to MODE 3.
  • Page 35 3. If it is necessary to change the target weight value that is used for calibration test, press the SAMPLE key and change the value using the following keys. SAMPLE key To select the digit blinking to be changed.
  • Page 36: Maintenance

    When sample weight is light and the counting error could 10 - become large, the balance will request you to use larger number of samples. Place the displayed number of samples on the pan and press the PRINT key to store 25 - the unit weight.
  • Page 37 Stability error Warning to indicate that the weight value is not stable error1 and the balance cannot display it. Prevent vibration and drafts. Press the UNITS key to return to the weighing mode. If you cannot cancel an error or other errors have occurred, request service from...
  • Page 38: Specifications

    12. SPECIFICATIONS 12-1. EJ series balances MODEL EJ-120 EJ-200 EJ-300 EJ-410 EJ-610 Weight capacity 120 g 210 g 310 g 410 g 610 g Min. display “d” 0.01 g 0.01 g 0.01 g 0.01 g 0.01 g Repeatability 0.01 g 0.01 g...
  • Page 39: Other Weighing Units

    0.005 0.005 0.005 0.005 **The unit “tola” and three kinds of “tl” are for special versions and only one of them will be available. tl (HG): Hong Kong General / Singapore tael tl (HJ): Hong Kong Jewelry tael tl (T): Taiwan tael...
  • Page 40: Options

    Underhook for EJ-1500 / EJ-2000 EJ-11 Breeze break EJ-12 Carrying case EJ-13 Density determination kit for EJ-120 / EJ-200 / EJ-300 / EJ-410 / EJ-610 12-4. Dimensions Min. 59 Min. 59 φ110 EJ-120 / EJ-200 / EJ-300 EJ-1500 / EJ-2000 / EJ-3000...
  • Page 41: Gravity Acceleration Map

    GRAVITY ACCELERATION MAP Values of gravity at various locations Amsterdam 9.813 m/s Manila 9.784 m/s Athens 9.807 m/s Melbourne 9.800 m/s Auckland NZ 9.799 m/s Mexico City 9.779 m/s Bangkok 9.783 m/s Milan 9.806 m/s Birmingham 9.813 m/s New York 9.802 m/s Brussels 9.811 m/s...
  • Page 42 World map...
  • Page 44 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013 JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-6148 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131 U.S.A. Telephone: [1] (408) 263-5333 Fax: [1] (408)263-0119 A&D INSTRUMENTS LIMITED <UK Office> Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D INSTRUMENTS LIMITED...
