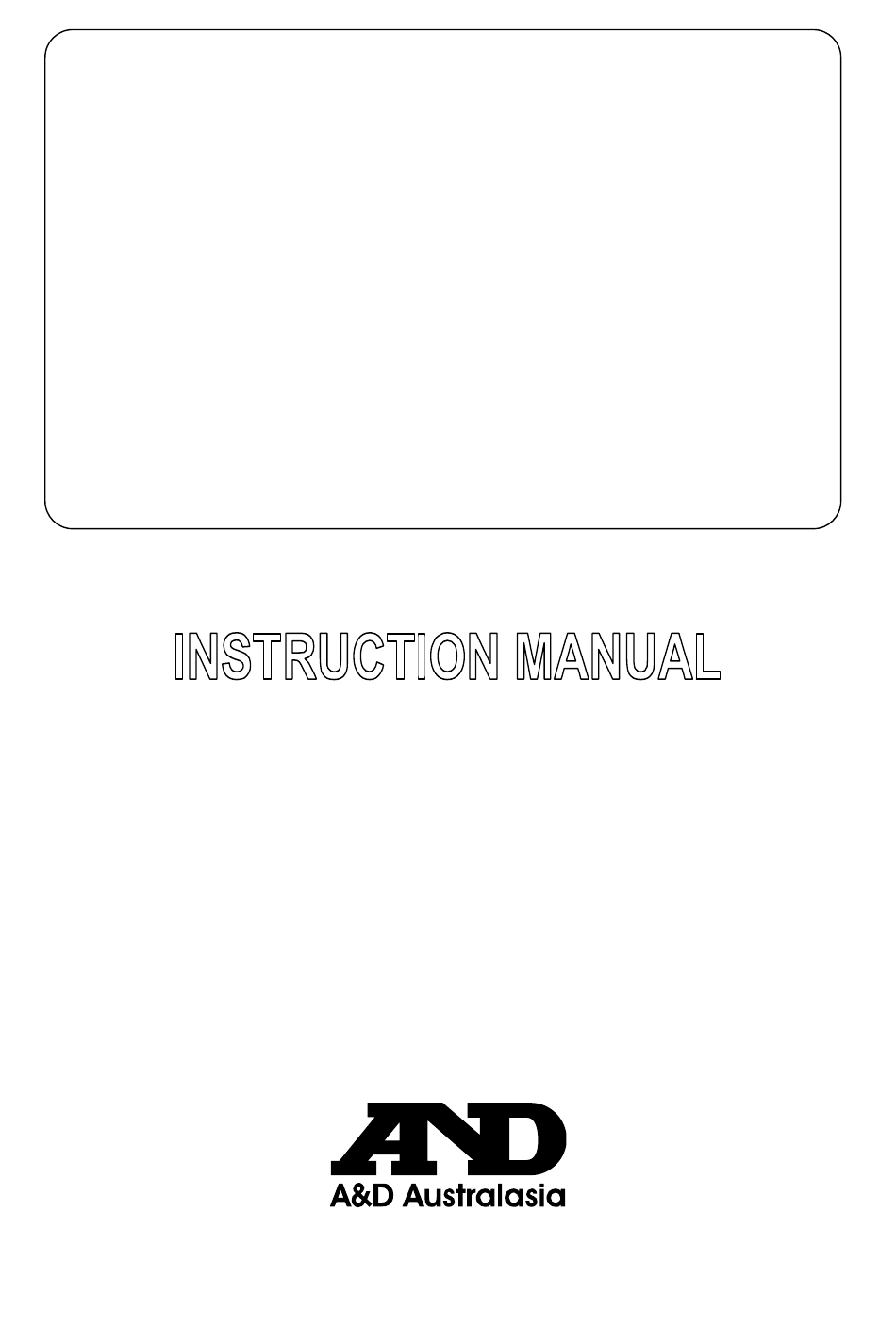

- Page 1 ET Series Digital Platform Scales ET-30KAM / ET-60KAL ET-150KAL / ET-300KAX ADA-02/2024...
-
Page 2: Table Of Contents
ET Series Platform Scales Instruction Manual Contents 1. PRECAUTIONS ------------------------------------------------------------------------------------------------------------------------ - 1 - 2. PRODUCT DESCRIPTION ---------------------------------------------------------------------------------------------------------- - 2 - 2.1 General --------------------------------------------------------------------------------------------------------------------------- - 2 - 2.2 Overall View -------------------------------------------------------------------------------------------------------------------- - 2 - 3. INSTALLATION ------------------------------------------------------------------------------------------------------------------------ - 3 - 3.1 Unpacking ----------------------------------------------------------------------------------------------------------------------- - 3 - 3.2 Installing the platform --------------------------------------------------------------------------------------------------------- - 3 -... -
Page 3: Precautions
Do not install the scale in direct sunlight. • Install the scale on a solid and level surface. • Verify the local voltage and power adaptor are correct for the scale. • Only use original power adaptor, others could cause damage to the scale. -
Page 4: Product Description
2. PRODUCT DESCRIPTION 2.1 General ➢ The ET series platform scale amplifies signals from a load cell, converts them to digital data and then displays them as a mass value. ➢ It is suitable for general weighing or more specialised applications such as check weighing, counting, motion weighing and accumulation applications. -
Page 5: Installation
ET Series Platform Scales Instruction Manual 3. INSTALLATION 3.1 Unpacking When you receive the scale, inspect it to make sure that it is not damaged and that all are parts are included: • Remove the scale from the carton. •... -
Page 6: Leveling
ET Series Platform Scales Instruction Manual 3.3 Leveling The scale is equipped with a level indicator located on the back of the scale on the base bracket. Use the adjustable leveling feet located on the bottom of the scale until the bubble appears in the center of the indicator. -
Page 7: Installing The Indicator
Pull the display cable all the way through the pole so no slack is under the platform. Place the column on the base bracket and ensure the holes to be aligned. Secure the column with the bolts by using a hexagon wrench. -
Page 8: Power Connection
Note: Please charge the battery before using the scale for the first time. • The symbol to the left side of the weight display indicates that the battery is getting low, and the display will be show b-err. • Approximately 30 minutes of instrument usage is left; afterwards it will shut off automatically. -
Page 9: Load Cell Connections
• Store the battery in a sealed bag or box in a dry, temperate environment. 3.8 Load cell connections • Connect the load cell cables to the terminal as shown below. Connection • The load cell drive voltage is 3.3V DC ±5% between Excitation + and Pin 1 Signal + Excitation -. -
Page 10: Indication Description
3) Enter switch. Used to enter the selected menu, sub-menu and setting. 1) Count switch. Used to enter the counting mode. 2) Setup menu switch. Press and hold the switch to enter the setup menu. 1) Limit switch. Used to enter check weighing mode. -
Page 11: Operation
Load another weight on the platform. • Press switch. Zero is displayed, and tare is subtracted. NET Indicator and stable light will be • Remove weight from the platform. Total tared weight is displayed. Tared weight will be shown with a minus value. -
Page 12: Select Weighing Unit
• To clear the tare value, remove the load from the platform. • Press switch. Zero is displayed, the NET indicator light and tare weight is cleared. 5.4 Select Weighing Unit The default weighing unit is kg, to change weighing units please enter function menu. - Page 13 ET Series Platform Scales Instruction Manual Check Mode Description The weight is within the limits. The alarm will sound and the OK indicator will be illuminated. INSIDE The weight is below the lower limit. UNDER indicator will be illuminated. The weight exceeds the upper limit. OVER indicator will be illuminated.
- Page 14 • Press switch to confirm. The display will show end and return back to normal counting mode. Note: To delete limits, enter 00000 - 12 -...
-
Page 15: Accumulation
• Press the switch when the STABLE indicator is illuminated. • The display will show the total saved value for two seconds and the MR indicator will be illuminated. • Remove the weight from the pan. • When the display shows zero and stable then place the next weight on the platform. -
Page 16: Counting Mode Operation
5.8.1 To enter Animal Weighing Mode Press and hold switch 2 seconds in normal weighing mode and the scale will enter animal weighing mode. The display will flash ANI-ON and the animal symbol will be illuminated. 5.8.2 Animal Weighing Operation •... -
Page 17: Auto Sleep Function
Press switch to select Y or N option • Press switch to confirm • Press switch to exit menu and return back to normal weighing mode. Option Description • SDBY y To enable the auto sleep function. • When the scale is not in use for 50 seconds the scale will enter auto sleep mode. -
Page 18: Internal Counts Checking
Note: 1.The new gravity value is the ratio between the gravity value of calibrated location and the gravity value of the scale’s current location. 2.The new value needs to be entered after calibration is completed. -
Page 19: Function List
Select the Sub Menu • Press switch to choose the sub menu block one by one. Return to Weighing Mode • Press switch to exit the menu and return to the weighing mode. 6.2 Function List Menu Sub Menu Description Default U KG... -
Page 20: Calibration
The display will show FULL 8) Press switch to confirm. The current full capacity weight will be displayed and PCS indicator will be illuminated. Use the switch to move digits to the right and the light below the corresponding digit will be on. - Page 21 ET Series Platform Scales Instruction Manual A&D Australasia Pty Ltd Head Office & Warehouse A&D New South Wales Office A&D Victorian Office 32 Dew Street, Unit 4, 14 Abbott Road, Unit 38, 326 Settlement Road Thebarton SA 5031 Seven Hills NSW 2147...
