Summary of Contents for AND HVL-CS

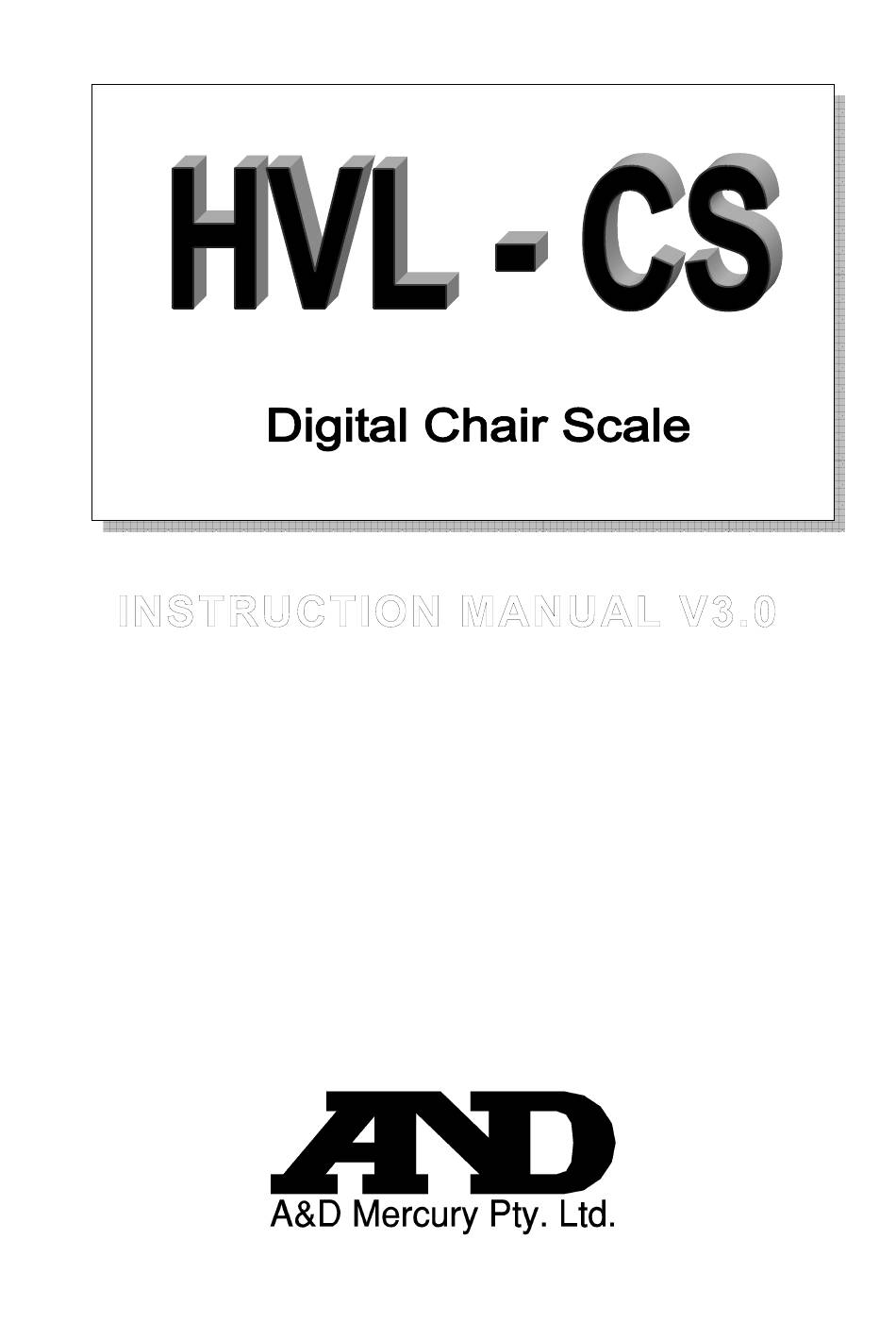

- Page 1 www.andmercury.com.au...
-
Page 2: Table Of Contents
Table of Contents General Description ....................3 Preparation for use ....................3 2.1. Power source....................3 Installing the Batteries ...................4 Chair........................5 4.1. Safety breaks....................5 4.2. Footrest ......................5 4.3. Handle ......................5 Display and Symbols .....................6 Weighing........................7 Dimensions ......................8 Page 2 HVL-CS Instruction Manual v3.0... -
Page 3: General Description
A footrest at the front allows the patient to sit comfortably in the chair. For moving the scale between locations a convenient push handle is fitted at the rear of the chair. All surfaces are easy to clean and may be wiped with a damp cloth. 2. Preparation for use 2.1. -
Page 4: Installing The Batteries
Replace used dry cells with six new ones, when is displayed. Do not mix used and new batteries. It may cause damage to the battery or product. Check the polarity when installing the batteries. If you do not observe this it may cause battery leakage. -

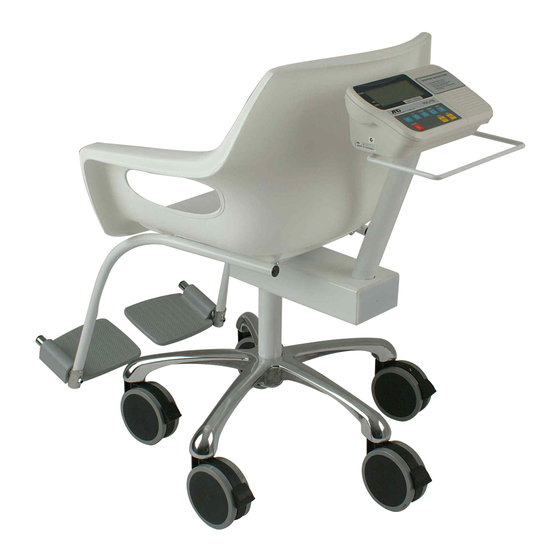

Page 5: Chair
The chair scale can easily be moved from one area to another by releasing the brakes and then pushing the scale forward by use of the rear mounted handle. To apply the brakes press firmly down on the black tab in the wheel with the foot. -
Page 6: Display And Symbols
When the current weight value is not changing, this mark is displayed. The reading may now be taken. Zero point mark. With nothing on the pan and pressing the switch, this mark is displayed. The zero point is the starting point to weighing. -
Page 7: Weighing
1. Ensure that the chair is correctly positioned with the black brake tabs at the rear of the chair. 2. Ensure that the safety brakes are firmly applied and that the footrest is in the up position. 3. Ensure the seat is empty and switch on the scale. -
Page 8: Dimensions
7. Dimensions All dimensions are in millimetres Page 8 HVL-CS Instruction Manual v3.0... - Page 9 HEAD OFFICE: 32 Dew Street, Thebarton, S.A. 5031 Tel: (08) 8352-3033 Fax:(08) 8352-7409 VICTORIAN OFFICE: Unit 4 313 Arden Street, Kensington, VIC. 3031 Tel: (03) 9372-1522 Fax:(03) 9372-1193 NSW OFFICE: Unit 4, 14 Abbott Road, Seven Hills, NSW 2147 Tel: (02) 9674-5466 Fax:(02) 9674-2544 Internet Address: http://www.andmercury.com.au...
