PLUSCONNECT

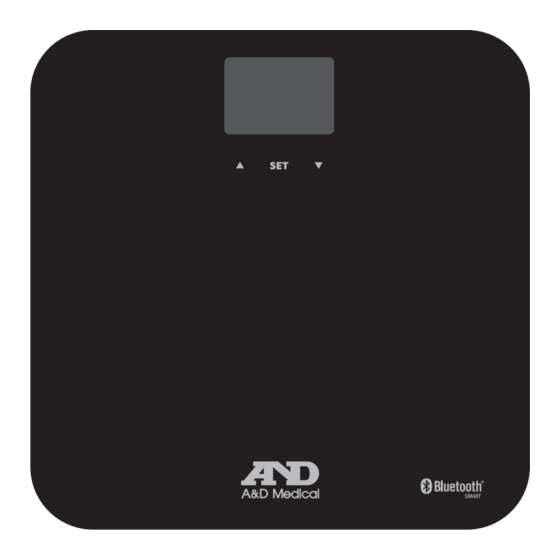

Wireless Weight Scale
UC-350BLE
Thank you very much for selecting the A&D Medical PLUSCONNECT Wireless
Weight Scale UC-350BLE. Please do read the user manual carefully and
thoroughly so as to ensure the safe usage of this product, and keep the manual
well for further reference in case you have problems.
Instruction Manual
E-2
E-3
E-4
E-5
E-7
E-9
E-9
E-10
E-11
E-12
E-14
E-15
Advertisement
Table of Contents
Related Manuals for AND PLUS CONNECT UC-350BLE
Summary of Contents for AND PLUS CONNECT UC-350BLE
-
Page 1: Table Of Contents
Thank you very much for selecting the A&D Medical PLUSCONNECT Wireless Weight Scale UC-350BLE. Please do read the user manual carefully and thoroughly so as to ensure the safe usage of this product, and keep the manual well for further reference in case you have problems. -
Page 3: Safety Information
• Place the scale on a flat, hard surface. Soft surface such as carpet will affect the performance of the scale. • Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and dinning. • Always start measurement in the same time slot and on the same scale located on the same flat, hard surface. -
Page 4: Overview
Overview Device Components UNIT and Pair-up LCD display Activation Button Sensor DOWN Button SET Button UP Button Battery Compartment Includes: • Weight Scale UC-350BLE • 4 x AAA Batteries (1.5V each) • User Manual • Quick Start Card LCD Display... -
Page 5: Initial Startup
* The digits “ ” will be shown on the LCD. • Close the battery door and wait until the digits “ ” are shown on the LCD. CAUTION • When the symbol appears, the device will power off. -
Page 6: Connecting To Mobile Device (Pairing
Specifications established by global organization Bluetooth SIG, are capable to ® receive your personal health data. Account Registration and Device Setup Create your account following the app instruction or continue as a guest. Account Registration Create an account with username and password. - Page 7 • Turn on Bluetooth and the app. Make sure both are ON when pair-up is ® proceeding. • Press and hold “UNIT” button in the back of the scale to start pair-up. UNIT button Symbol and symbol will be shown on the scale LCD alternatively, indicating pair-up is proceeding.
-
Page 8: Start Measuring
At all other times step straight on the scale. Setting the User ID and Start Measuring • Press “SET” button or when the LCD displays 0.0, press and hold “SET” button for about 3s to select your “P#”. • Once “P1” flashes, press the function button or to select your “P#” among P1 to P8. - Page 9 • To add new users, select User ID that is not assigned already in the Device Setup process on the app (pg. E-5 and E-6). If all 7 User IDs are occupied you can overwrite one by simply selecting it.
-
Page 10: Offline Measurement
Keep full contact with the scale until the unit (lb/kg) stop flashing. 2. A beep sound will indicate to step off and the scale will display your weight value 3. The scale will automatically turn off after a few seconds. -
Page 11: Manage Your Health
The Bluetooth word mark and logos are registered trademarks owned ® by Bluetooth SIG, Inc. and any use of such marks by A&D is under license. Other trademarks and trade names are those of their respective owners. Receiver Device... -
Page 12: Troubleshooting
Bluetooth is OFF. Turn ON the Bluetooth via Settings. transmission failed. App is OFF. Press the A&D connect app in your phone and open the dashboard. Out of range of Place your smartphone closer to the Bluetooth transmission. scale. E-11... -
Page 13: Specifications
• User Manual About the Accuracy of This Product * This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer. Please refer to the above table for the descriptions on accuracy. * This product is specially designed for body scale as well as weight measurement. It should NOT be used by anyone during the process of transaction for verification of goods’... - Page 14 20 cm or more away from a person’s body (excluding extremities: hands, wrists, feet and ankles). Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
-
Page 15: Maintenance
Do’s and Don’ts: • DO use a dry soft cloth to wipe the dust. • DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a dry soft cloth to dry up the device. -
Page 16: Warranty
(the “Product”) will be free from defects in material and workmanship for 2 years under normal use. This Limited Warranty is personal to You and is not transferable. If a Product is defective, You can return the Product to the retailer You purchased it from (if within such retailer’s return time frame) or return it to A&D... - Page 17 This Limited Warranty does not cover, and A&D will not be liable for (i) any shipment damage, (ii) any damage or defect due to misuse, abuse, failure to use reasonable care, failure to follow written instructions enclosed with the Product,...
- Page 20 Manufactured by: A&D Company, Limited 1-243 Asahi, Kitamoto-shi Saitama 364-8585 JAPAN www.aandd.jp [81] (48) 593-1119 Manufactured for: A&D Engineering, Inc. 1756 Automation Parkway San Jose, CA 95131 U.S.A. www.andmedical.com 1-888-726-9966...
