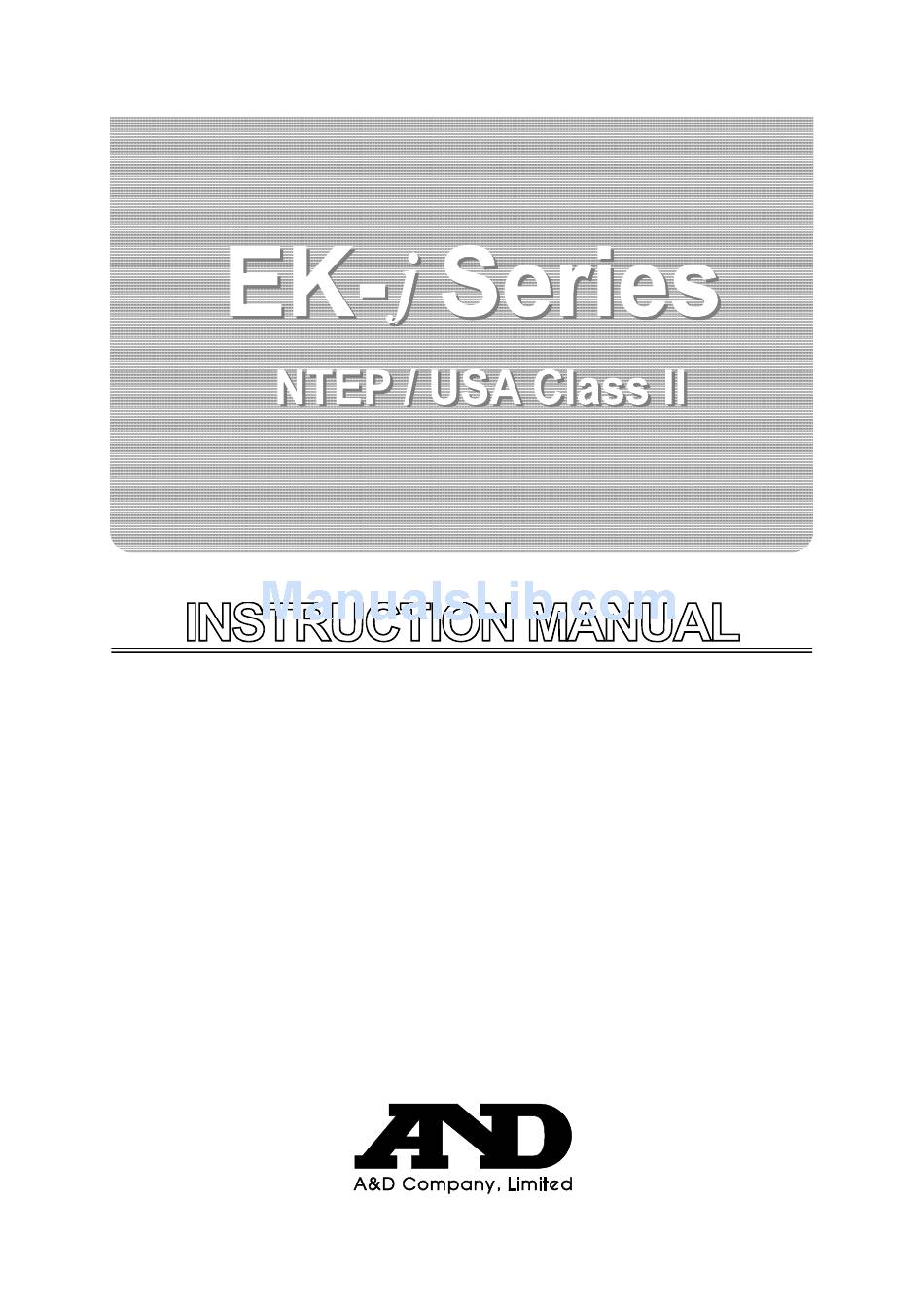

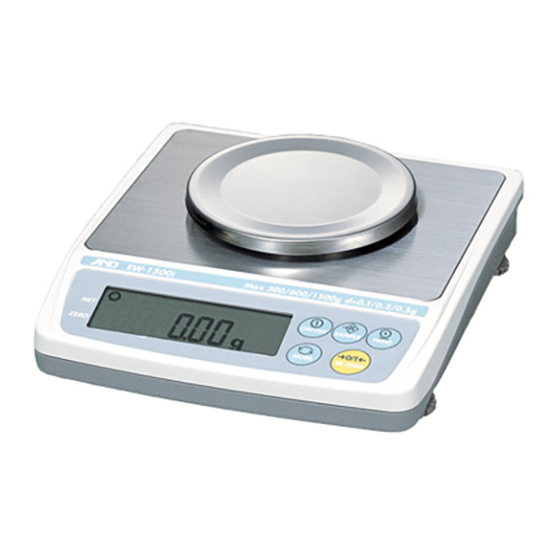

- Page 1 Authorized A&D Dealer Compact Balances EK-610j EK-6100j 1WMPD4001387 Visit www.scaleman.com to order A&D Weighing balances at discount prices...
- Page 2 Please note that this equipment generates, uses and can radiate radio frequency energy. This equipment has been tested and has been found to comply with the limits of a Class A computing device pursuant to Subpart J of Part 15 of FCC rules. These rules are designed to provide reasonable protection against interference when this equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
4. SETTING UP ........................4 4-1. Setting up your balance .........................4 4-2. Power source..........................4 5. OPERATION........................5 5-1. Turn the power ON and OFF ......................5 5-2. LCD backlight ..........................5 5-3. Units ..............................6 5-4. Selecting a weighing unit .......................7 5-5. Basic operation ..........................7 5-6. -
Page 4: Introduction
Authorized A&D Dealer 1. INTRODUCTION This manual describes how this balance works and how to get the most out of it in terms of performance. EK- j series balances have the following features: The EK-j series are high-resolution type electronic balances having a display resolution of 1/60,000. -
Page 5: Part Names And Functions
(Round pan for EK-610j) ZERO ON:OFF ENTER TARE functional Turns the power on and zero Enter unit weight, 100% the balance in weighing mode. weight or other setting Continue to press to turn the value to the balance. power off. -
Page 6: Setting Up
3. Calibrate your balance before use. (See “7. CALIBRATION”) Balance location To measure correctly, to keep the balance in good condition, and to prevent hazards, observe the following: Do not install the balance in locations that are subject to excessive dust, breezes, vibration, large temperature fluctuations, condensation, or that may have magnetic fields. -
Page 7: Operation
(About units: Only the units available will be displayed.) The display turns off except for a weighing unit and the decimal point. The balance waits for the weighing data to become stable, and zero will be displayed with the ZERO mark (power-on zero). -
Page 8: Units
The units and the order they appear in the display are as follows: Pound Ounce (avoir) -
Page 9: Selecting A Weighing Unit
The ZERO mark turns on. The TARE key will switch the balance to net weight mode and zero the weight display when the weight is plus and less than 50% of the capacity. The ZERO and NET marks turn on. -
Page 10: Counting Mode (Pcs)
Authorized A&D Dealer 5-6. Counting mode (pcs) Determines the number of objects in a sample. Calculates the reading, using the basic sample unit weight, and determines how many pieces are contained. Selecting the counting mode 1. Press the MODE key to select... -
Page 11: Percent Mode (%)
www.balances.com in an Authorized A&D Dealer 9. The balance re-calculates the unit weight while the ACAI mark is blinking. Do not touch the balance or samples on the pan until the ACAI mark turns off. 10. Counting accuracy is improved when the ACAI mark turns off. Each time the above operation is performed, a more accurate unit weight will be obtained. -
Page 12: Comparator
= the smallest display division e.g.: 4d=four display divisions The upper limit and lower limit numerical values are common to each of the weighing, counting and percent mode. The example for EK-610j is as follows. Upper limit value “001010”: “10.10g” “1010pcs” “101.0%”... - Page 13 Authorized A&D Dealer Entering the upper and lower limit values Cp Hi 6. With Cp Hi displayed, press the ENTER key. Enter the upper limit value using the following keys. SAMPLE key To select the digit blinking to change.
-
Page 14: Calibration
For regular calibration. 7-1. Calibration using a weight 1. Warm up the balance for at least half an hour with nothing on the pan. 2. Press and hold the calibration (CAL) switch until appears, and release the switch. Release the CAL switch. - Page 15 If the balance is to be moved to other places, set the gravity acceleration value of the area where the calibration using a weight is to be done, and calibrate the balance according to the procedure above. See the next section to set the value.
-
Page 16: Gravity Acceleration Correction
Press and hold 1. Press and hold the calibration (CAL) switch until Cal the CAL switch. appears, and release the switch. 2. The balance displays Cal 0 . -
Page 17: Functions
8-1. Key operation Cancels the operation and turns off the balance. Item key Selects a class and an item. In the weighing mode, press and hold the key to enter the function setting mode. Enter key Proceeds to the selected class. -
Page 18: Setting Example
Authorized A&D Dealer 8-3. Setting example To set auto power-off function to “Enabled”, and the ACAI function to “Disabled”. 1. Press and hold the SAMPLE key to display Press and hold func func 2. Press the ENTER key. The balance displays poff 0 . -
Page 19: Storing Weighing Units
5-3. Unit 5. Press the TARE key to store the weighing unit. To store 6. Repeat steps 4. and 5. to store all weighing units to be used. 7. Press the ENTER key. To confirm appears after end 8. -
Page 20: Function List
Buzzer sounds at OK and LO. Buzzer sounds at HI. Buzzer sounds at HI and LO. Buzzer sounds at HI and OK. Buzzer sounds at HI, OK and LO. This function is not available. pUse This function is not available. - Page 21 www.balances.com in an Authorized A&D Dealer Param- Class Item Description eter func aCai ACAI disabled If “0” is set, no additional samples ACAI function ACAI enabled required. Umin d = the minimum display division Minimum unit 1/8 d weight total sample weight ≥5d smpl 10 pcs The number of...
-
Page 22: Options
It is possible to sound a buzzer according to the comparison result. See the function “bep” to set which result will make a buzzer sound. The comparator function on/off, the comparison mode and comparator buzzer output can be selected using the function settings. See the settings “... -
Page 23: Underhook Assembly
Authorized A&D Dealer OP-04 Installation 1. Remove the cover of the option slot on the rear of balance by pressing and lowering it down. 2. Insert the option into the slot and secure it with the screws attached. -
Page 24: Rechargeable Battery Pack (Ni-Mh)
The battery life will vary depending on how the balance is used, ambient temperature and so on. Charging the battery pack Connect the AC adapter to the balance and turn the power off, then charging starts. It will take approximately 15 hours to reach full charge. If “... -
Page 25: Maintenance
The sample weight is too light to set the unit weight in the counting mode. Sample quantity notice When sample weight is light and the counting error could 10 - become large, the balance will request you to use larger number of samples. - Page 26 Stability error Warning to indicate that the weight value is not stable error1 and the balance cannot display it. Prevent vibration and drafts. Press the MODE key to return to the weighing mode. If you cannot cancel an error or other errors occurred, request service from the store where you purchased the balance or from your local A&D dealer.
-
Page 27: Specifications
Authorized A&D Dealer 11. SPECIFICATIONS 11-1. EK- j series MODEL EK-610j EK-6100j Accuracy Class Class II / Temperature range on NTEP: 5°C~35°C ( 41°F~95°F) Weight capacity 600 g 6000 g Verification “e” 0.1 g 0.01 g 0.1 g Min. - Page 28 www.balances.com in an Authorized A&D Dealer MEMO Visit www.scaleman.com to order A&D Weighing balances at discount prices...
- Page 29 www.balances.com in an Authorized A&D Dealer MEMO Visit www.scaleman.com to order A&D Weighing balances at discount prices...
- Page 30 www.balances.com in an Authorized A&D Dealer MEMO Visit www.scaleman.com to order A&D Weighing balances at discount prices...
