Opening the Printer

You need to open the printer every time you load media or perform
maintenance procedures.

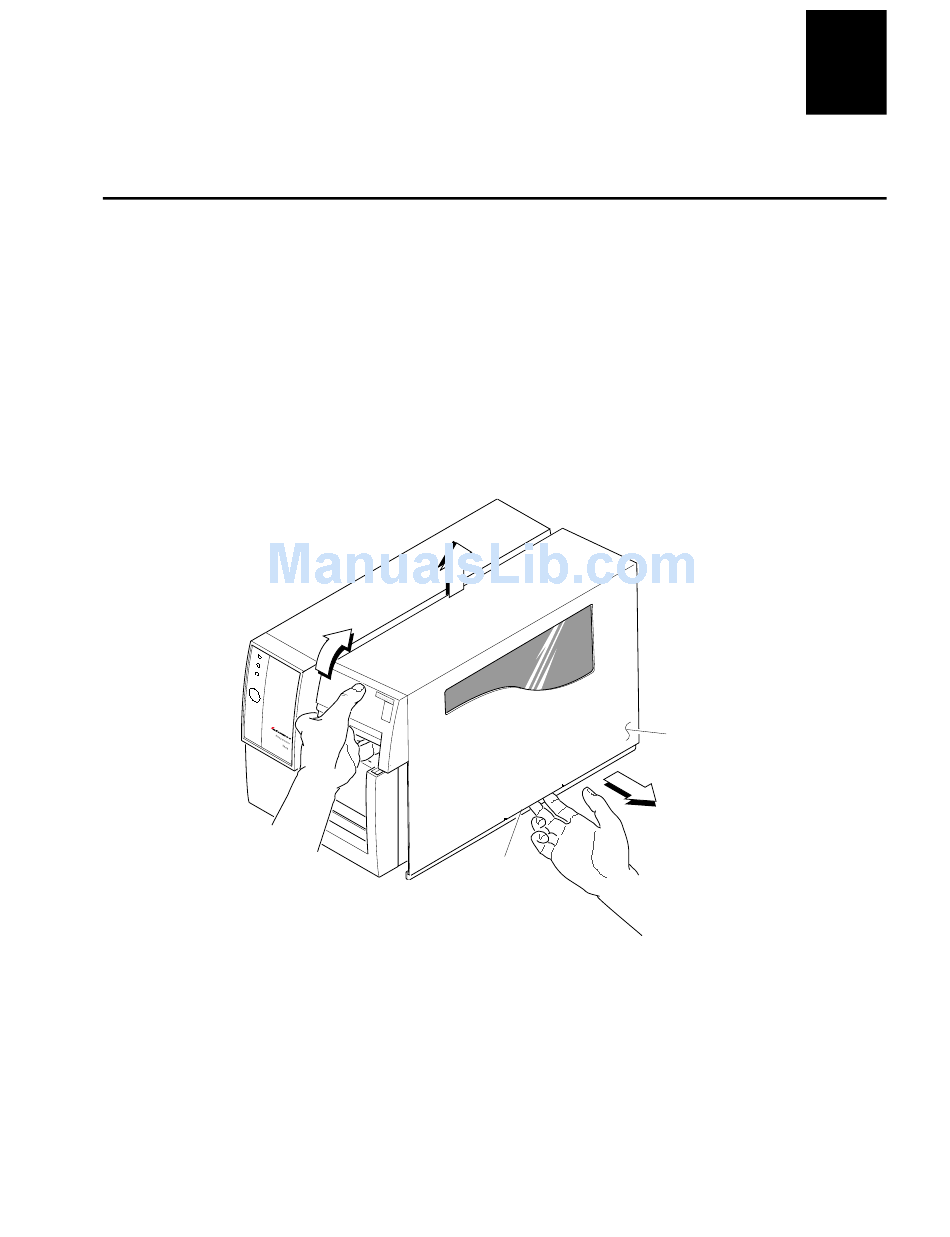

To open the printer
1. Place the fingers of your right hand between the two notches on the lower
2. Grasp the front of the media cover with your left hand and lift the front of
3. Lift the media cover away from the top of the printer.
P o
w e
r
A le
r t
E m
p t
y /
P a
F e
e d
/ P
a u
s e
C o d e 39
edge of the media cover (the media cover release) and pull the bottom of
the media cover away from the base of the printer.
the media cover upward to release it from the top of the printer frame.
3
2
u s
e
Media cover
release
(between the two
notches)
Preparing the Printer for Connection
Media
cover
1
3240G.004
1
1-7
