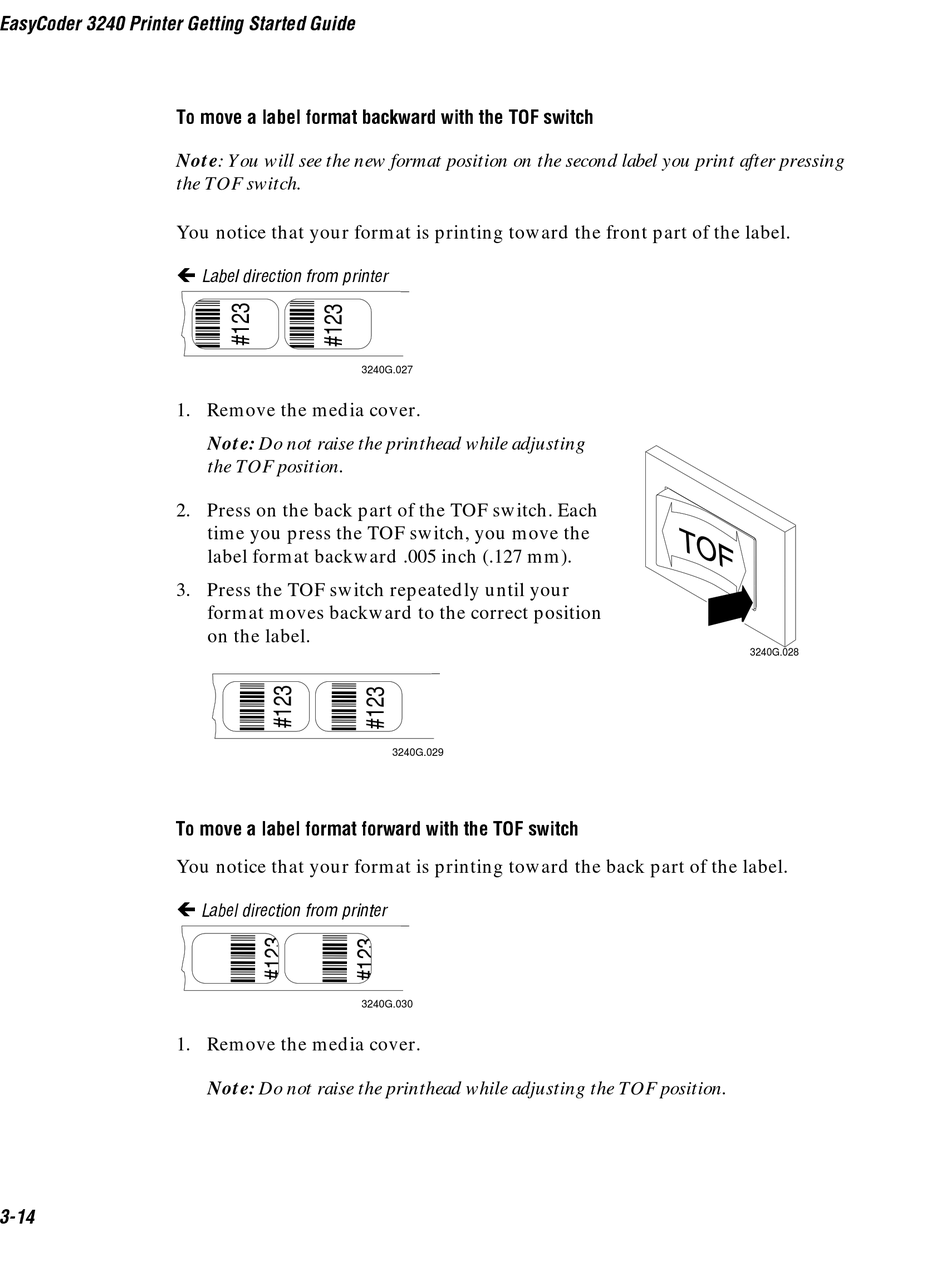

EasyCoder 3240 Printer Getting Started Guide
3-14
To move a label format backward with the TOF switch
Note: You will see the new format position on the second label you print after pressing
the TOF switch.
You notice that your format is printing toward the front part of the label.
Í
Label direction from printer
1. Remove the media cover.
Note: Do not raise the printhead while adjusting
the TOF position.
2. Press on the back part of the TOF switch. Each
time you press the TOF switch, you move the
label format backward .005 inch (.127 mm).
3. Press the TOF switch repeatedly until your
format moves backward to the correct position
on the label.
To move a label format forward with the TOF switch
You notice that your format is printing toward the back part of the label.
Í
Label direction from printer
1. Remove the media cover.
Note: Do not raise the printhead while adjusting the TOF position.
Co de 39 Co de 39
3240G.027
3240G.029
3240G.030
3240G.028
