Opening the Printer

Loading Media Into the Printer

EasyCoder 4420 and 4440 Bar Code Label Printer User's Manual
C d
You need to open the printer when you load media or perform
maintenance procedures.

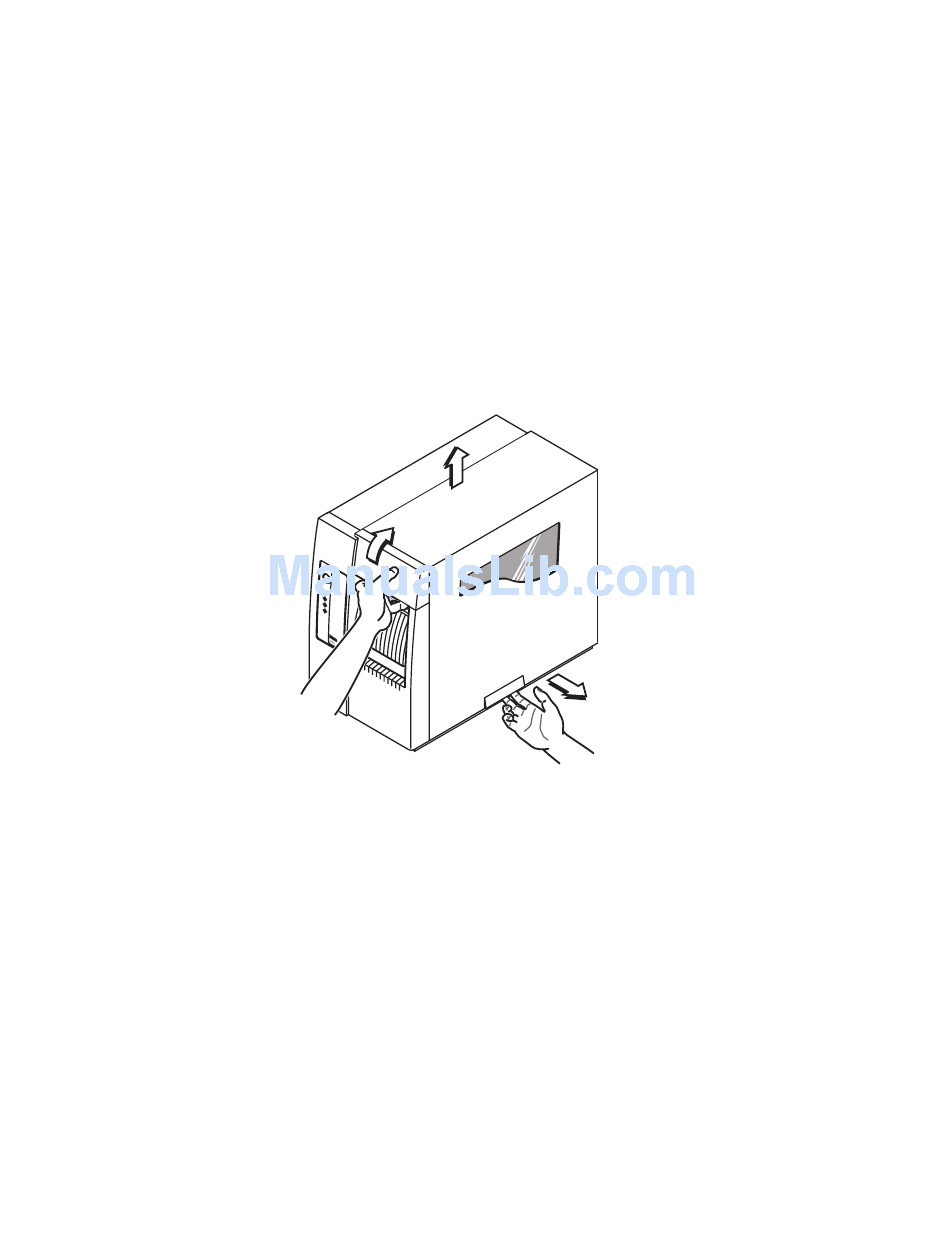

To open the printer
1 Place the fingers of your right hand under the embossed section of the
media cover (the media cover release) and pull the bottom of the media
cover away from the base of the printer.
2 Grasp the front of the media cover with your left hand and lift the front
of the media cover upward to release it from the printer frame.
3 Lift the media cover away from the top of the printer.
2
Fe ed
/P au
se
P ow
er /D
at a
A le
rt
E m
pt y/
P au
se
The printer can print on rolls of or fanfold thermal transfer or direct
thermal media. The default setting for the printer is direct thermal mode.
However, the sample media that shipped with the printer is thermal
transfer. If you are using thermal transfer media, you need to load thermal
transfer ribbon and change the media type setting. For help loading the
ribbon, see "Loading Thermal Transfer Ribbon" later in this chapter. To
change the media type setting, see "Configuring the Serial Port for
Communications" in Chapter 2.
