Intermec EasyCoder 3240 Getting Started Manual page 51

EasyCoder 3240 Printer Getting Started Guide
3-12

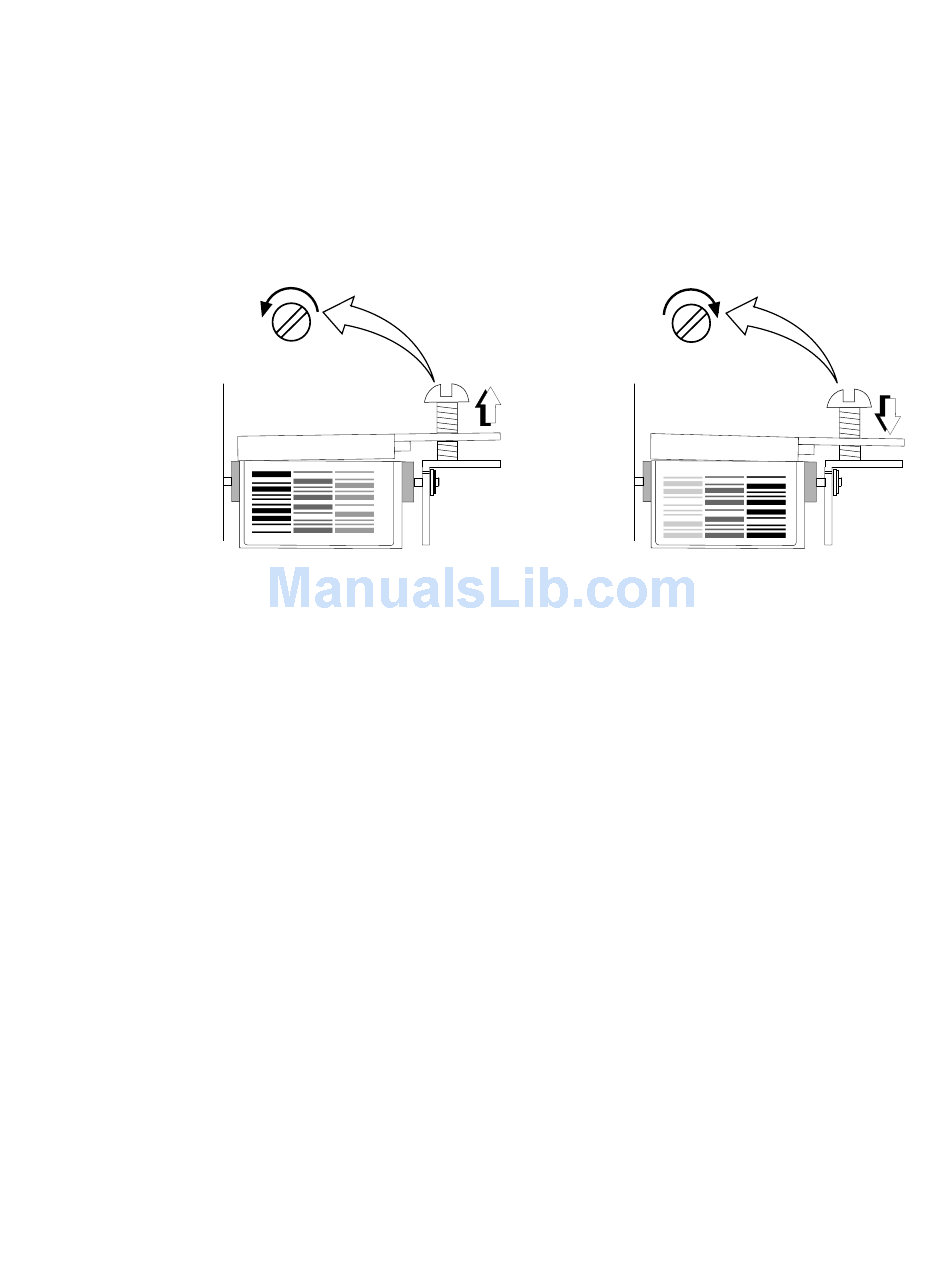

2. To compensate for uneven print quality, turn the bias adjust screw as
shown.
Note: When you adjust the bias adjust screw, the printhead rests evenly on the
drive roller and results in even print quality.
If printing is light on
the right side of label,
turn the bias adjust screw
counterclockwise.
3. Replace the media cover.
Note: You must properly adjust the bias adjust screw to prevent premature printhead
failure and excessive platen wear.
Co de 39 Co de 39
If printing is light on
the left side of label, turn
the bias adjust screw
clockwise.
3240G.014
