Set Mode Description; D Set Mode Operation - Icom IC-7800 Instruction Manual

12

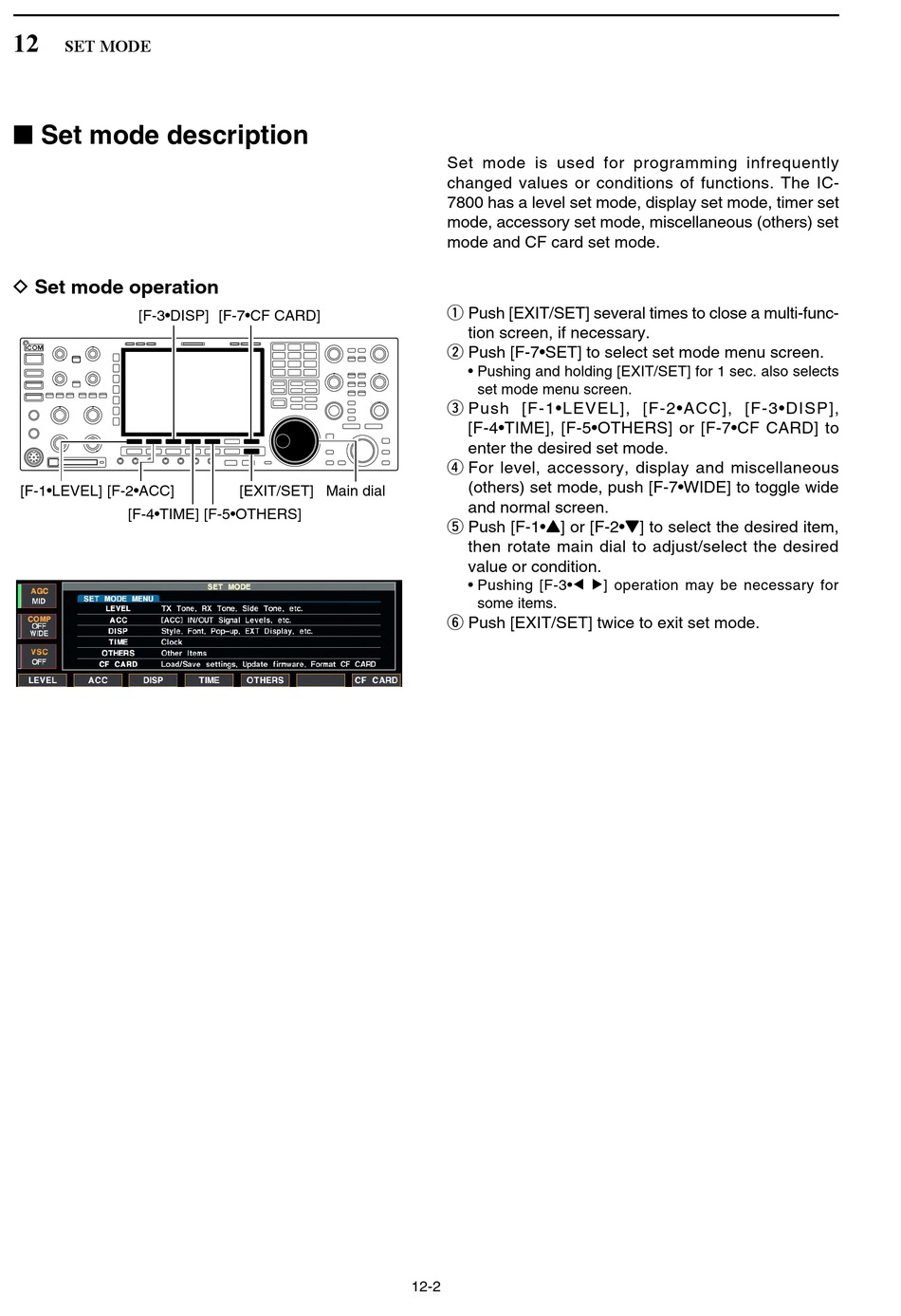

SET MODE

■ Set mode description

D Set mode operation

[F-3•DISP]
[F-1•LEVEL] [F-2•ACC]
[F-4•TIME]
[F-7•CF CARD]
[EXIT/SET] Main dial
[F-5•OTHERS]
Set mode is used for programming infrequently
changed values or conditions of functions. The IC-
7800 has a level set mode, display set mode, timer set
mode, accessory set mode, miscellaneous (others) set
mode and CF card set mode.
q Push [EXIT/SET] several times to close a multi-func-
tion screen, if necessary.
w Push [F-7•SET] to select set mode menu screen.
• Pushing and holding [EXIT/SET] for 1 sec. also selects
set mode menu screen.
e Push [F-1•LEVEL], [F-2•ACC], [F-3•DISP],
[F-4•TIME], [F-5•OTHERS] or [F-7•CF CARD] to
enter the desired set mode.
r For level, accessory, display and miscellaneous
(others) set mode, push [F-7•WIDE] to toggle wide
and normal screen.
t Push [F-1•Y] or [F-2•Z] to select the desired item,
then rotate main dial to adjust/select the desired
value or condition.
• Pushing [F-3•Ω ≈] operation may be necessary for
some items.
y Push [EXIT/SET] twice to exit set mode.
12-2
