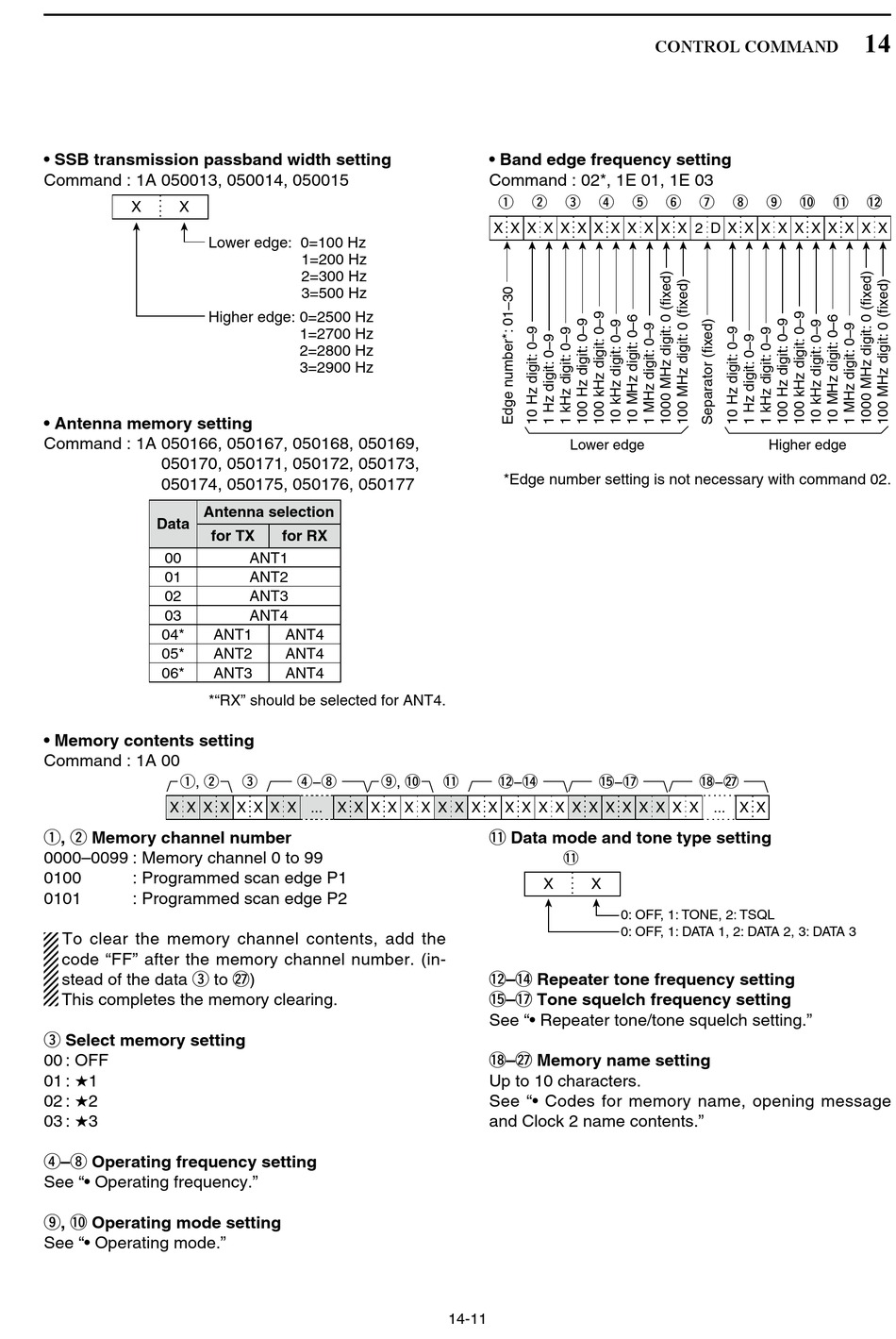

Icom IC-7800 Instruction Manual page 197

• SSB transmission passband width setting
Command : 1A 050013, 050014, 050015
X X
Lower edge: 0=100 Hz
Higher edge: 0=2500 Hz
• Antenna memory setting
Command : 1A 050166, 050167, 050168, 050169,
050170, 050171, 050172, 050173,
050174, 050175, 050176, 050177
Antenna selection
Data
for TX
00
01
02
03
04* ANT1
05* ANT2
06* ANT3
*"RX" should be selected for ANT4.
• Memory contents setting
Command : 1A 00
q, w
X X X X
q, w Memory channel number
0000–0099 : Memory channel 0 to 99
0100 : Programmed scan edge P1
0101 : Programmed scan edge P2
To clear the memory channel contents, add the
code "FF" after the memory channel number. (in-
stead of the data e to @7 )
This completes the memory clearing.
e Select memory setting
00 : OFF
01 : ★1
02 : ★2
03 : ★3
r–i Operating frequency setting
See "• Operating frequency."
o, !0 Operating mode setting
See "• Operating mode."
1=200 Hz
2=300 Hz
3=500 Hz
1=2700 Hz
2=2800 Hz
3=2900 Hz
for RX
ANT1
ANT2
ANT3
ANT4
ANT4
ANT4
ANT4
e r−i o, !0
X X X X ... X X X X X X X X X X X X X X X X X X
• Band edge frequency setting
Command : 02*, 1E 01, 1E 03
q w e r
X X X X X X X X X X X X 2 D X X X X X X X X X X
Lower edge
*Edge number setting is not necessary with command 02.
!2 − !4 !5 − !7
!1
!1 Data mode and tone type setting
!1
X X
!2 – !4 Repeater tone frequency setting
!5 – !7 Tone squelch frequency setting
See "• Repeater tone/tone squelch setting."
!8 – @7 Memory name setting
Up to 10 characters.
See "• Codes for memory name, opening message
and Clock 2 name contents."
14-11
CONTROL COMMAND
t y u i o
Higher edge
!8 − @7
X X X X ... X X
0: OFF, 1: TONE, 2: TSQL
0: OFF, 1: DATA 1, 2: DATA 2, 3: DATA 3
14
!0 !1 !2
