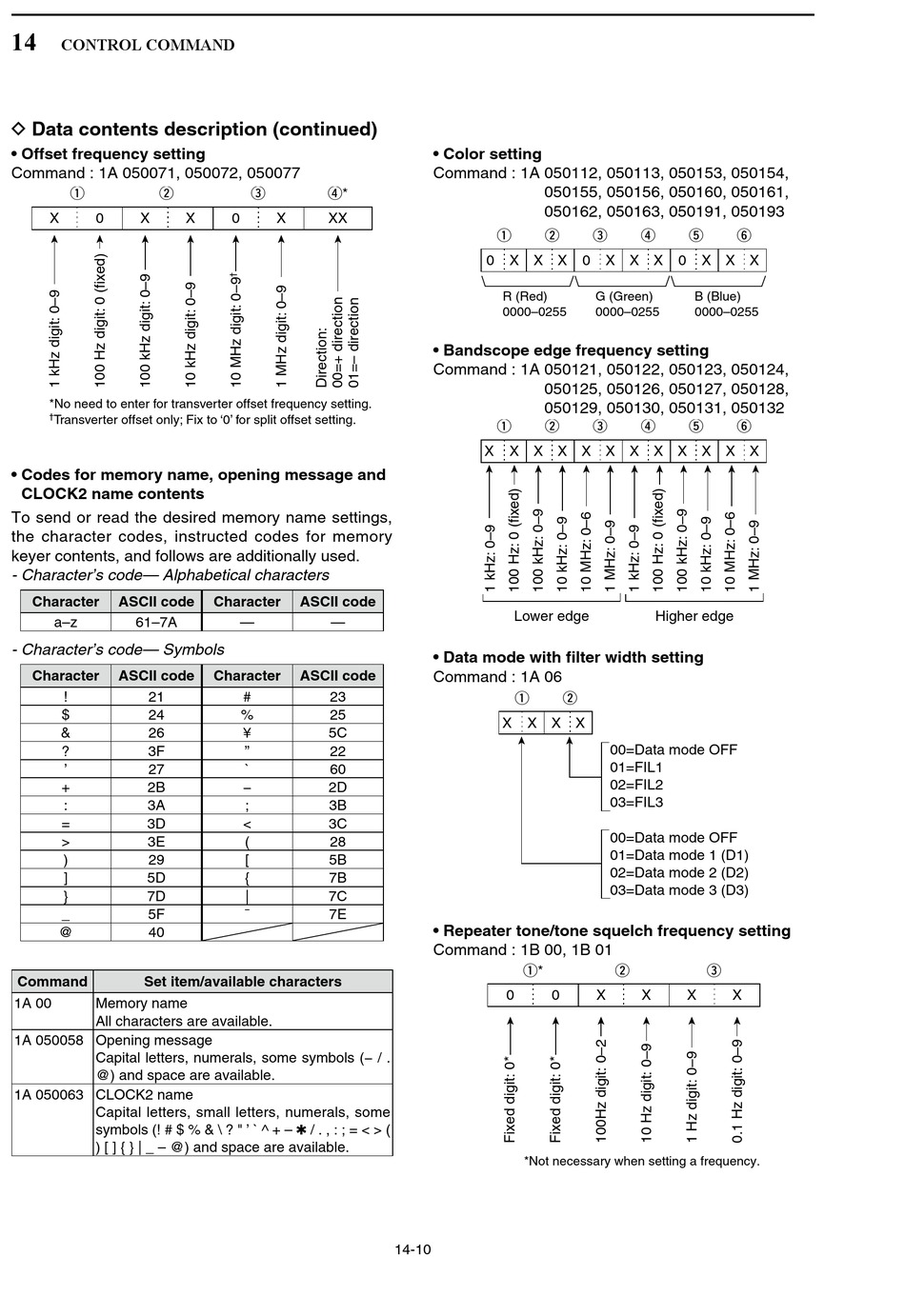

Icom IC-7800 Instruction Manual page 196

14
CONTROL COMMAND
D Data contents description (continued)
• Offset frequency setting
Command : 1A 050071, 050072, 050077
q w
X 0 X
*No need to enter for transverter offset frequency setting.
† Transverter offset only; Fix to '0' for split offset setting.
• Codes for memory name, opening message and
CLOCK2 name contents
To send or read the desired memory name settings,
the character codes, instructed codes for memory
keyer contents, and follows are additionally used.
- Character's code— Alphabetical characters
Character ASCII code
a–z 61–7A
- Character's code— Symbols
Character ASCII code
! 21
$ 24
& 26
? 3F
' 27
+ 2B
: 3A
= 3D
> 3E
) 29
] 5D
} 7D
_ 5F
@ 40
Command Set item/available characters
1A 00 Memory name
All characters are available.
1A 050058 Opening message
Capital letters, numerals, some symbols (− / .
@) and space are available.
1A 050063 CLOCK2 name
Capital letters, small letters, numerals, some
symbols (! # $ % & \ ? " ' ` ^ + – ✱ / . , : ; = < > (
) [ ] { } | _ – @) and space are available.
e r*
X 0 X XX
Character ASCII code
— —
Character ASCII code
# 23
% 25
¥ 5C
" 22
` 60
− 2D
; 3B
< 3C
( 28
[ 5B
{ 7B
| 7C
¯ 7E
• Color setting
Command : 1A 050112, 050113, 050153, 050154,
050155, 050156, 050160, 050161,
050162, 050163, 050191, 050193
q w
0 X X X
R (Red)
0000–0255
• Bandscope edge frequency setting
Command : 1A 050121, 050122, 050123, 050124,
050125, 050126, 050127, 050128,
050129, 050130, 050131, 050132
q w
X X X X X X X X X X X X
Lower edge
• Data mode with filter width setting
Command : 1A 06
q
X X X X
• Repeater tone/tone squelch frequency setting
Command : 1B 00, 1B 01
q*
0 0
*Not necessary when setting a frequency.
14-10
e r t
0 X X X 0 X X X
G (Green) B (Blue)
0000–0255 0000–0255
e r t
Higher edge
w
00=Data mode OFF
01=FIL1
02=FIL2
03=FIL3
00=Data mode OFF
01=Data mode 1 (D1)
02=Data mode 2 (D2)
03=Data mode 3 (D3)
w e
X X X
y
y
X
