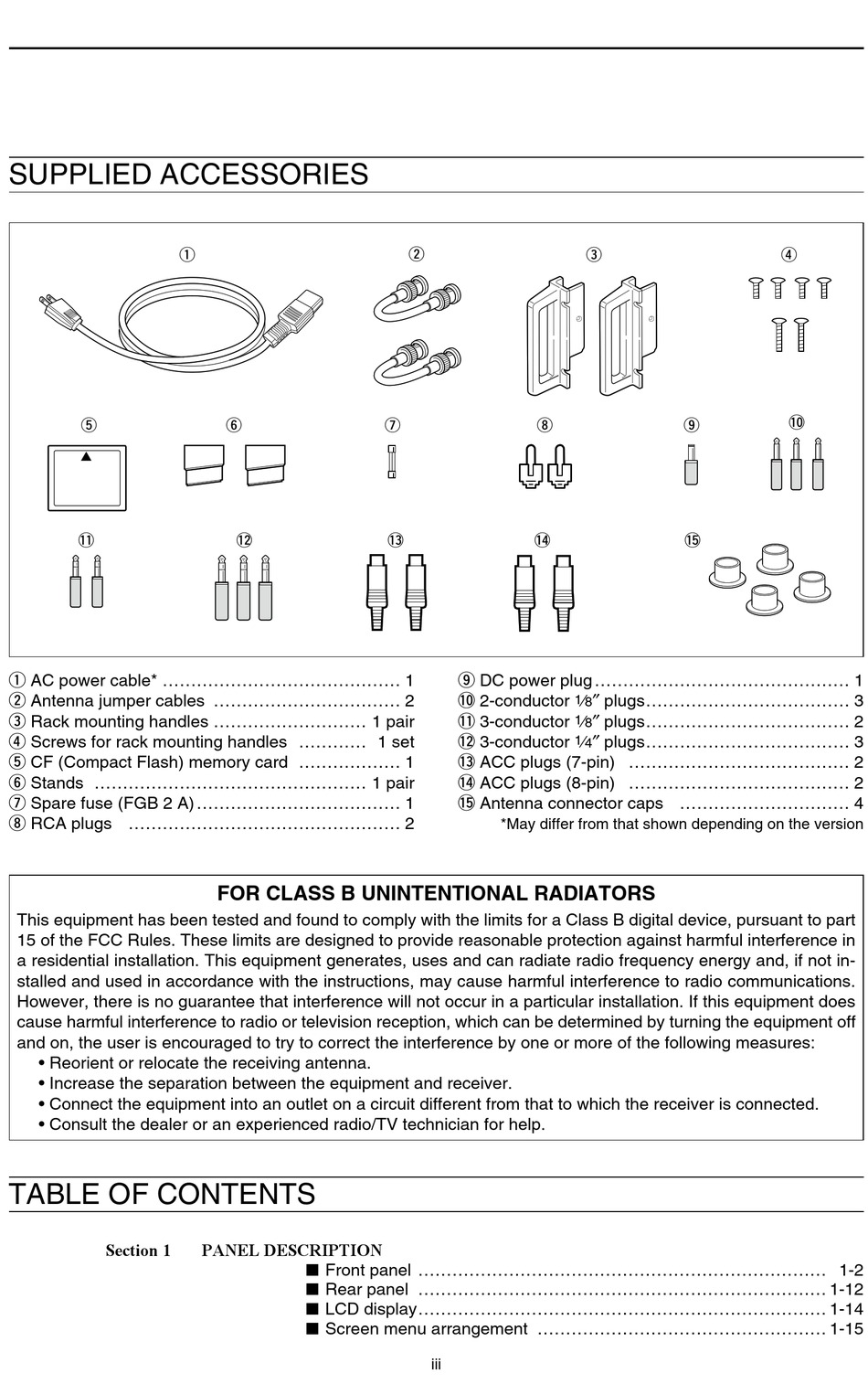

Icom IC-7800 Instruction Manual page 4

SUPPLIED ACCESSORIES
q
t
!1
q AC power cable* �������������� 1
w Antenna jumper cables ����������� 2
e Rack mounting handles ��������� 1 pair
r Screws for rack mounting handles ���� 1 set
t CF (Compact Flash) memory card ������ 1
y Stands ���������������� 1 pair
u Spare fuse (FGB 2 A) ������������ 1
i RCA plugs ���������������� 2
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-
stalled and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
TABLE OF CONTENTS
Section 1
y
!2
FOR CLASS B UNINTENTIONAL RADIATORS
PANEL DESCRIPTION
■ Front panel ������������������������ 1-2
■ Rear panel ������������������������ 1-12
■ LCD display ������������������������ 1-14
■ Screen menu arrangement ����������������� 1-15
w
u i
!3 !4
o DC power plug ��������������� 1
!0 2-conductor
!1 3-conductor
!2 3-conductor
!3 ACC plugs (7-pin) ������������� 2
!4 ACC plugs (8-pin) ������������� 2
!5 Antenna connector caps ���������� 4
*May differ from that shown depending on the version
