Replacing The Fan Drawer - Polycom RMX 2000 Hardware Manual

Chapter 1- Hardware Description

Replacing the Fan Drawer

1-30
Three fans are mounted in the Fan drawer, where the airflow is from right
to left. Should one of these fans fail as indicated by a Fan LED, you are
required to replace the Fan drawer.
1

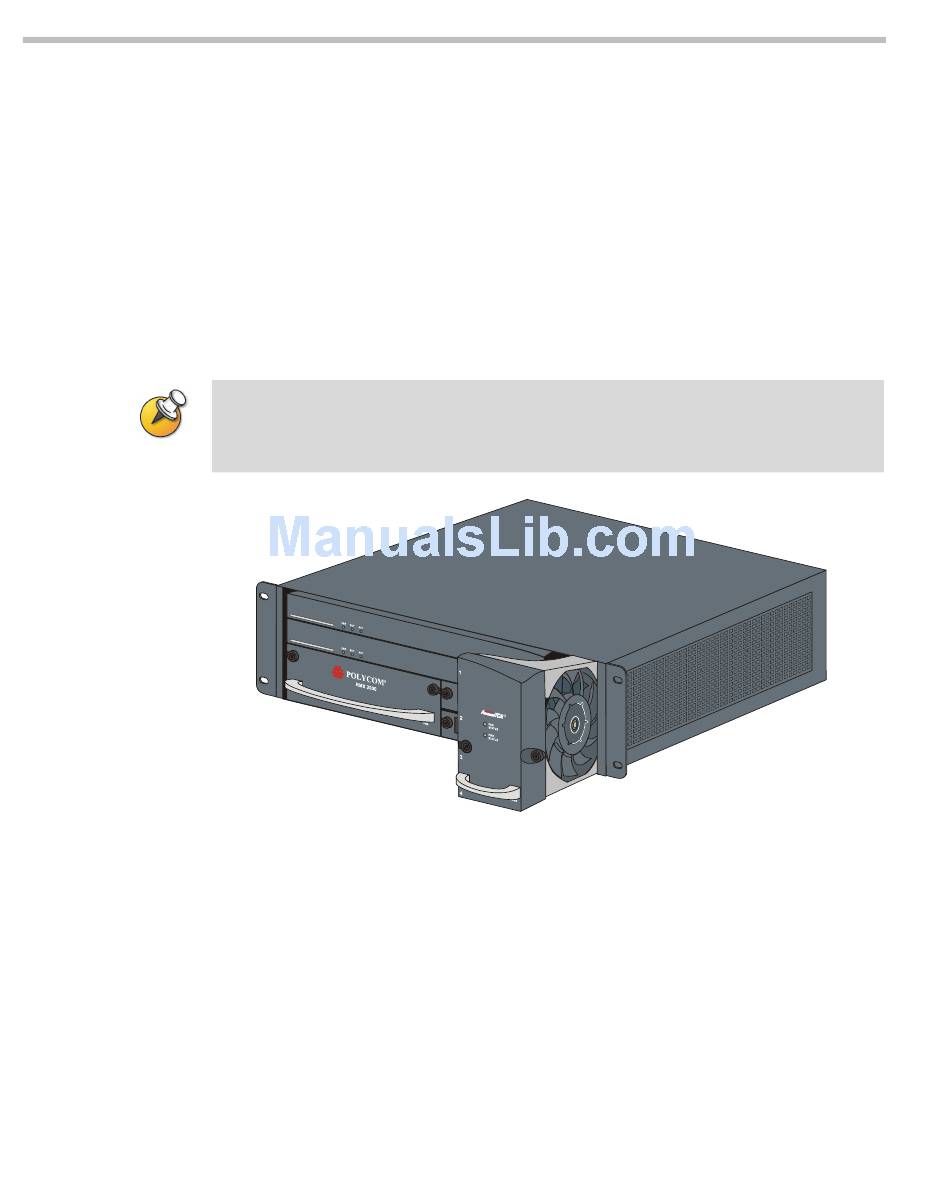

Unscrew the captive screws on the front panel of the RMX 2000 that
secure the Fan drawer.
2
Use the metal ejector levers to pull the Fan drawer out of its slot in the
Backplane.
3 Carefully slide the Fan drawer out through the front panel.
Warning!
The Fan drawer can be replaced when the RMX unit is ON, however a
replacement drawer must be inserted immediately. The temperature increase is
detected by the system, when critical, a system shutdown is initiated.
4 Slide in the replacement Fan drawer.
5
Push the Fan drawer firmly into the Backplane, making sure it is
properly seated in its slot.
6
Ensure that the metal ejector levers are fully retracted into their
housings.
7
Tighten the captive screws on the front panel of the RMX 2000 that
secure the Fan drawer.
