Replacing the CNTL Module

• Partially Open - For card powering down mode. Partially open the
ejector lever(s) until the blue HS LEDs on the card and the Control
Unit start flashing. When the HS LED is constantly lit the card is in a
powered down mode and you can remove the card.
Warning!
Once the removal sequence is initiated the process cannot be terminated and
the HS led flashes when activated.
• Fully Open - In this position the card is released from the MCU
housing and can be removed.
The CPU module is the management system of the RMX 2000. Use the
following procedure to replace a CNTL Module:
1 Ensure that power switch on the RMX 2000 is turned OFF (O).
2
Unscrew the captive screws on the front panel of the RMX 2000 that
CNTL
secure the
3 Use the metal ejector levers to pull the
the Backplane.
4
Carefully slide the

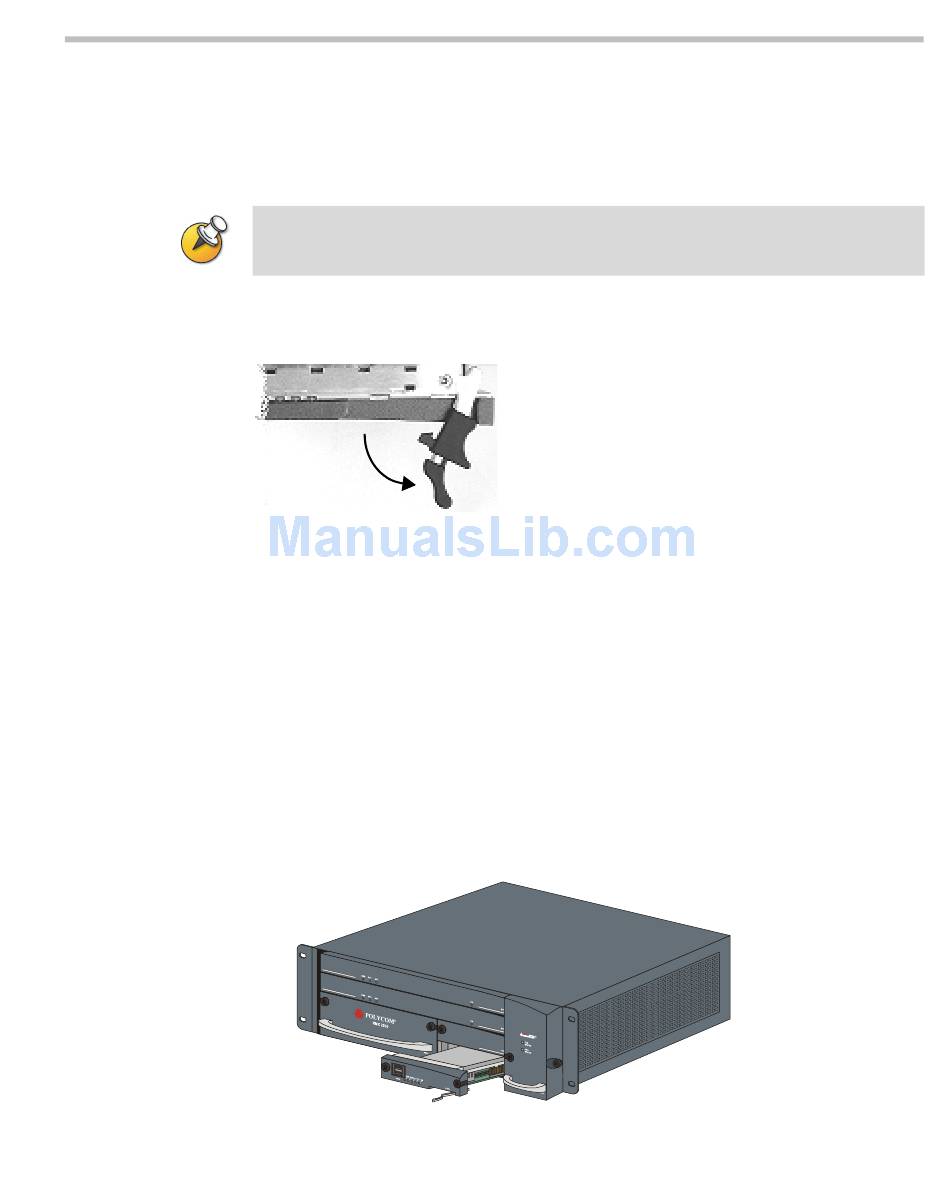

Lever Fully Open - Pull the lever handle(s) to a
fully open position (approx. 70 degrees), as
shown here
Module.
CNTL
Module out through the front panel.
CNTL Module out of its slot in
