LIGHTS AND SOUNDS - DIAL ALERT
Below is an explanation of the lights and sounds of the Dial-Alert
LIGHTS
ACPWR light on dialer is being powered by AC adapter.
ACPWR light off dialer is not receiving any AC power.
LOBATT. light off backup battery is connected and working.
LOBATT. light on backup battery is weak, battery needs to be replaced.
DISARM light off the dialer will dial the pre-programmed phone numbers
when activated.
DISARM light on the dialer will not dial any phone numbers when
activated.
Keypad backlight 1.) The dialer has no message in memory.
flashing 2.) Dial tone is not detected when the dialer is
activated, check phone line connection.
Keypad backlight If unit is powered by AC adapter or powered by back
up battery, back light stays on for five seconds
when any key on the keypad is pressed.
SOUNDS
Short beep You have pressed a key in the right order.
Two short beep's 1.) When the dialer is turned on for the first time.
2.) When the pre-programmed transmitters/sensors
are deleted from the memory.
Long beep You have made a mistake.
– –
9

INSTALLATION - AUDIO SENSOR

INSTALLING THE AUDIO SENSOR (AS-433)
1. Place the Audio Sensor as close as possible to
the siren or alarm unit of your existing security
system. This distance between the sensor and
the siren should be less than 6 inches.
Note: Selecting the place to locate the AS-433
is very critical, since this will affect the operation
and performance of the sensor. You should
avoid placing the Audio Sensor near any un-
wanted sound sources (such as TV, stereo)
to eliminate false trigger by background noise.
2. Plug in the DC adapter cord to the DC jack on
the Audio Sensor, and plug in the other end to
an electrical outlet. If there is no electrical out-
let nearby, the Audio Sensor can be operated
by 9V battery as well. Please refer to Battery
Maintenance on page 27 for more detail infor-
mation.
3. Apply the Velcro to the back of the sensor as
well as the wall.
4. Locate the Audio Sensor AS-433 and make
sure it is secure.
–

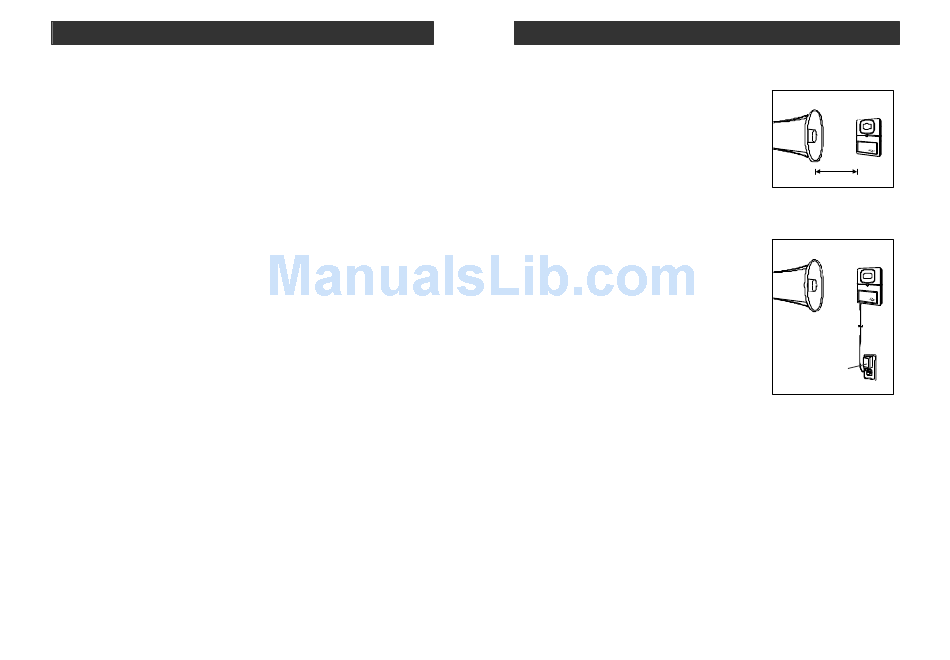

max. 6 inches (15cm)
Adapter
–
