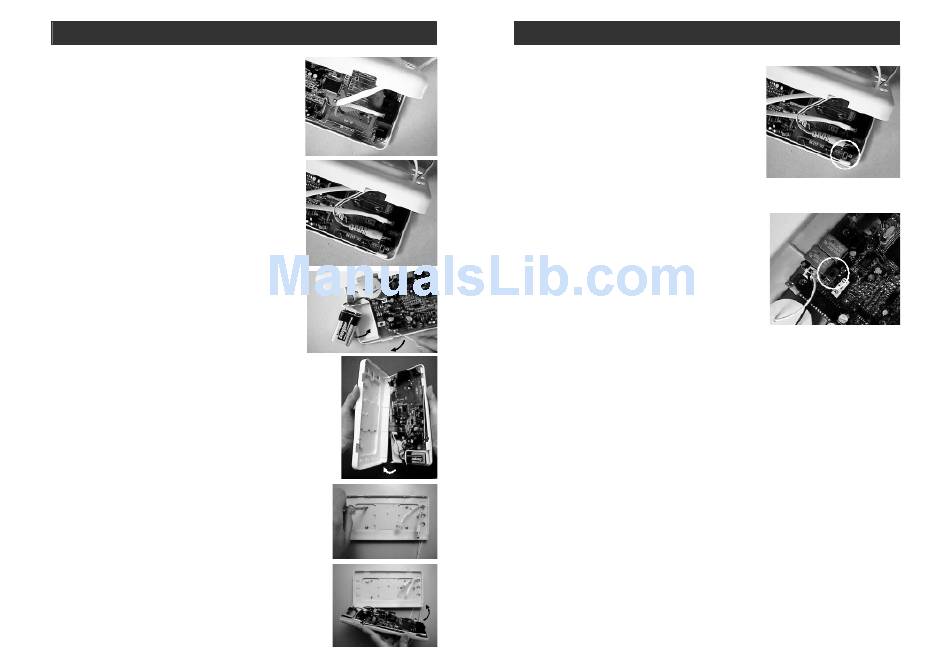

INSTALLATION - DIAL ALERT
2. Thread the telephone line through the top
hole in the back of the unit and plug it into
the "LINE" jack. If you want to have an
answering machine on the same line as
the dialer, thread the phone line through the
bottom hole in the back of the unit and plug
it into the "PHONE" jack of the dialer. The
phone line(s) must be inserted through
the back of the unit before it is attached
to the wall.
3. Thread the AC adapter cord through the top
hole in the back of the unit and plug it into
the AC connector on the circuit board as
shown. The adapter cord must be inserted
through the back of the unit before it is
attached to the wall.
4. Insert the 9 volt battery and rotate the antenna
from the inside of the dialer to the outside.
5. Firmly close the case. Insert and secure the
two screws to the bottom case near the two
tabs.
6. Using the template provided, insert the two
screws into the wall.
7. Gently hang the Dial-Alert to these two screws.
8. Plug the other end of the telephone cord into
a telephone jack. Plug the AC adapter into a
power outlet. The red AC PWR light will turn
on and the keypad backlight will flash.
CAUTION: After installation, please use two
screws (included) to fix the front and back case
together befo re hanging it on the wall. (When you
open the case, please remove the AC adapter
and the phone line from the wall outlet).
– –
7
INSTALLATION - DIAL ALERT
Switch Setting inside the dialer AD-433S
1. Tone/Pulse Switch
This dialer supports both Tone and Pulse
dialing. In order to change the setting, you
need to open the case by pressing the two
tabs on top of the dialer and pull open the
front. The Tone/Pulse switch is located at
the upper left corner of the circuit board (just
above the adapter jack). The switch is set
to Tone at the factory. This setting can be
changed by sliding the switch to the appro-
priate position.
2. Speaker On/Off Switch
T h e s p e a k e r m u s t b e o n d u r i n g p r o g r a mmi ng
a n d r e c o r d i n g t h e v o i c e message i n o r d e r
t o u s e t h e p l a y b a c k f e a t u r e . F o r s e c u r i t y p u r -
p o s e s , t h e s p e a k e r may be t u r n e d o f f a f t e r
p r o g r a mmi n g t o a l l o w f o r s i l e n t d i a l i n g
whent h e d i a l e r i s a c t i v a t e d .
The On/ Of f swi t c h f o r t h e s p e a k e r i s l o c a t e d
on t h e l o w e r r i g h t c o r n e r o f t h e c i r c u i t b o a r d .
T h e d e f a u l t s e t t i n g f o r t h e s p e a k e r i s " O n " .
– –
