- Page 1 ® www.skylinkhome.com Home Smart Center MODEL: ML-001 / ML-100 CUSTOMER SERVICE 17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3 Tel : (905) 456-8883 Fax : (905) 456-7819 PATENTED P/N. 101Z379 OCT, 2006 ©2006 SKYLINK GROUP Email : support@skylinkhome.com...
- Page 2 Home Smart Center USER'S INSTRUCTIONS...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. - Page 4 IC Statement ‘’This product meets the applicable Industry Canada technical specifications.” Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications com- pany. The equipment must also be installed using an acceptable method of connection.
-
Page 5: Table Of Contents
Should you experience trouble with this equipment, please contact Skylink Customer Support at 1-800-304-1187 for repair or warranty information. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. -
Page 6: Introduction
INTRODUCTION Overview Congratulations on your purchase of a Home Smart Center. This is a security control panel which not only functions as a security system, but also monitors your premises by giving you alert notification when the system is not armed. It is also a home automation center, which allows you to remotely control house- hold appliances and lights, even when you are away from home. -
Page 7: System Configuration
SYSTEM CONFIGURATION Master Password ____________________ Secondary Password ____________________ Duress Password ____________________ Sensor locations and settings ZONE SENSOR 1 SENSOR 2 BEEP / ALARM AUTO MUTE Example Front Door Front Window Beep / Alarm Y / N Phone number settings PHONE MEMORY PHONE NUMBER REDIAL COUNT Example... - Page 8 INTRODUCTION 1. Zone LEDs 11. Built-in Siren and Speaker 2. Numeric Keypad 12. Programming button 3. Arm button 13. Buzzer Mode Selector 4. Status button 14. Phone Jack for external phone 5. Mute button 15. Line Jack for telephone line 6.
-
Page 9: Installation

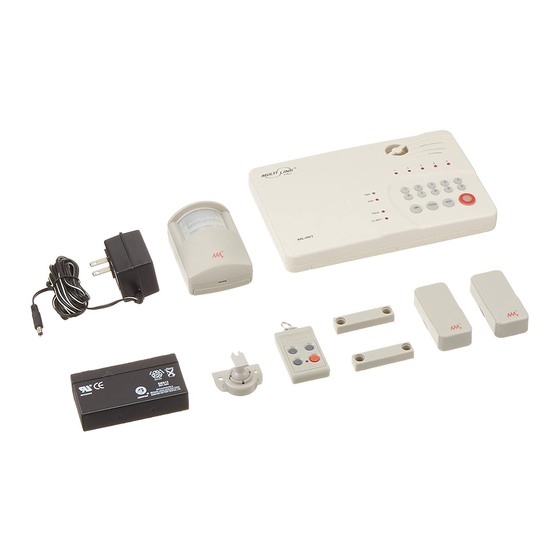

ACCESSORIES Audio Sensor (AS-101) - When audio level exceeds preset limit, it will trigger the alarm - Place beside smoke detector, CO detector, so when these detectors are triggered, the control panel will be triggered Remote Control (4B-101) - Additional keychain remotes for other family members - To arm, disarm or trigger the panic alarm with this remote Keypad Control (KP-434) - External keypad control... - Page 10 INSTALLATION 4. Insert the rechargeable battery to the battery compartment. There are 2 different types of rechargeable battery for 2 markets: a. North American Version: Lead Acid Connect the 2 wires to the battery. Red wire connects to the “+” terminal on the battery. Black wire connects to the “-”...
-
Page 11: Troubleshooting
TROUBLE SHOOTING Sensors When a sensor is triggered, the - Make sure the battery in the sensor is control panel doesn’t respond at all, installed properly, pay attention to the what is the problem? polarity. - Make sure the sensor is learned to the control panel. -
Page 12: Phone Number Programming
INSTALLATION Phone Number Programming You can program up to 6 Emergency Phone Numbers. When the system is in panic, the control panel will call these phone numbers and announce its status. The 6 emergency phone numbers include: - 5 voice message phone numbers - 1 Contact ID message phone number Program the following for Voice Message Phone Numbers - Phone memory (from 1 to 5), this is where the phone numbers will be stored... -
Page 13: Home Automation
HOME AUTOMATION ® This row Buttons to Disable Event Tigger Zone LED : Off Press once will enable “Event Trigger On”, press again will enable “Event Trigger Off”. This row of buttons operates in toggle manner, between event trigger on and event trigger off. This row Buttons to Enable Event Trigger Zone LED : 1) On (Event Trigger On) -
Page 14: Contact Id Phone Number
INSTALLATION Contact ID Phone number You can program a telephone number for calling to the central monitoring station. When the system is in panic, the control panel will call this phone number and will send out a Contact ID message with event code 140, which represents “General Alarm”. -
Page 15: Account Number Programming
HOME AUTOMATION ZONE LED DESCRIPTION Zone is not occupied by any control module Flashes twice That means a remote has occupied that zone. THIS IS NOT A CONTROL MODULE, THEREFORE, SHOULD NOT BE ERASED. Flashes once That zone is occupied by a control module. You may select this zone to erase this control module. -
Page 16: Deactivating The Digital Dialer
INSTALLATION Deactivating the Digital Dialer You can deactivate the digital dialer by erase the phone number memory for central monitoring station. Step Keys Function Description Press [PROG] Enter Program- Enter master Press [MPIN] ming mode password to programming mode Press [1] Select phone number programming... -
Page 17: Installing Door/Window Sensors
HOME AUTOMATION Control Module [1] is represented by zone LED 1 ® Part 2 Learn signal from Control Panel to Control Module Step Keys Function Description Press and hold Enter the learn button Programming on the Control mode Module until its LED starts to flash. -
Page 18: Installing Motion Sensor
INSTALLATION (ML-100 Only) Zone 1 Sensor 1 Triggered 2. Beep___Beep___ Beep___Beep___ Note: - Try to mount the sensors as far away from the floor as possible to avoid damaging them. Mounting the sensors at a higher position will also result in better operating range. - Page 19 HOME AUTOMATION The Control Panel can be used to control lights and home applicances with a Control Module, (Control Module is sold separately). Garage door opener can be controlled with a Garage Door Receiver (sold separately). The Control Panel can control up to 5 Control Modules / Garage Door Receivers.
-
Page 20: Alert Mode
OPERATION The Control Panel is always in one of the 2 operating modes: 1. Alert Mode - When the system is not armed (ARM LED off), it is in alert mode. 2. Alarm Mode - When the system is armed (ARM LED on), it is in alarm mode. Alert Mode The Control Panel will be in alert mode automatically if the system is not armed. -
Page 21: Mute
ADVANCED PROGRAMMING ZONE DEPENDENT FEATURES SENSOR 1 SENSOR 2 Location Location Beep / Alarm Auto Mute zone 1 Beep / Alarm Y / N zone 2 Beep / Alarm Y / N zone 3 Beep / Alarm Y / N zone 4 Beep / Alarm Y / N... -
Page 22: System Status
OPERATION System Status The control panel continuously monitors the system status as well as all the sensors status. It will monitor occurrences such as triggered sensors, low battery sensors, malfunction sensors, or phone line failure etc. In order to check the system status, user can press the “Status” button on the control panel, voice announcement will be made regarding the system and sensor status. -
Page 23: Disarming The System
ADVANCED PROGRAMMING Remote [6] is represented by zone LED 1 ® REMOTE LOCATION ZONE LED Erase Keychain / Keypad Remotes Follow the instructions below to erase keychain or keypad remotes / receivers. Step Keys Function Description [PROG] Enter master Enter [MPIN] password to pro- Programming... -
Page 24: Disarming A Triggered Control Panel
OPERATION 2. You must enter a valid password, either the Master Password, or Secondary Password to disarm the system before entry delay expires. 3. When a valid password is entered, you will hear “System Disarmed” and the entry delay beeping will stop, the ARM LED will be off. Note: - The control panel can also be disarmed remotely when nobody is home, with a touch tone phone. -
Page 25: Panic
PROG LED will be - Control other Skylink receiver off. System Failure Control Panel constantly monitors itself and its sensors. If there are any trouble conditions, the control panel will advise the user. These trouble conditions include:... -
Page 26: Sensor Failure
OPERATION Sensor Failure The control panel constantly monitors its sensors, if the control panel fails to communicate with any sensors, it will notify the user by: 1. The zone LED of the failed sensor will be on steadily; 2. Voice announcement “zone X sensor Y failure” will be played. When sensor failure occurs, try the following: 1. - Page 27 ADVANCED PROGRAMMING Auto Mute When a sensor is triggered in alert mode, audio warning will be emitted, either beep or alarm. For example, if a door is opened, the beep will not stop until the door is closed. If the door is open for 2 hours, the beep will go on for 2 hours. There are times that this is not desired.
-
Page 28: Coummunication
COMMUNICATION Receiving the Emergency Call If you are on the list as one of the recipients of the emergency call, you should read the following instructions carefully. You should also notify all the persons you will be calling so they know how to react when they receive the emergency call. The control panel will call you when there are emergencies such as break-ins, smoke, fire events, or someone at home needs assistance. -
Page 29: Remote Operation By Telephone
ADVANCED PROGRAMMING System Armed (Alarm Mode) If a zone is set to “Beep”, the control panel will give entry / exit delay. If a zone is set to “Alarm”, the siren will sound immediately without entry delay - Alarm Mode (System Armed): If a sensor is triggered (i.e. opening a door) with the alarm setting on, the siren will sound immediately without entry delay, it is called “Instant Alarm”. -
Page 30: Erase Sensors
COMMUNICATION Table 1: Remote Phone Operations SYSTEM OPERATION PHONE COMMAND DESCRIPTION Turn on device x +[*] Turn devices on will hear [Device X On]. When the [x] = 1 to 5 control module receives the on signal, it will turn on the plugged in device, and send a confirmation back to the control panel.
