SkyLink SC-100 Guide Manual

Total protection alarm system
Hide thumbs Also See for SC-100 Guide:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Using

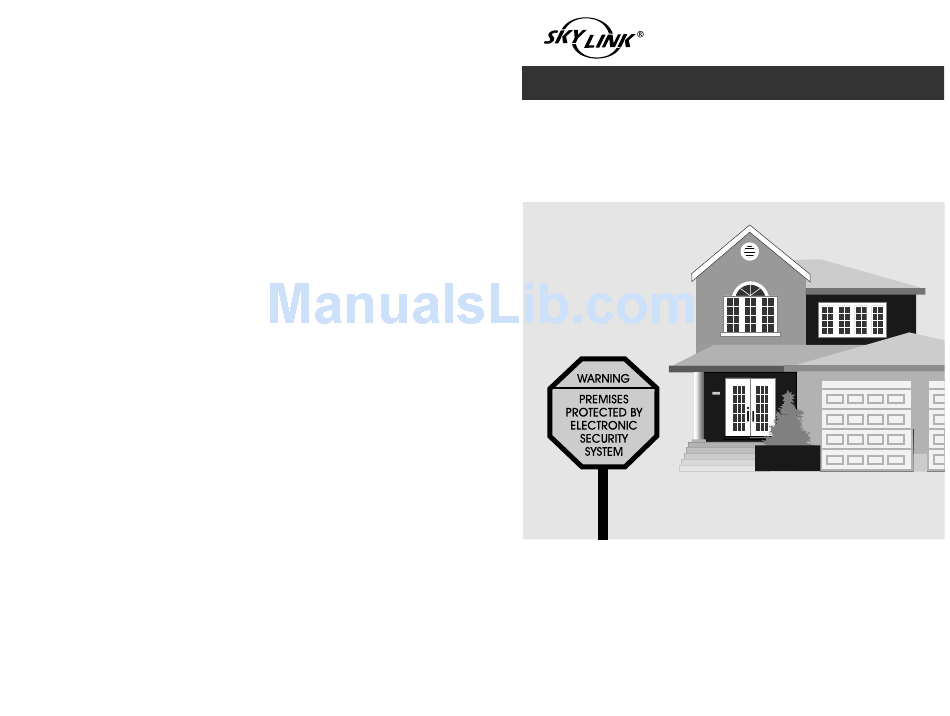

www.skylinkhome.com
Total Protection Alarm System
MODEL: SC-100
CUSTOMER SERVICE
17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3
Tel : (800) 304-1187
Fax : (800) 286-1320
PAT. D410633
P/N. 101Z716
JUNE, 2009
Email : support@skylinkhome.com
6243000B1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-100 Guide and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SkyLink SC-100 Guide

Summary of Contents for SkyLink SC-100 Guide

  • Page 1 www.skylinkhome.com Total Protection Alarm System MODEL: SC-100 CUSTOMER SERVICE 17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3 Tel : (800) 304-1187 Fax : (800) 286-1320 PAT. D410633 P/N. 101Z716 JUNE, 2009 Email : support@skylinkhome.com 6243000B1...
  • Page 2 SKYLINK TECHNOLOGIES INC. Your Guide to the Total Protection Alarm System MODEL: SC-100 The SC-100 Total Protection Alarm System contains all the above items. – –...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS ADDITIONAL ACCESSORIES Audio Sensor (AS-433) PACKAGE CONTENTS...................... 4 - Detects alarm sound from existing security system alarm; sends signal to Dial-Alert. OVERVIEW........................... 5 - Eliminates need for monitoring service. PLANNING YOUR HOME SECURITY NEEDS.............. 6 - 9V alkaline battery included INSTALLATION -Control Panel........................

  • Page 4: Package Contents

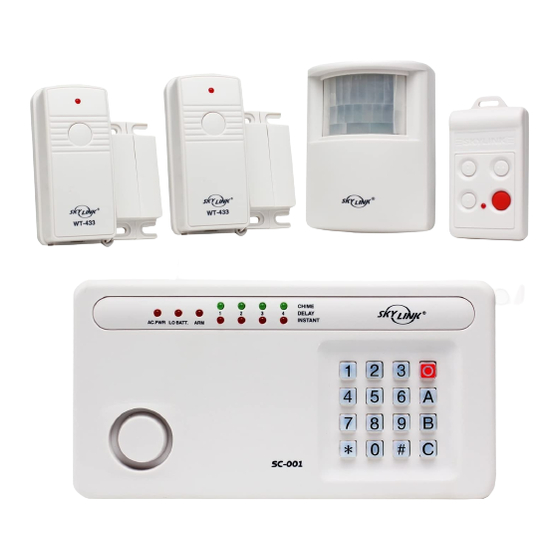

    PACKAGE CONTENTS ADDITIONAL ACCESSORIES Everything required for installation is included with this package Audio Alarm (AA-433) - Additional indoor/outdoor siren 1 Control Panel (SC-001) includes: - Water resistant 1 antenna (installed) - 110 dB siren with flashing LED 1 AC adapter - Operates by AC adapter with 9V alkaline 1 9 volt alkaline battery back up battery (included)

  • Page 5: Overview

    You have just purchased one of the most reliable and up-to-date wireless security systems on the market today. Skylink is the first company to incorporate the rolling Motion Sensor (PS-434A) code technology in a home/business security system. This innovative technology...

  • Page 6: Planning Your Home Security Needs

    PLANNING YOUR HOME SECURITY NEEDS BATTERY MAINTENANCE Before you begin to install your security system, analyze the premises to deter- DOOR/WINDOW SENSOR BATTERY mine your security needs. Consider those doors and windows which are more Each door/window sensor operates on a 12 volt likely to be used as points of entry by an intruder, the ones that are poorly lit or alkaline battery that is inside the transmitter.
  • Page 7 BATTERY MAINTENANCE INSTALLATION MOTION SENSOR BATTERY The Control Panel, door/window sensors and the motion sensor are installed using the screws included. We have also included double sided tape, (for the The Motion Sensor operates on a 9 volt alkaline battery accessible beneath a door/window sensor and the motion sensor) to use for temporary installation sliding panel on the bottom of the unit.
  • Page 8 INSTALLATION BATTERY MAINTENANCE The SC-100 Security System comes with 5 batteries that at some point you may 4. Attach the unit to the wall. If hanging the unit, have to replace: insert two screws using the template provided. If screwing the back directly to the wall, take the 9 volt alkaline battery for the Control Panel back plate right off by prying apart one hinge.
  • Page 9 Emergency Dialer, which will then send pre-recorded Once a location is selected, mount the ball-head messages for help. Do not activate this sequence if your Skylink security system joint to this location by screws provided, (see contains the Audio Alarm AA-433.
  • Page 10 INSTALLATION ADVANCED PROGRAMMING premises without activating the alarm. Zone 2 (the motion sensor), is off allowing WALK TEST movement in the premises and zones 3 & 4 are instant. After mounting the sensor at the desired location, it is Option 2: Advanced Home 2 - use to secure the premises while staying in the important to perform a walk test in order to determine building.

  • Page 11: Testing Your System

    ADVANCED PROGRAMMING TESTING YOUR SYSTEM STANDARD ARMING SEQUENCES Before you learn how to use your security system, test to make sure that the door/ window sensors and the motion sensor are communicating with the Control Panel. Each zone can be programmed to react 5 different ways when it receives a signal Set the Control Panel to CHIME MODE which will emit a subtly two tone chime from a remote sensor.

  • Page 12: Lights And Sounds

    ADVANCED PROGRAMMING LIGHTS AND SOUNDS 4. Press the number key to identify which zone to add the Motion Sensor to [1, 2, Below is an explanation of the lights and sounds of the Control Panel. 3 or 4]. We recommend you program the motion sensor to zone 2. The zone light will flash for eight seconds.

  • Page 13: Standard Programming

    ADVANCED PROGRAMMING STANDARD PROGRAMMING To program sensors to send their signals to a different zone, you must first clear Now that the system is installed and the sensors are communicating with the them from communicating with their current zone. Control Panel, it is time to learn how to do basic programming of your security system.

  • Page 14: Program Sensors To Different Zones

    It will also send a signal to the Emergency Dialer silently which will then automatically send a prerecorded message for help. Note: Do not use Emergency Silent Alarm [PIN], [B], [B] if your Skylink security system includes the Audio alarm AA-433, since the Silent alarm is not designed to work with AA-433, which means [PIN], [B], [B] will sound the siren of the AA-433 instantly.
  • Page 15 PASSWORDS KEYCHAIN TRANSMITTER (4B-434) The Keychain Transmitter conveniently fits on any keychain. It allows you to arm SECONDARY PERSONAL IDENTIFICATION NUMBER (SPIN) and disarm the system from a distance of approximately 100 feet from the Control You may want to give someone limited access to the system, (baby sitter, cleaner, Panel.

  • Page 16: Control Panel

    KEYCHAIN TRANSMITTER (4B-434) PASSWORDS TO DISARM THE SYSTEM, OR DEACTIVATE THE SIREN USING THE MASTER PERSONAL IDENTIFICATION NUMBER (MPIN) KEYCHAIN TRANSMITTER Security access to the SC-100 is controlled by a MASTER PERSONAL IDENTIFI- CATION NUMBER (MPIN) or SECONDARY PERSONAL IDENTIFICATION When the system is armed: NUMBER (SPIN).
