Vandal Resistant Panel Layouts - Videx VANDAL RESISTANT Technical Manual

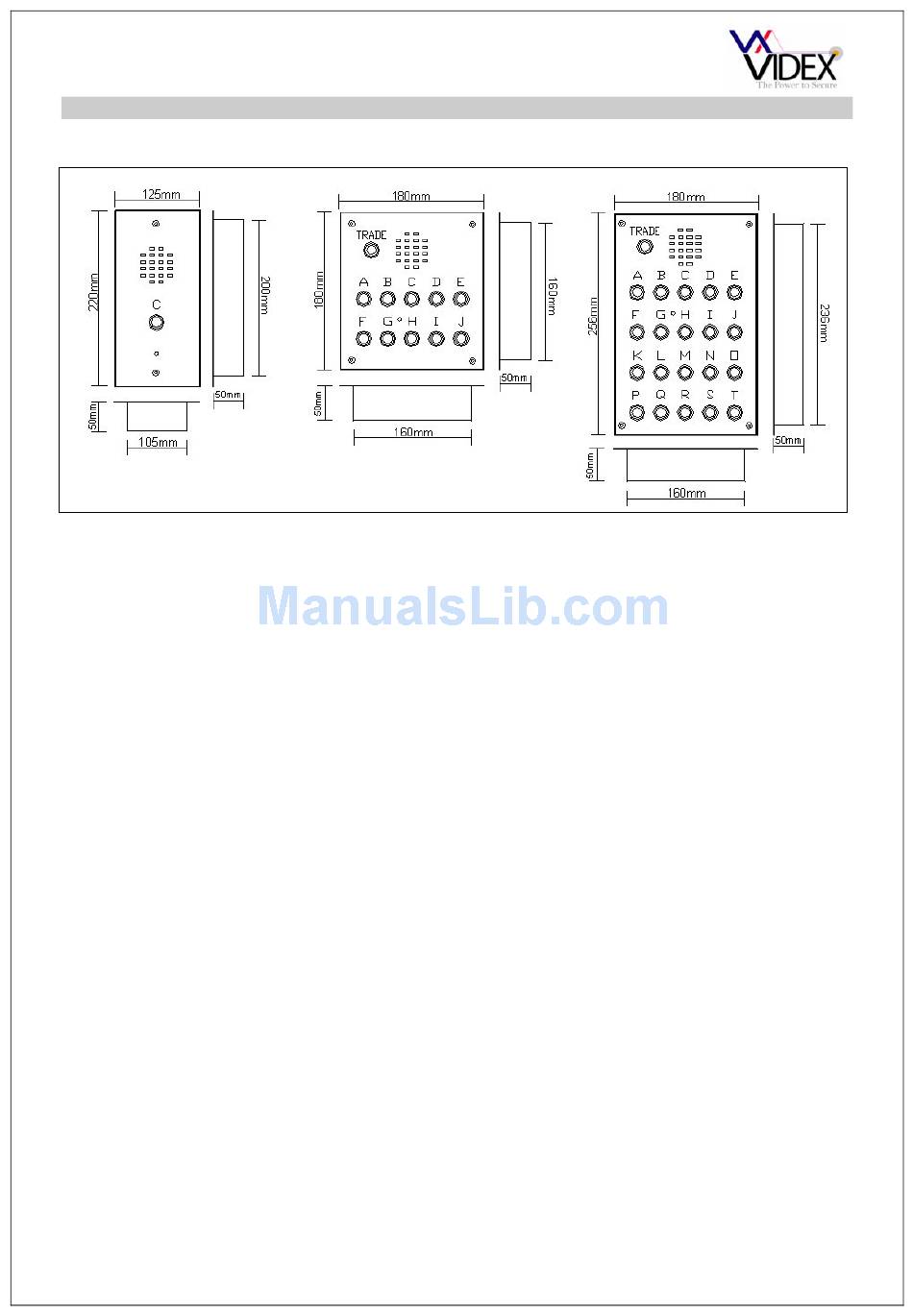

VANDAL RESISTANT PANEL LAYOUT AND SIZES
Standard audio panels
1 BUTTON = C
2 BUTTON = B, D (Note: Also available in 125mm 220mm panel style)
3 BUTTON = A, C, E
4 BUTTON = B, D, G, I
5 BUTTON = A, C, E, G, I
6 BUTTON = A, C, E, F, H, J
7 BUTTON = A, B, C, D, E, G, I
8 BUTTON = A, B, C, D, E, G, H, I
9 BUTTON = A, B, C, D, E, F, G, I, J
10 BUTTON = A, B, C, D, E, F, G, H, I, J
11 BUTTON = A, C, E, F, H, J, K, M, O, Q, S
12 BUTTON = A, C, E, F, H, J, K, M, O, P, R, T
13 BUTTON = A, C, E, F, H, J, K, M, O, P, Q, S, T
14 BUTTON = A, C, E, F, H, J, K, M, O, P, Q, R, S, T
15 BUTTON = A, B, C, D, E, F, G, H, I, J, K, L, M, N, O
16 BUTTON = A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, R
17 BUTTON = A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, Q, S
18 BUTTON = A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, R, T
19 BUTTON = A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, S, T
20 BUTTON = A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T
Other standard panel sizes:-
1 – 10 button with video [180mm (W) x 256mm (H) x 50mm (D)]
11 – 20 button + video [200mm (W) x 350mm (H) x 50mm (D)]
1 – 10 button + proximity [180mm (W) x 256mm (H) x 50mm (D)]
11 – 20 button + proximity [200mm (W) x 350mm (H) x 50mm (D)]
1 – 10 button + codelock [180mm (W) x 256mm (H) x 50mm (D)]
11 – 20 button + codelock [200mm (W) x 420mm (H) x 50mm (D)]
1 – 10 button + video & proximity [200mm (W) x 350mm (H) x 50mm (D)]
1 – 10 button + video & codelock [200mm (W) x 420mm (H) x 50mm (D)]
PAGE 5 of 24 AUDIO/VIDEO VANDAL RESISTANT TECHNICAL MANUAL VER1.1
