WIRING DIAGRAM
PAGE 21 of 24
AUDIO/VIDEO VANDAL RESISTANT TECHNICAL MANUAL

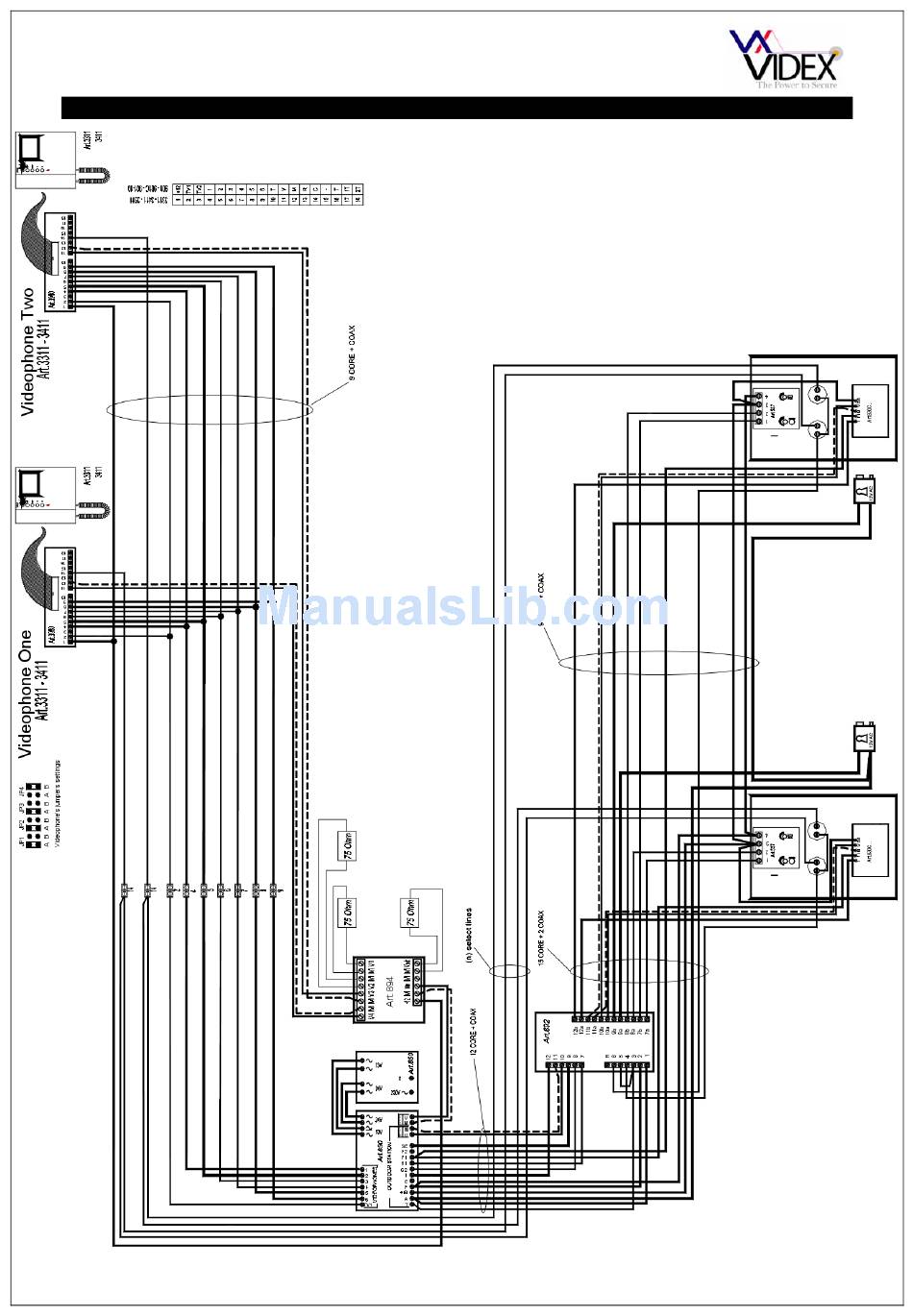

This diagram shows a two entrance
system. Two VR video door panels with
two call buttons connected to two
apartments.
VER1.1
