VIDEOKIT

VK8K/6458 SERIES

"6 Wire" bus one way, two way videokit

VK8K

VK8KC

66250863-EN - V4.0 - 15/03/19

Installation handbook

6458

We recommend

This equipment is installed by a

Competent Electrician, Security or

Communications Engineer.

Rev.0.1

Table of Contents

Need help?

Do you have a question about the VK8K Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Videx VK8K Series

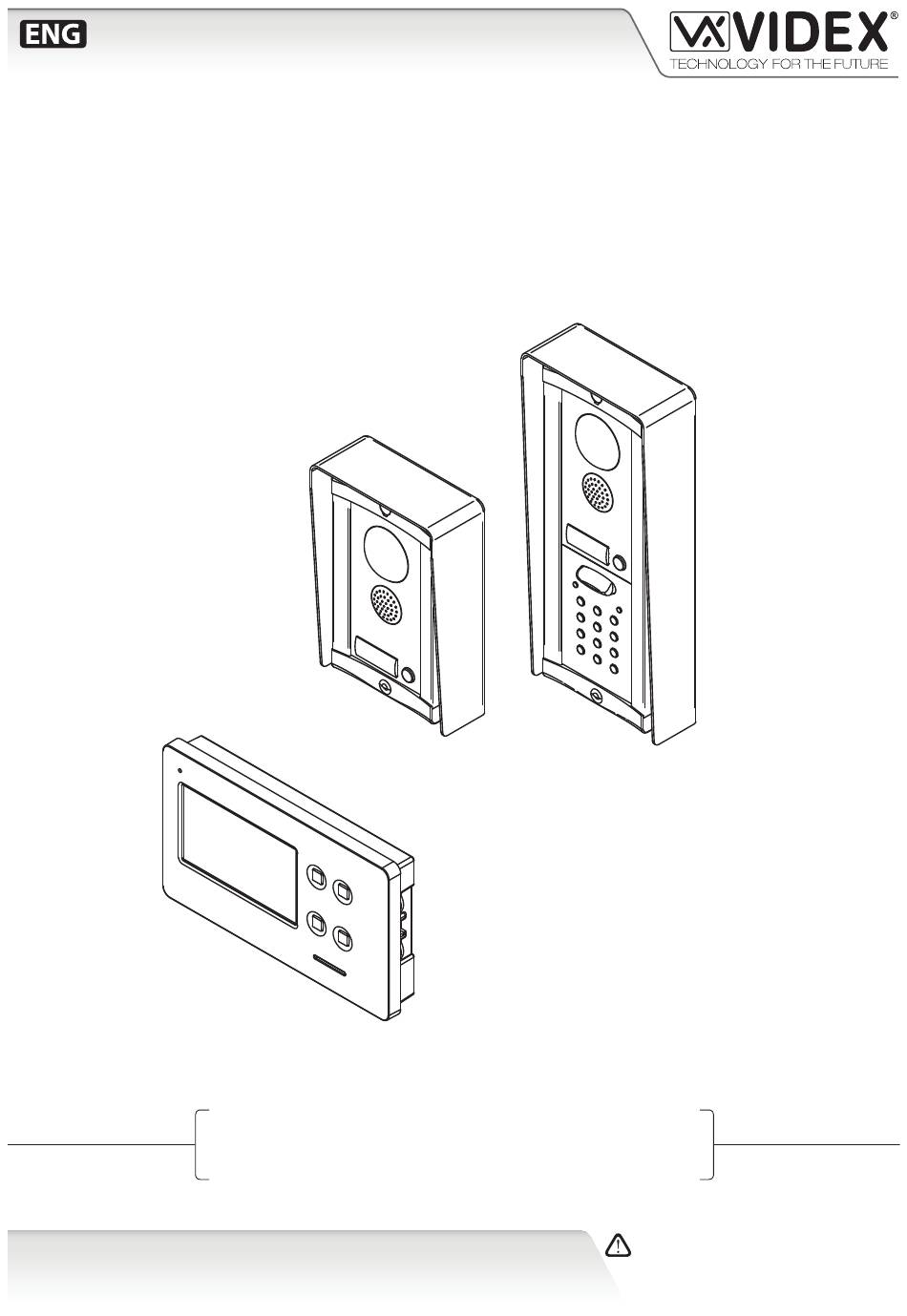

Page 1 VIDEOKIT Rev.0.1 VK8K/6458 SERIES “6 Wire” bus one way, two way videokit VK8K VK8KC 6458 Installation handbook We recommend 66250863-EN - V4.0 - 15/03/19 This equipment is installed by a Competent Electrician, Security or Communications Engineer.
Page 2: Table Of Contents
This manual has been written and revised carefully. The instructions and the descriptions which are included in it are referred to VIDEX parts and are correct at the time of print. However, subsequent VIDEX parts and manuals, can be subject to changes without notice.
Page 3: System Components And Available Versions
VK8K/6458 Series “6 wire Bus” videokit System components and available versions VK8K/6458 Colour videokit. OUTDOOR INDOOR STATION STATION Videophone Art. 6458 pag. 14 Camera unit Art. 8833 pag. 7 ACCESSORIES Power supply Art. 850K pag. 5 Video distributor Flush Surface Art. 316N Mounting Mounting pag.
Page 4 VK8K/6458 Series “6 wire Bus” videokit System components and available versions VK8KC/6458 Colour videokit plus a codelock module. OUTDOOR INDOOR STATION STATION Videophone Art. 6458 pag. 14 Camera unit Art. 8833 pag. 7 ACCESSORIES Codelock Power supply module Art. 850K Art. 8800 pag. 5 pag.
Page 5: General Directions For Installation
VK8K/6458 Series “6 wire Bus” videokit General directions for installation CONNECTION TO MAINS The system must be installed according to national rules in force, in particular we recommend to: • Connect the system to the mains through an all-pole circuit breaker which shall have contact separation of at least 3mm in each pole and shall disconnect all poles simultaneously;...
Page 6: Troubleshooting Guide
VK8K/6458 Series “6 wire Bus” videokit Troubleshooting guide In case of system failure, try the following preliminary checks: • Check that the cables are connected as shown in the installation diagram and that the cables are firmly fixed into the relevant terminals; •...

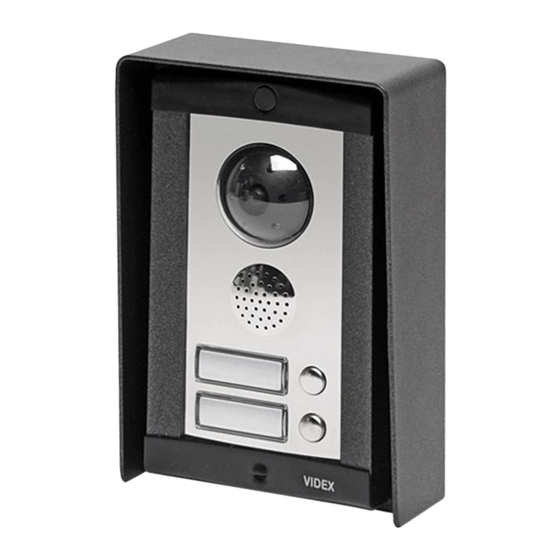

Page 7 VK8K/6458 Series “6 wire Bus” videokit Art. 8833 Speaker unit Rev.0.1 When installing you see the back side of the door panel. 8833-1 Colour Aluminium 8833-2 B&W Stainless steel Fig. 1 Front Fig. 2 Back (upside down view) CONTROLS (SPEAKER & MICROPHONE VOLUME) Trimmer to adjust the speaker volume.
Page 8: Art. 8833 Speaker Unit
VK8K/6458 Series “6 wire Bus” videokit Art. 8833 Speaker unit HOW TO CONNECT ELECTRIC LOCK The “door-open” relay can operate either as “dry contact” or “capacitive discharge” mode. • In “dry contact” operation mode the relay works in a traditional way, a power supply or a power source is needed to operate the lock (12-24Vac/dc 2A max), and activation lasts according to the door opening time programmed.
Page 9 GENERAL DIRECTIONS FOR INSTALLATION In order to achieve the best results from the schematics described it is necessary to install only original VIDEX equipment, strictly keeping to the items indicated on each schematic and follow these General Directions for Installation: •...
Page 10: Art. 8800 - Art. 8800-3 Digital Codelock Module
VK8K/6458 Series “6 wire Bus” videokit Art. 8800 - Art. 8800-3 Digital codelock module PROGRAMMING • Enter ENGINEER’S CODE: first time type six times 1 (111111 First time six times ENTER THE factory preset) and press ENTER (The red LED will illuminate). 1 “111111”...
Page 11 VK8K/6458 Series “6 wire Bus” videokit Art. 8800 - Art. 8800-3 Digital codelock module RE-PROGRMMING GUIDE Engineer’s code ENTER THE ENGINEER’S CODE Press Enter Relay 1 code (Red light will illu- Relay 2 code minate*) Alternatively enter a RE-ENTER THE new engineer’s code ENGINEER’S CODE Relay 3 code*** (4 to 8 digits)
Page 12 VK8K/6458 Series “6 wire Bus” videokit 8000 Series Surface and flush mounting door station installation EXAMPLE: INSTALLING A TWO MODULE OUTDOOR STATION Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig.
Page 13: 8000 Series Surface And Flush Mounting Door Station Installation
VK8K/6458 Series “6 wire Bus” videokit 8000 Series Surface and flush mounting door station installation INSTALLING A FLUSH MOUNTING DOOR STATION 1. Mount back box (Fig. 2) at 165 cm from ground level (Fig. 1); 2. If more than one flush box is needed, connect them by using the plastic spacers provided (Fig. 2);...
Page 14 VK8K/6458 Series “6 wire Bus” videokit Art. 6458 4.3" hands free colour display digital videophone 191mm 27mm – PT3 PT2 1 2 3 6 7 8 DSW1 DSW2 Fig. 1 Fig. 2 DESCRIPTION LEGEND Surface mount hands free videophone incorporating a 4.3” Hi- Connection terminals Res full colour active matrix LCD monitor specific for “6 wire”...
Page 15: Art. 6458 4.3" Hands Free Colour Display Digital Videophone
VK8K/6458 Series “6 wire Bus” videokit Art. 6458 4.3" hands free colour display digital videophone LEDS CONTROLS AND ADJUSTMENTS Brightness control Privacy on LED (sliding wheel). It illuminates when the privacy service is enabled. Call tone volume control Generic use LED (3 levels).
Page 16 VK8K/6458 Series “6 wire Bus” videokit Art. 6458 4.3" hands free colour display digital videophone CONNECTION TERMINALS SIGNALS TECHNICAL SPECIFICATION Power Supply: 24Vac in or 20Vdc in 20Vdc Input/Output (As input 16÷20Vdc 0,5A – as out- Power consumption: Stand-by: 50mA Max put 20Vdc 0,5A max) Operating: 250mA Max –...
Page 17 VK8K/6458 Series “6 wire Bus” videokit 6400 Series Wall mounting instructions Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 1. In order to install the videophone, it is necessary to remove the cover, which contains all the electronics, from the base: insert a 5.5mm flat screw driver into the clip then rotate clockwise until you listen a “CLICK!”.
Page 18 VK8K/6458 Series “6 wire Bus” videokit Art. 316 - Art. 316N 4 Way video distributor for system with balanced video signal DESCRIPTION ART. 316 4 Way video distributor for systems with balanced video signal. In white plastic ABS box 11x70x30mm surface mount. ART. 316N As Art.
Page 19: Installation Diagrams
Art.8833-1 Art.8833-1 Title: Data creazione: Foglio 03/12/2015 Titolo: Data modifica: 03/12/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63020 Monte Giberto (AP) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 vk8k64h-002.dwg www.videx.it - info@videx.it...
Page 20 VK8K/6458 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK8K-2/6458, VK8K-2S/6458 03/12/2015 03/12/2015 Marco Rongoni vk8k64h-003.dwg - 20 - VK8K/6458 Series - Installation handbook 66250863-EN - V4.0 - 15/03/19...
Page 21 Art.8833-1 Art.8833-1 Title: Data creazione: Foglio 03/12/2015 Titolo: Data modifica: 03/12/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 vk8k64h-004.dwg www.videx.it - info@videx.it...
Page 22 VK8K/6458 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK8KC-2/6458, VK8KC-2S/6458 03/12/2015 16/12/2015 Marco Rongoni vk8k64h-005.dwg - 22 - VK8K/6458 Series - Installation handbook 66250863-EN - V4.0 - 15/03/19...
Page 23 Art.8833-1 Art.8833-1 Title: Data creazione: Foglio 03/12/2015 Titolo: Data modifica: 02/12/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 vk8k64h-006.dwg www.videx.it - info@videx.it...
Page 24 Art.8833-1 Art.8833-1 Title: Data creazione: Foglio 03/12/2015 Titolo: Data modifica: 15/12/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 vk8k64h-007.dwg www.videx.it - info@videx.it...
Page 25 VK8K/6458 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK8KC-1/6458, VK8KC-1S/6458 WITH 3 ADDITIONAL VIDEOPHONES 03/12/2015 15/12/2015 Marco Rongoni vk8k64h-008.dwg - 25 - VK8K/6458 Series - Installation handbook 66250863-EN - V4.0 - 15/03/19...
Page 26 VK8K/6458 Series “6 wire Bus” videokit Installation diagrams VIDEOKIT VK8K-2/6458 - VK8K-2S/6458 WITH ART. 316 03/12/2015 03/12/2015 Marco Rongoni vk8k64h-001.dwg - 26 - VK8K/6458 Series - Installation handbook 66250863-EN - V4.0 - 15/03/19...
Page 27 ID:1 ID:2 Title: Data creazione: Foglio 28/10/2015 Titolo: Data modifica: 28/10/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 vk8k-1-001-2e.dwg www.videx.it - info@videx.it...
Page 28 - 28 - 66250863-EN - V4.0 - 15/03/19...
Page 29 - 29 - 66250863-EN - V4.0 - 15/03/19...
Page 30 - 30 - 66250863-EN - V4.0 - 15/03/19...
Page 31 DISPOSAL In accordance with the Legislative Decree no. 49 of 14 March 2014 “Implementation of the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)”. The crossed-out bin symbol on the equipment or on the packaging indicates that when the product reaches the end of its lifetime, it must be collected separately from mixed municipal waste.
Page 32 MANUFACTURER VIDEX ELECTRONICS S.P.A. FABBRICANTE Via del Lavoro, 1 FABRICANT 63846 Monte Giberto (FM) Italy FABRICANTE Tel (+39) 0734 631669 FABRIKANT Fax (+39) 0734 632475 www.videx.it - info@videx.it CUSTOMER SUPPORT VIDEX ELECTRONICS S.P.A. UK Customers only: SUPPORTO CLIENTI www.videx.it - technical@videx.it...
