1-5-11 Others

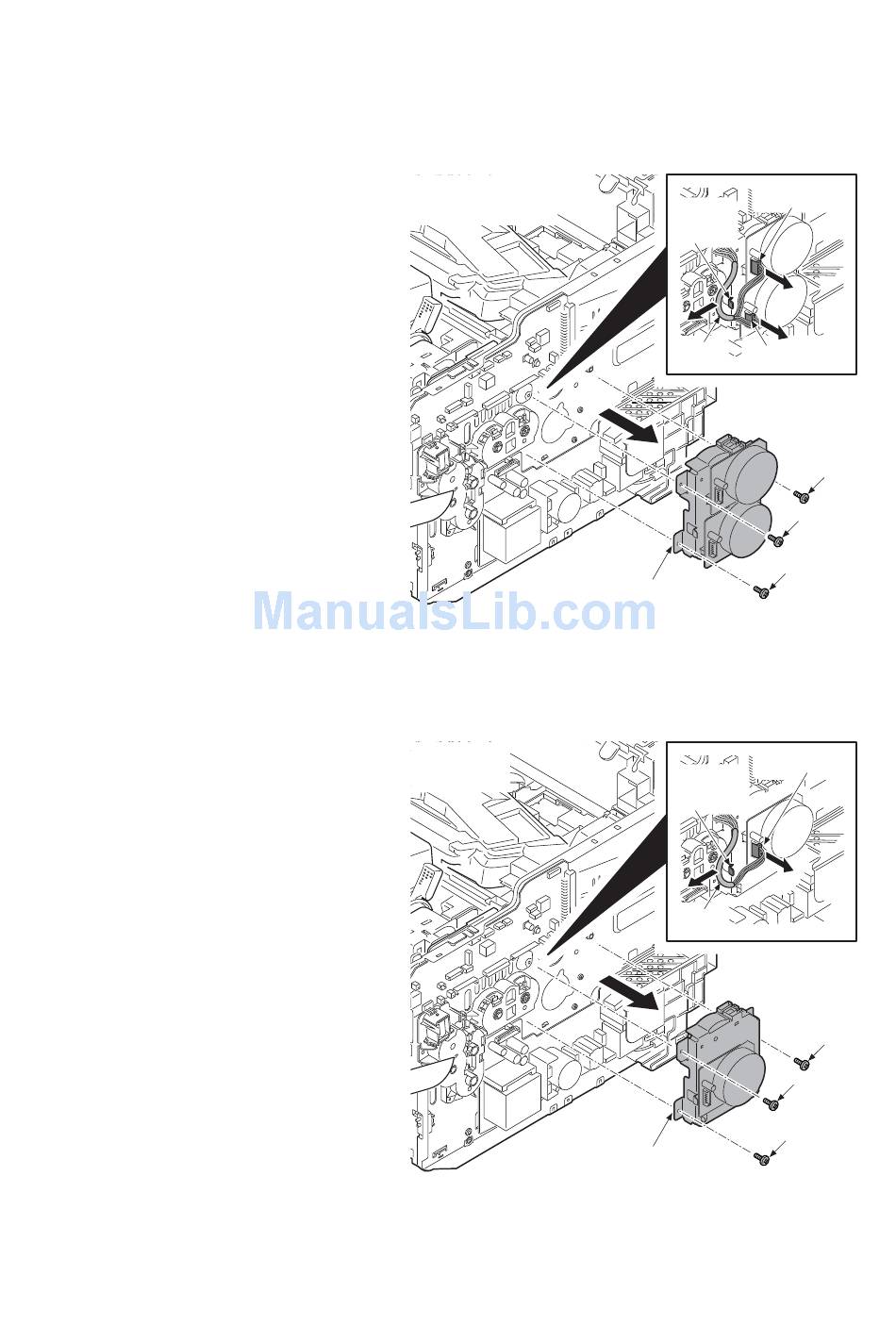

(1) Detaching and refitting the main driving motor unit

Procedure
1. Remove the right upper cover.
(See page 1-5-4)
2. Remove the right lower cover.
(See page 1-5-4)
3. Pull the connector out from the motor
and then release the wires from wire
holder.
4. Remove three screws and then remove
the main driving motor unit.
5. Check or replace the main driving motor
unit and refit all the removed parts.
(60/50/45 ppm)
Figure 1-5-48
(40 ppm)
Figure 1-5-49
1-5-29
2LV/2L1/2L2/2MS/2MT
Connector
Wire
holder
Wires
Connector
Main driving
motor unit
Connector
Wire
holder
Wires
Main driving
motor unit
Screw
Screw
Screw
Screw
Screw
Screw
